RFI TECHNOLOGY SOLUTIONSCBUHF
CD63-71-75

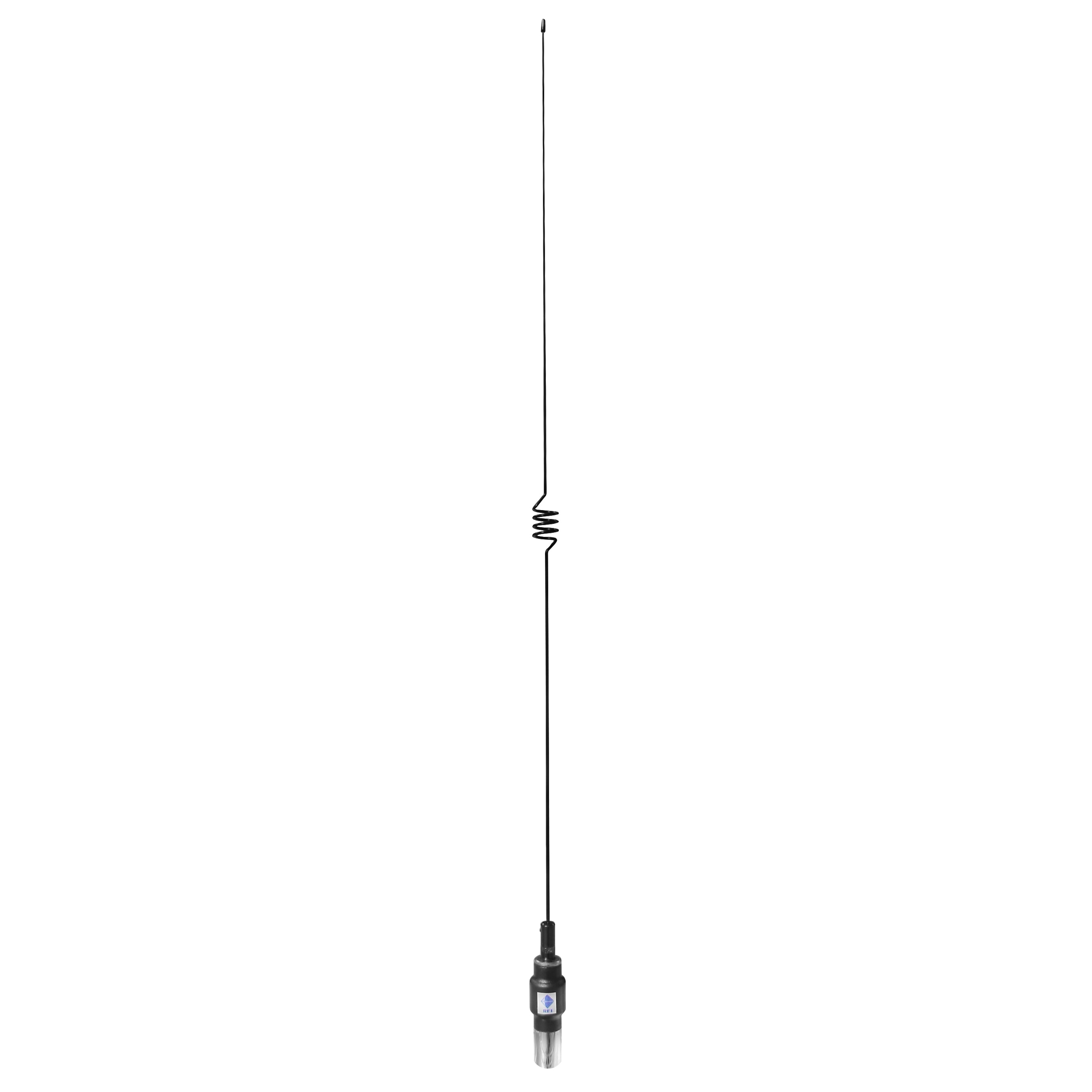

RFI CD63 UHF CB Mopole Antenna (477 MHz); Stud Mount 5m FME(F) & UHF(M) Adaptor
The CD63 Series Mopole™ antennas offer complete versatility in mounting options. Unlike conventional roof mount antennas, the CD63 Series antennas have true ground independence which allows mounting in a variety of positions including vehicle mirror, gutter or roof bar mounts. Check Out our full range of Mobile Antennas .
SPECIFICATIONS
- FREQUENCY (MHZ)
- 476 - 477
- BAND
- UHF CB
- GAIN (DBQ)
- 6
- VSWR
- <1.5:1
- POWER (W)
- 25
- POLARISATION
- Vertical
- COLOUR
- Black
- MOUNTING
- Stud Mount
- PACKAGING
- Clear hanging bag
- TUNED BANDWIDTH
- Full. No tuning required
- WHIP MATERIAL
- 17-7PH Stainless steel
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Collinears, Ground Independent
- APPLICATION
- Vehicle Antenna
- WHIP LENGTH (MM)
- 800 (whip and coil only)
- TUNING
- Supplied pre-tuned
