The RFI range, in full

1,559 part numbers in 705 series, every specification as published by the manufacturer.

705 series · 1,559 parts

BAND

BRAND

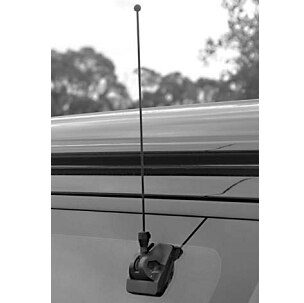

AP454-477UHF
RFI UHF CB On-Glass Antenna (477 MHz)
FREQUENCY
403 - 520 MHz
VSWR
<1.5:1
WHIP MATERIAL
Stainless steel with black high gloss finish
CONFIGURATION
SISO
ANTENNA TYPE
Collinears

CD34UHF3 VARIANTS

RFI UHF CB 4dBi Mopole Antenna

FREQUENCY: 476 - 477 MHz
BAND: 477MHz
VSWR: <1.5:1
POWER: 50 W
TUNED BANDWIDTH: Full. No tuning required

Order codes for CD34 — RFI UHF CB 4dBi Mopole Antenna
CD34-71-00	RFI UHF CB 4dBi Mopole Antenna (477 MHz)
CD34-71-53	RFI UHF CB 4dBi Mopole 477MHz Antenna
CD34-71-73	RFI UHF CB 4dBi Mopole Antenna (477 MHz)

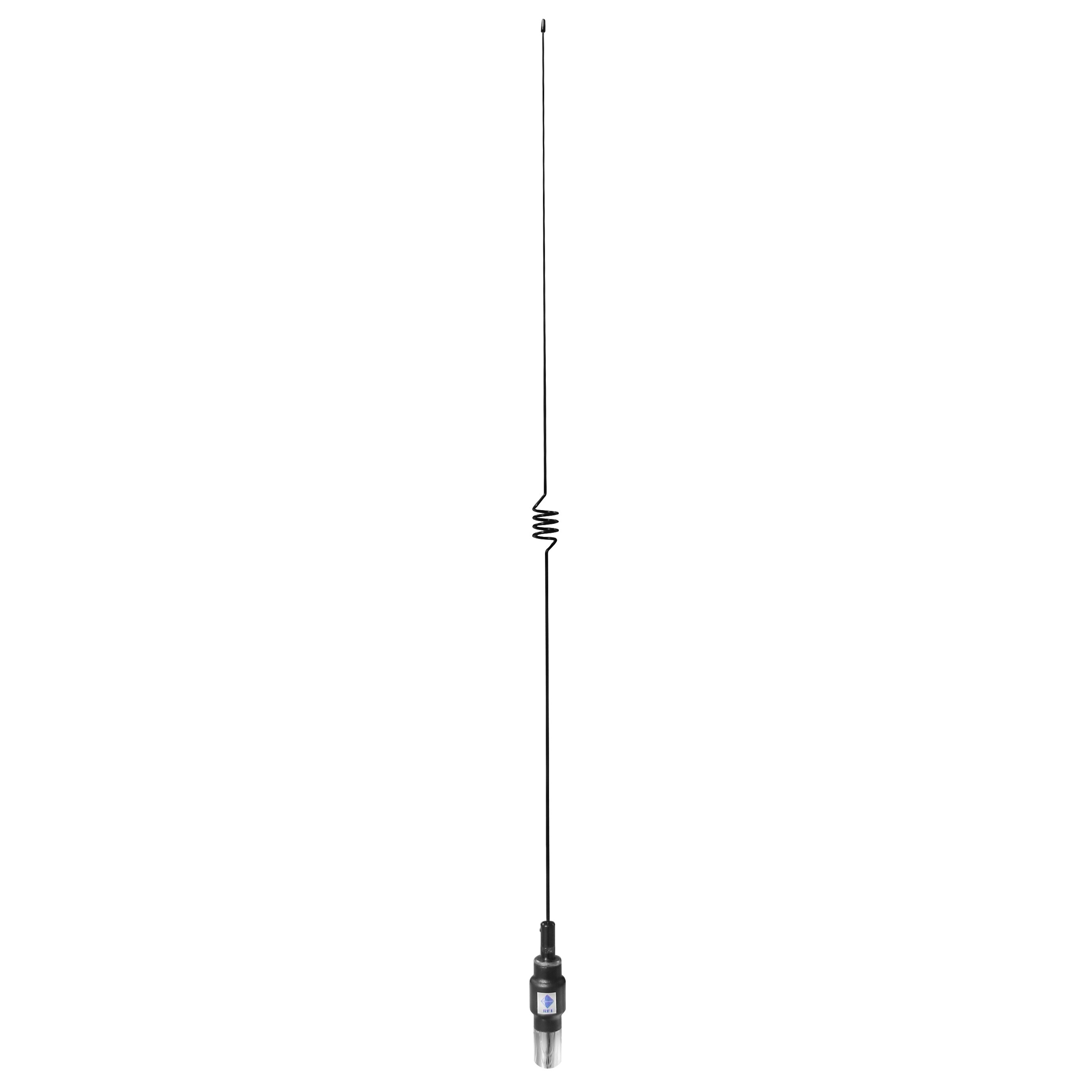

CD63UHF5 VARIANTS

RFI CD63 UHF CB Mopole Antenna (477 MHz)

ACROSS VARIANTS: 476 – 478 MHz
BAND: UHF CB
GAIN: 6 dBq
VSWR: <1.5:1
POWER: 25 W

Order codes for CD63 — RFI CD63 UHF CB Mopole Antenna (477 MHz)
CD63-71-50	MBC Base No Cable
CD63-71-53	MBC 5m No Connector
CD63-71-55	MBC Base 5m FME(F) & UHF(M) Adaptor
CD63-71-73	Stud Mount 5m No Connector
CD63-71-75	Stud Mount 5m FME(F) & UHF(M) Adaptor

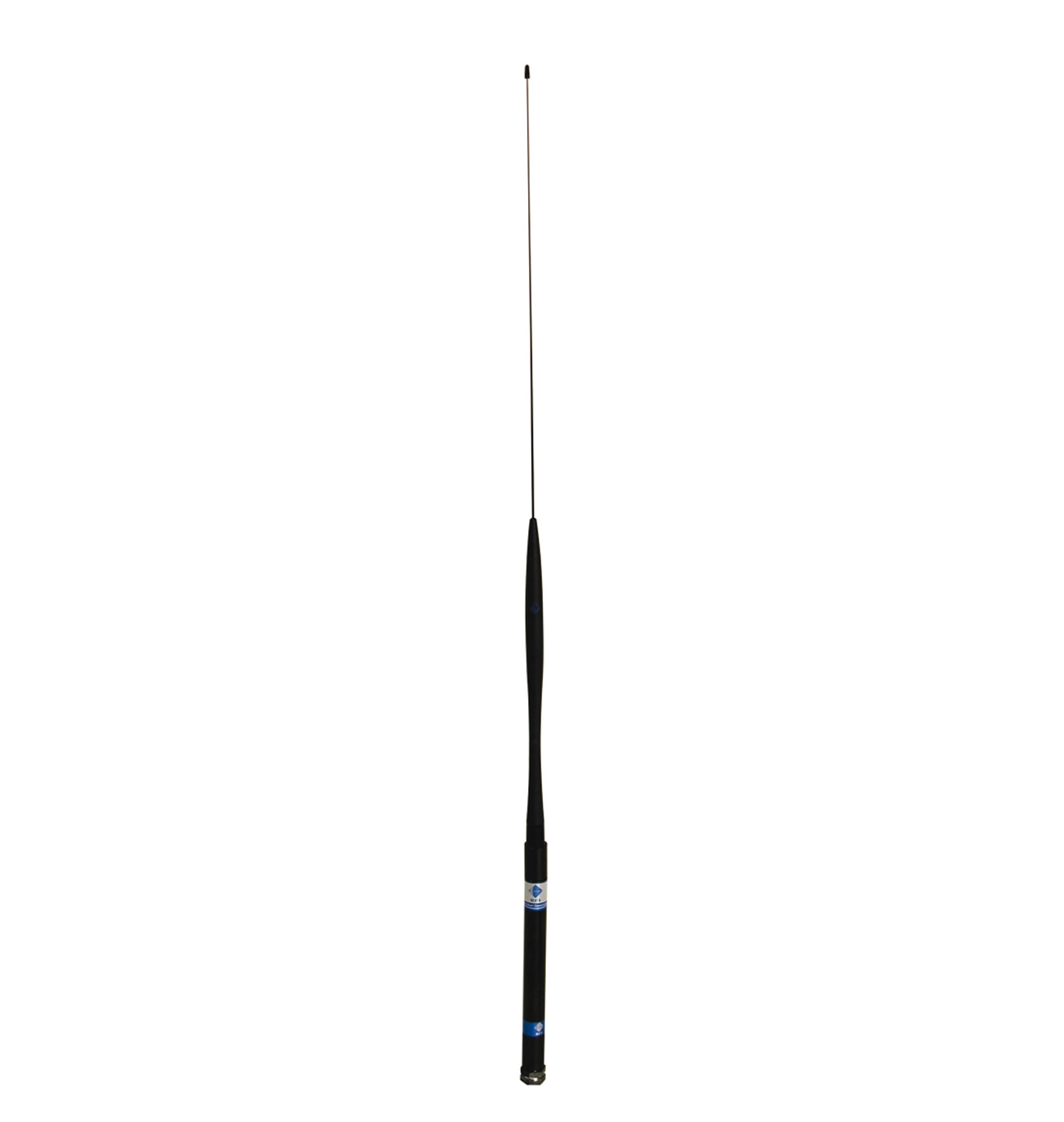

CD960-71-75UHF
RFI UHF CB 6.5dB E/Feed Mopole Antenna (470-490 MHz)
FREQUENCY
470 - 490 MHz
BAND
470-490MHz
GAIN
6.5 dBq
VSWR
<1.6:1 @ 470-490MHz & <1.25:1 @ 476-478MHz
POWER
100 W
CD961UHF2 VARIANTS
RFI UHF CB 6.5dB E/Feed Mopole Antenna
FREQUENCY
470 - 490 MHz
BAND
470-490MHz
GAIN
6.5 dBq
VSWR
<1.6:1 @ 470-490MHz & <1.25:1 @ 476-478MHz
POWER
100 W
Order codes for CD961 — RFI UHF CB 6.5dB E/Feed Mopole Antenna
CD961-71-75 RFI UHF CB 6.5dB E/Feed Mopole Antenna (470-490MHz )
CD961-71-75+SW125 RFI UHF CB 6.5dB E/Feed Mopole Antenna (470-490 MHz)
CD963UHF2 VARIANTS
RFI UHF CB 6.5dB E/Feed Mopole Antenna (470-490 MHz)
FREQUENCY
470 - 490 MHz
BAND
470-490MHz
GAIN
6.5 dBq
VSWR
<1.6:1 @ 470-490MHz & <1.25:1 @ 476-478MHz
POWER
100 W
Order codes for CD963 — RFI UHF CB 6.5dB E/Feed Mopole Antenna (470-490 MHz)
CD963-71-75 FW15-HD, 5m FME(F) & UHF(M) Adaptor
CD963-71-75+SW125 FW15-HD/SW125, 5m FME(F) & UHF(M) Adaptor

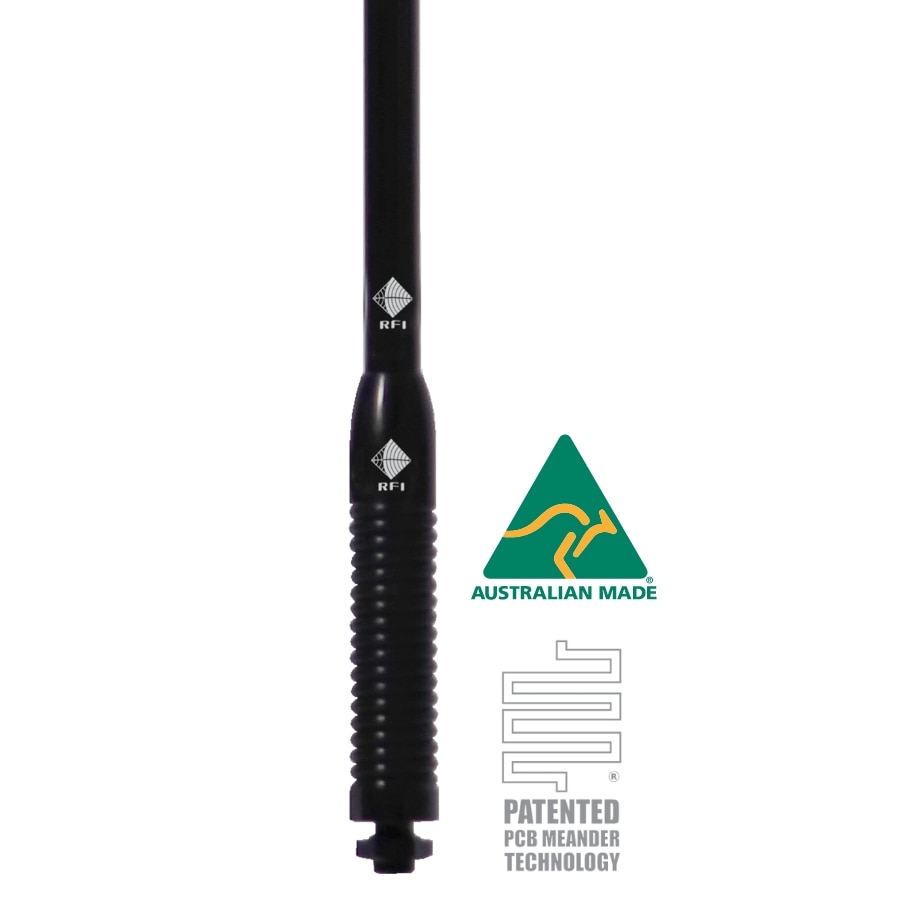

CD5000-BUHF
RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477MHz)
FREQUENCY
477 MHz
BAND
477MHz
GAIN
5 dBi
VSWR
<1.5:1
POWER
25 W

Order codes for CD961 — RFI UHF CB 6.5dB E/Feed Mopole Antenna
CD961-71-75	RFI UHF CB 6.5dB E/Feed Mopole Antenna (470-490MHz )
CD961-71-75+SW125	RFI UHF CB 6.5dB E/Feed Mopole Antenna (470-490 MHz)

Order codes for CD963 — RFI UHF CB 6.5dB E/Feed Mopole Antenna (470-490 MHz)
CD963-71-75	FW15-HD, 5m FME(F) & UHF(M) Adaptor
CD963-71-75+SW125	FW15-HD/SW125, 5m FME(F) & UHF(M) Adaptor

CDQ5 VARIANTS

RFI CDQ Spring Assembly

ANTENNA TYPE: Collinears
APPLICATION: Vehicle Antenna

Order codes for CDQ — RFI CDQ Spring Assembly
CDQ-SA-HD	RFI CDQ Heavy Duty Spring 7mm Assembly
CDQ-SA7	RFI CDQ Spring Assembly (7mm)
CDQ-SA7-B	RFI CDQ Spring Assembly (7mm)
CDQ-SA8-HD	RFI CDQ Heavy Duty Spring Assembly (8mm)
CDQ-SA8-HD-B	RFI CDQ Heavy Duty Spring Assembly (8mm)

CDQ34-71-00UHF
RFI UHF CB 4dBi Collinear 477MHz Antenna
FREQUENCY
476-478 MHz
BAND
476-478 MHz
VSWR
1.5:1
POWER
50 W
TERMINATION
Integrated N- Type (M)

CDQ3000UHF4 VARIANTS

RFI UHF CB 3dBi Collinear (477 MHz) PRO SERIES Antenna

FREQUENCY: 477 MHz
BAND: 477MHz
GAIN: 3 dBi
VSWR: <1.5:1
POWER: 25 W

Order codes for CDQ3000 — RFI UHF CB 3dBi Collinear (477 MHz) PRO SERIES Antenna
CDQ3000-B	RFI UHF CB 3dBi Collinear (477 MHz) PRO SERIES Antenna
CDQ3000-B-WHIP	RFI UHF CB 3dBi Collinear PRO SERIES Antenna (477 MHz)
CDQ3000-BL	RFI UHF CB 3dBi Collinear PRO SERIES Antenna (477 MHz)
CDQ3000-BL-WHIP	RFI UHF CB 3dBi Collinear (477 MHz) PRO SERIES Antenna Whip - Black with Long Radome

CDQ5000UHF8 VARIANTS

RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)

FREQUENCY: 477 MHz
GAIN: 5 dBi
VSWR: <1.5:1
POWER: 25 W
POLARISATION: Vertical

Order codes for CDQ5000 — RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDQ5000-B	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)

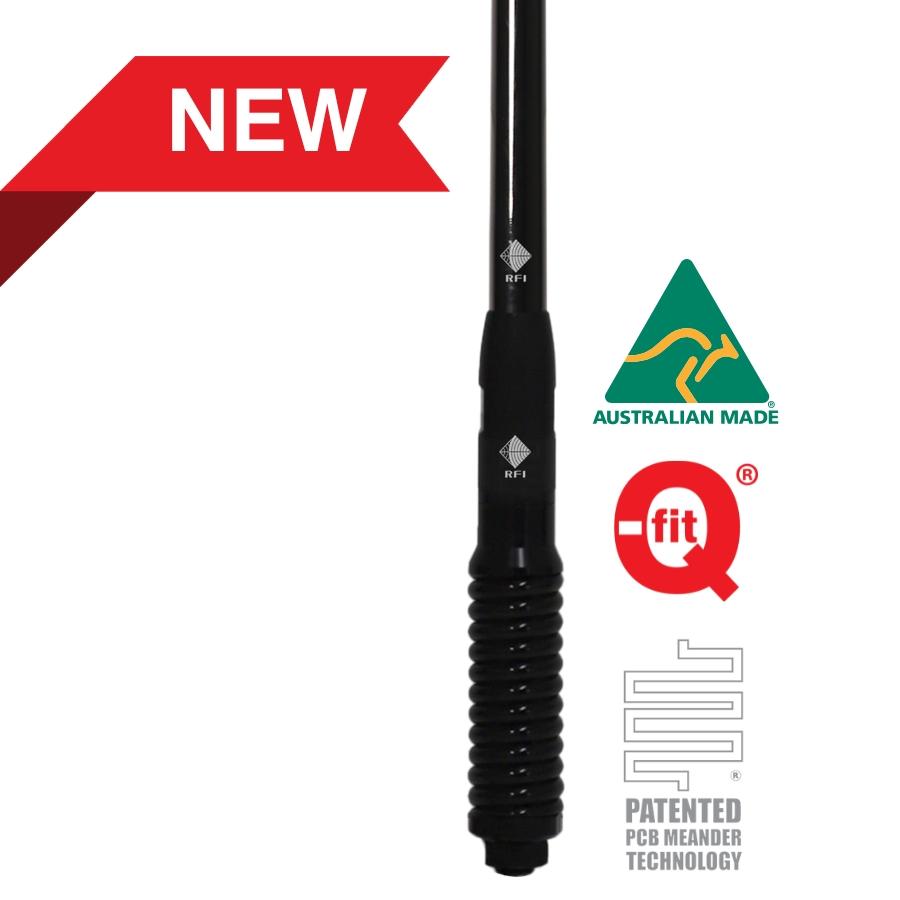

CDQ5000-B-HD	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDQ5000-B-WHIP	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDQ5000-B+CDQ34	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDQ5000-B+CDQ3000	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDQ5000-BL	RFI UHF CB 5dBi Collinear (477 MHz) PRO SERIES Antenna
CDQ5000-BL-WHIP	RFI UHF CB 5dBi 1.2m Collinear (477 MHz) PRO SERIES Antenna Whip only - Black with Long radome
CDQ5000-WB	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)

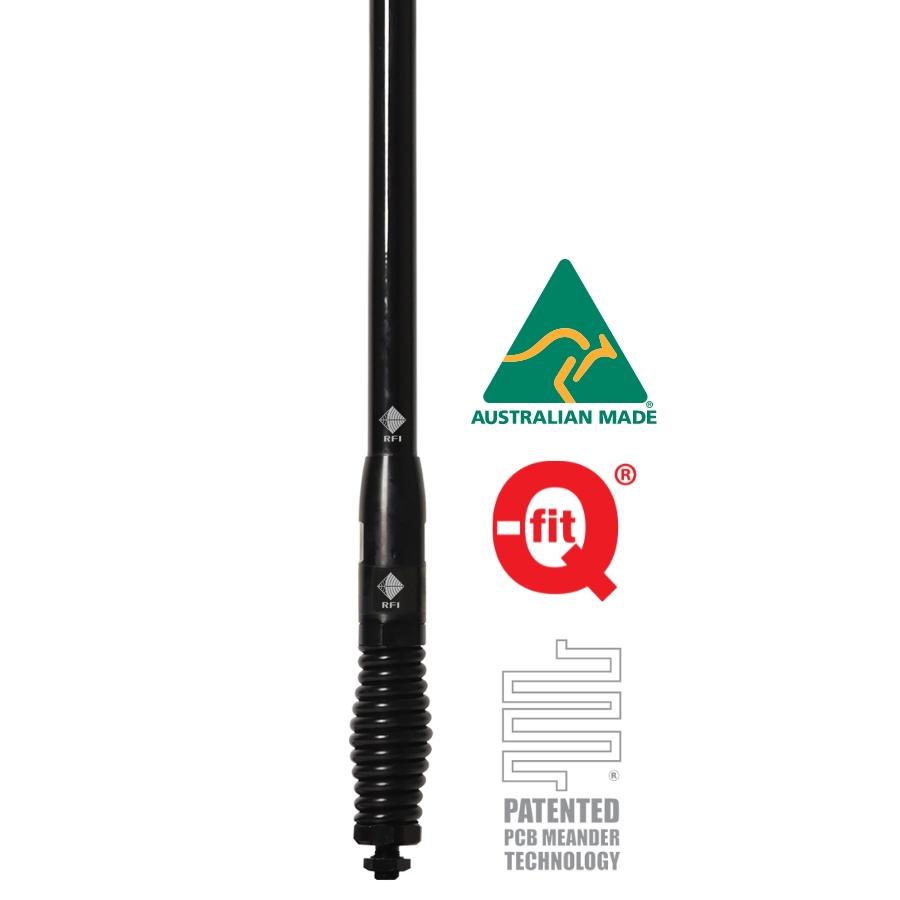

CDQ8000UHF5 VARIANTS

RFI UHF CB 8dBi Collinear PRO SERIES Antenna (477 MHz)

FREQUENCY: 477 MHz
GAIN: 8 dBi
VSWR: <1.5:1
POWER: 25 W
POLARISATION: Vertical

Order codes for CDQ8000 — RFI UHF CB 8dBi Collinear PRO SERIES Antenna (477 MHz)
CDQ8000-B	5m FME(F) & UHF(M) Adaptor - Black
CDQ8000-B-WHIP	Whip Only - Black
CDQ8000-W	5m FME(F) & UHF(M) Adaptor - White
CDQ8000-W-WHIP	Whip Only - White
CDQ8000-WB	5m FME(F) & UHF(M) Adaptor - White Radome/Black Spring

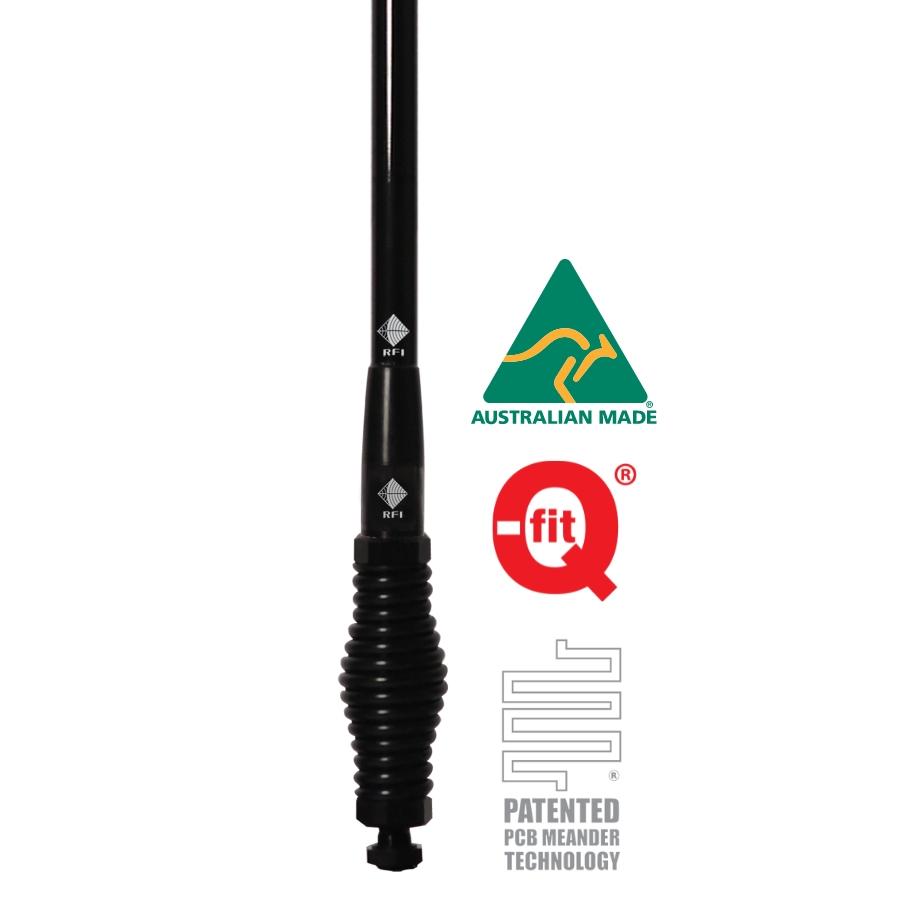

CDR5000UHF7 VARIANTS

RFI

FREQUENCY: 477 MHz
GAIN: 5 dBi
POLARISATION: Vertical
RADOME DIAMETER: 16 mm
CONFIGURATION: SISO

Order codes for CDR5000 — RFI
CDR5000-B	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDR5000-B-WHIP	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDR5000-B+CD34	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDR5000-SA-B	RFI CDR5000 Spring Assembly
CDR5000-SA-C	RFI CDR5000 Spring Assembly
CDR5000-W	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)
CDR5000-WB-WHIP	RFI UHF CB 5dBi Collinear PRO SERIES Antenna (477 MHz)

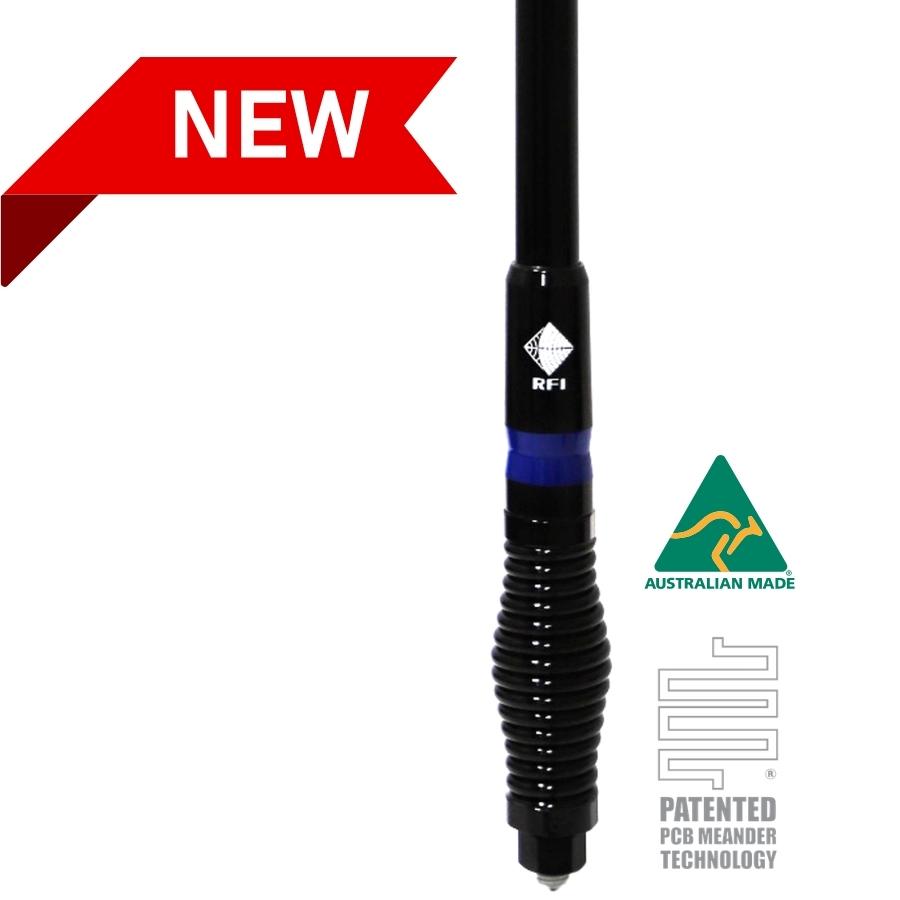

CDX3000UHF3 VARIANTS

RFI CDX-TREME UHF Compact Antenna

PRODUCT FAMILY: CD-XTREME
CONFIGURATION: SISO
APPLICATION: Vehicle Antenna

Order codes for CDX3000 — RFI CDX-TREME UHF Compact Antenna
CDX3000-B	RFI CDX-TREME UHF CB Compact Collinear Antenna (477 MHz)
CDX3000-B-WHIP	RFI CDX-TREME UHF CB Compact Collinear Antenna (477 MHz)
CDX3000-B+CDX5000	RFI CDX-TREME UHF Town and Country Pack including Compact Antenna Plus High-Gain Whip

CDX5000UHF2 VARIANTS
RFI CDX-TREME UHF CB High Gain Collinear Antenna (477 MHz)
FREQUENCY
477 MHz
BAND
477MHz
POLARISATION
Vertical
PRODUCT FAMILY
CD-XTREME
COLOUR
Black
Order codes for CDX5000 — RFI CDX-TREME UHF CB High Gain Collinear Antenna (477 MHz)
CDX5000-B 5m FME(F) UHF(A) - Black
CDX5000-B-WHIP WHIP ONLY
COL5000UHF2 VARIANTS
RFI UHF CB 5dBi Collinear Antenna (477 MHz)
FREQUENCY
477 MHz
GAIN
5 dBi
VSWR
<1.5:1
POWER
25 W
POLARISATION
Vertical
Order codes for COL5000 — RFI UHF CB 5dBi Collinear Antenna (477 MHz)
COL5000 10m FME(F) UHF(M) Adaptor
COL5000-N Integrated N(F)
COL8000-NUHF
RFI UHF 8dBi Collinear Base Station Antenna (477MHz)
FREQUENCY
477 MHz
GAIN
8 dBi
VSWR
<1.5:1
POWER
25 W
TERMINATION
N Female bulkhead connector
MSW35UHF
RFI 4.5dB UHF Moulded Phasemaster Whip (477MHz)
FREQUENCY
470 - 490 MHz
BAND
477MHz
VSWR
<1.6:1
POWER
100 W
PACKAGING
Clear hanging bag
WHIP-63-71
RFI CD63 Replacement Whip Only (477 MHz)
CONFIGURATION
SISO
ANTENNA TYPE
Collinears, Removeable Whip/Replacement Whip
APPLICATION
Vehicle Antenna
ANTUHF2 VARIANTS
RFI Antenna MHz)
ACROSS VARIANTS
617 – 5925 MHz
POLARISATION
Linear
TUNED BANDWIDTH
Full
CONFIGURATION
SISO
APPLICATION
Terminal Antenna
Order codes for ANT — RFI Antenna MHz)
ANT-5G-SMA-B RFI 5G Terminal Antenna (617-5925 MHz)
ANT-LTE-S-SMA RFI LTE Modem Antenna (698-2700 MHz)

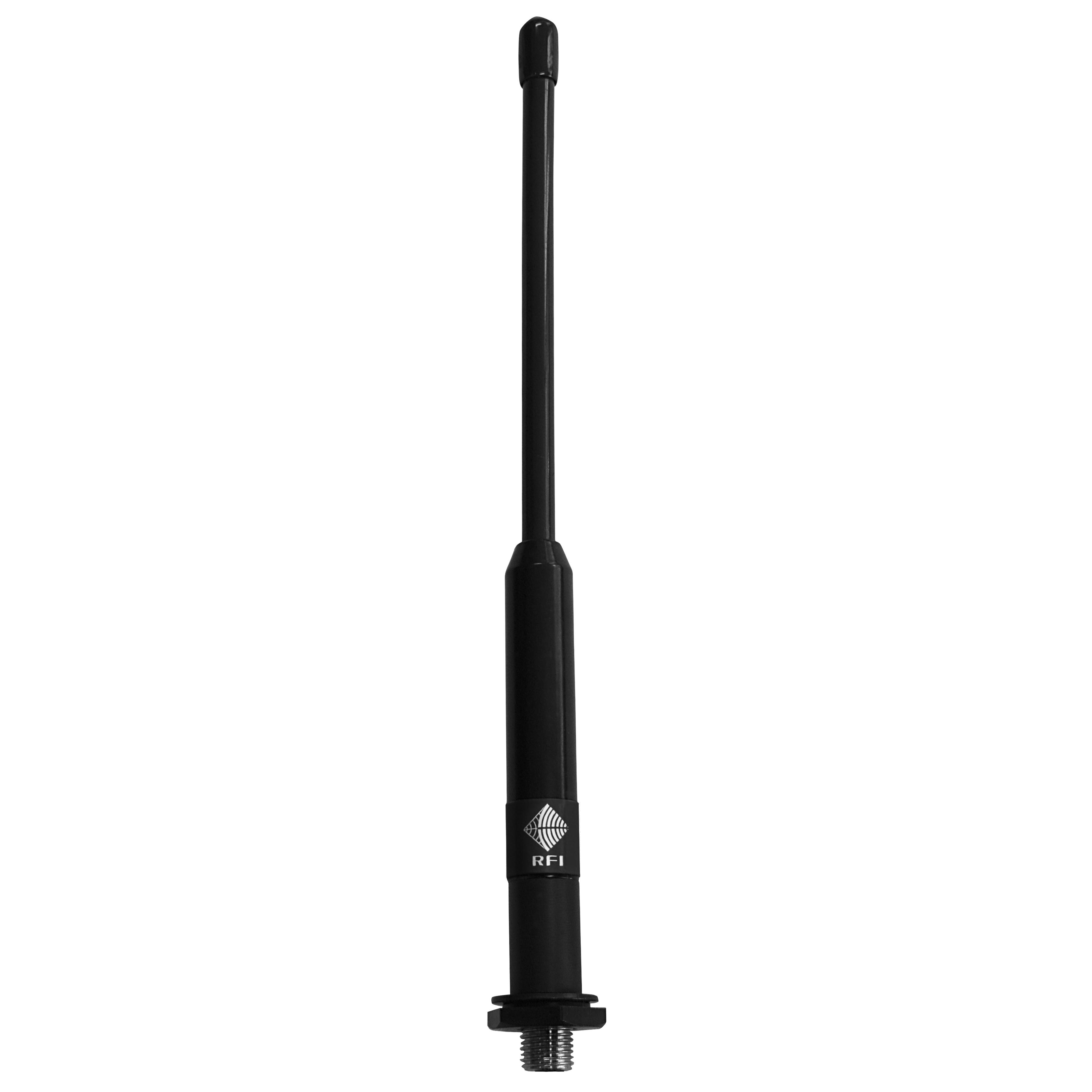

CD1140700/800
RFI 800 MHz 1.5dBi E/Feed Mopole Antenna (806-870 MHz)
FREQUENCY
806 - 870 MHz
BAND
806 - 870MHz
VSWR
<2:1
POWER
40 W
POLARISATION
Vertical

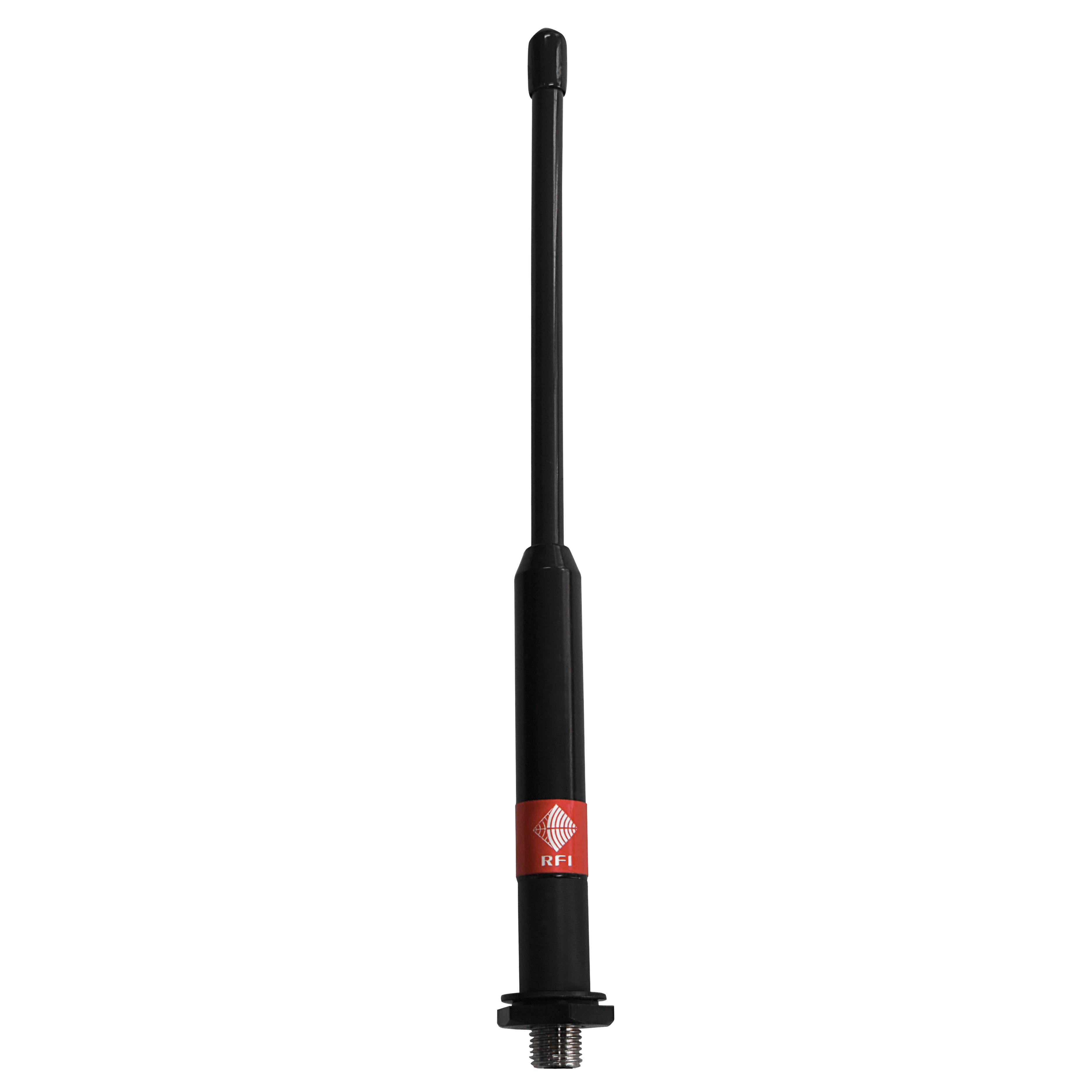

CD1150700/800
RFI 800 MHz 1.5dBi E/Feed Mopole Antenna (820-896 MHz)
FREQUENCY
820 - 896 MHz
BAND
820 - 896MHz
VSWR
<2:1
POWER
50 W
POLARISATION
Vertical

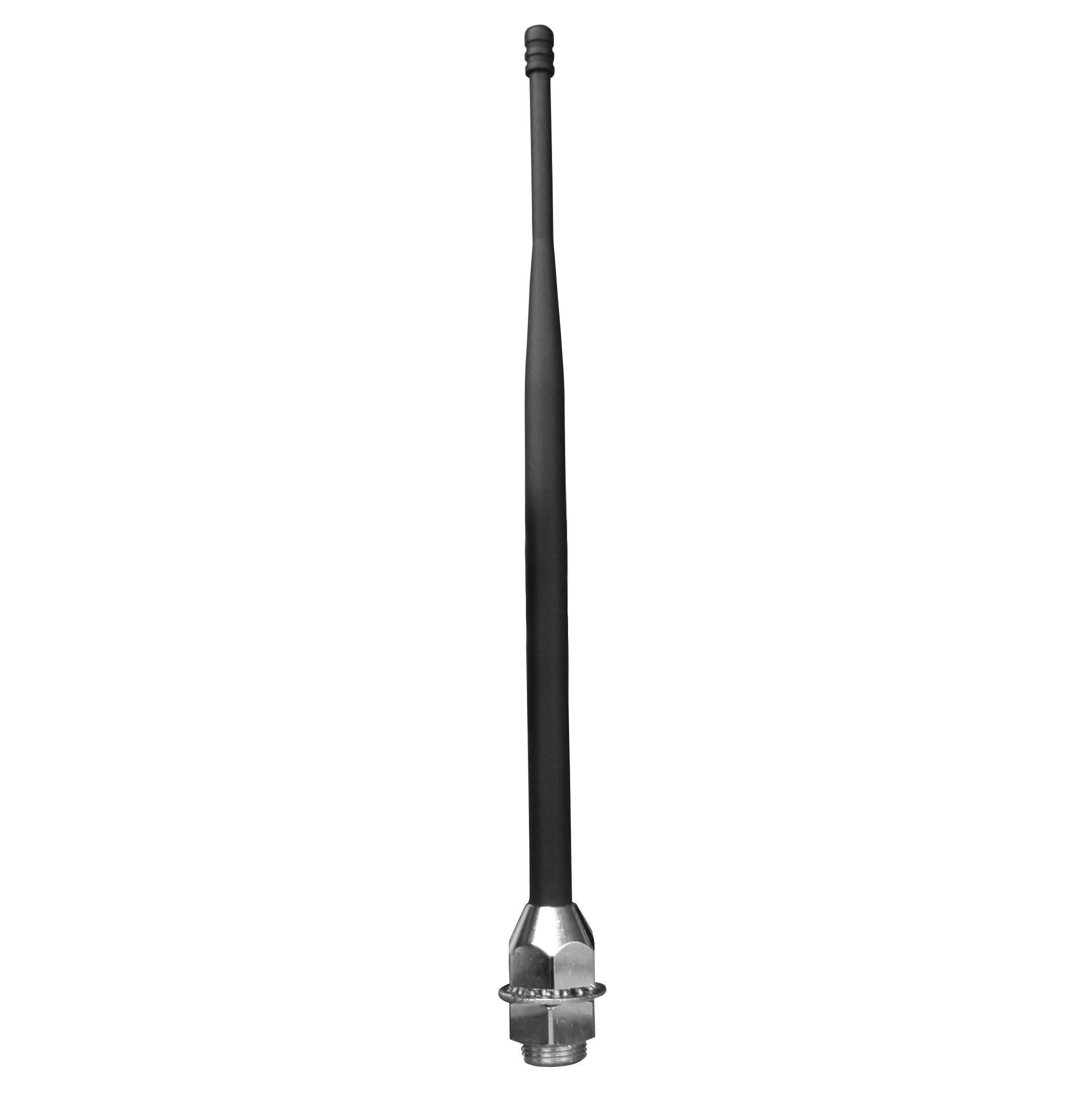

CD1169700/800
RFI 800 MHz 2.1dBi Coaxial Dipole Antenna (820-890 MHz)
FREQUENCY
820-890 MHz
BAND
820 - 890MHz
GAIN
2.1 dBi
VSWR
<2.0:1
CONNECTOR
SMA(M)
CD1210700/800
RFI 800 MHz 1.5dB E/Feed Mopole Antenna (820-896 MHz)
FREQUENCY
820 - 896 MHz
BAND
820 - 896MHz
VSWR
<1.9:1
POWER
50 W
POLARISATION
Vertical
CD1225700/800
RFI 800 MHz Unity E/Feed Mopole Antenna (824-896 MHz)
FREQUENCY
824 - 896 MHz
BAND
824 - 896MHz
VSWR
<2.0:1
POWER
50 W
POLARISATION
Vertical

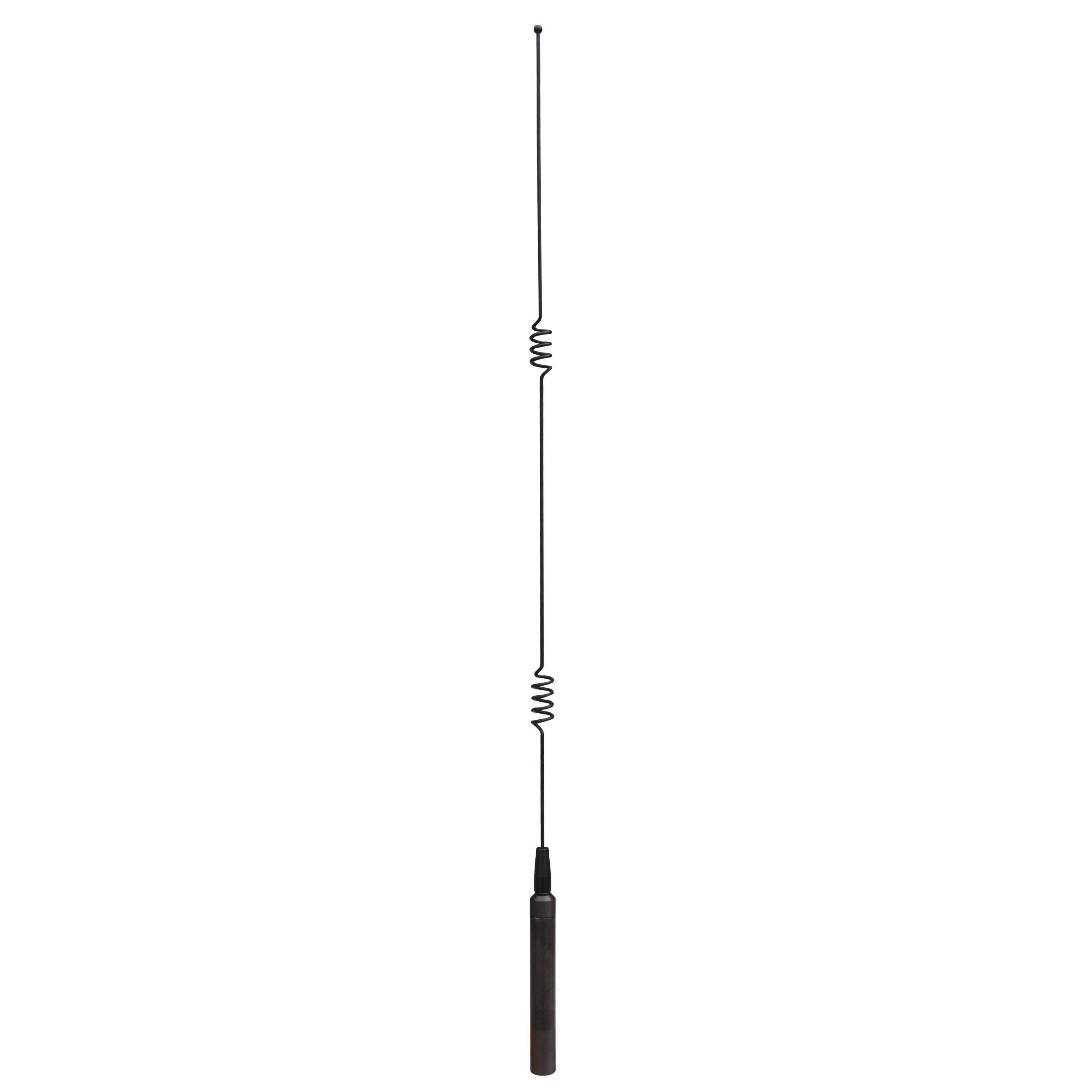

CD1250700/800
RFI 800 MHz 5dB E/Feed Mopole Antenna (824-896 MHz)
FREQUENCY
824 - 896 MHz
BAND
824 - 896MHz
VSWR
<2.0:1
POWER
50 W
POLARISATION
Vertical
CD1525700/800
RFI 800 MHz 3dB E/Feed Mopole Antenna (806-870 MHz)
FREQUENCY
824 - 896 MHz
BAND
806 - 870MHz
VSWR
>1.9:1
POWER
50 W
POLARISATION
Vertical
CD2450-7-NCELLULAR
RFI 2.4 & 5.0 GHz 7dBi WiFi Dual Band Antenna
FREQUENCY
2400-2484 / 5150-5850 MHz
BAND
WiFi
GAIN
7 dBi
VSWR
<2.5:1
TERMINATION
Integrated N Male Connector

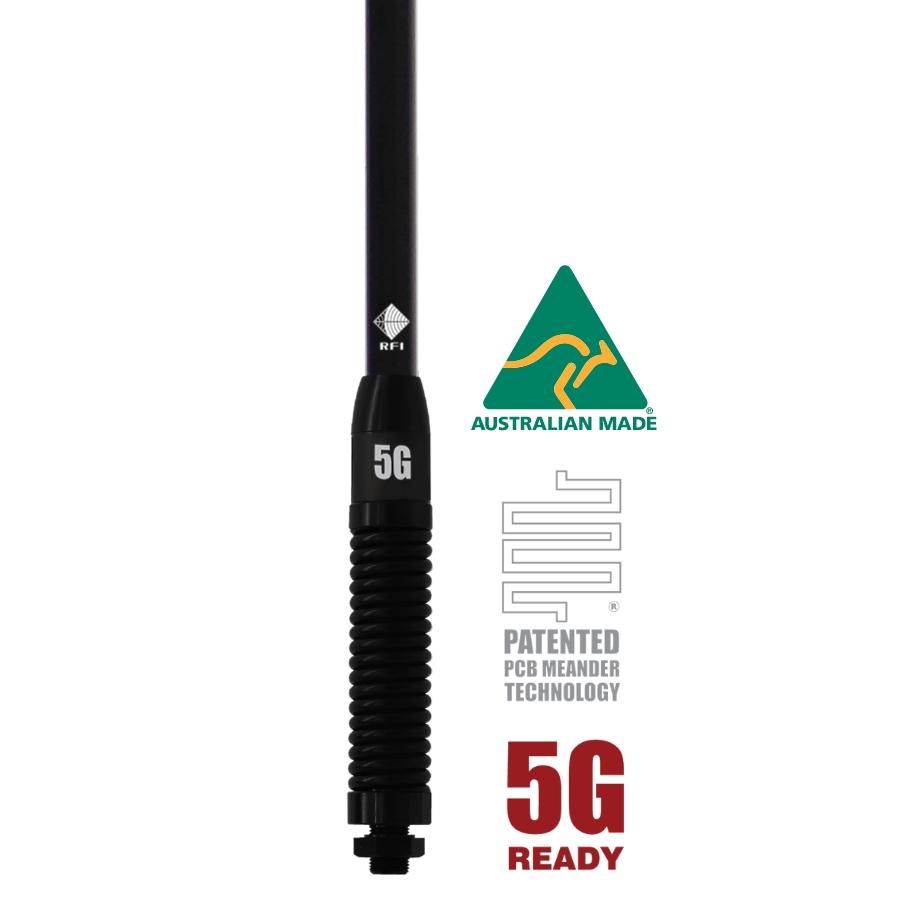

CD8194-B700/800
RFI 5G Cellular 5.5dBi PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-directional
CD8195-B700/800
RFI 5G Cellular 6.5dBi PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-Directional
CD8294700/800
RFI 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-directional

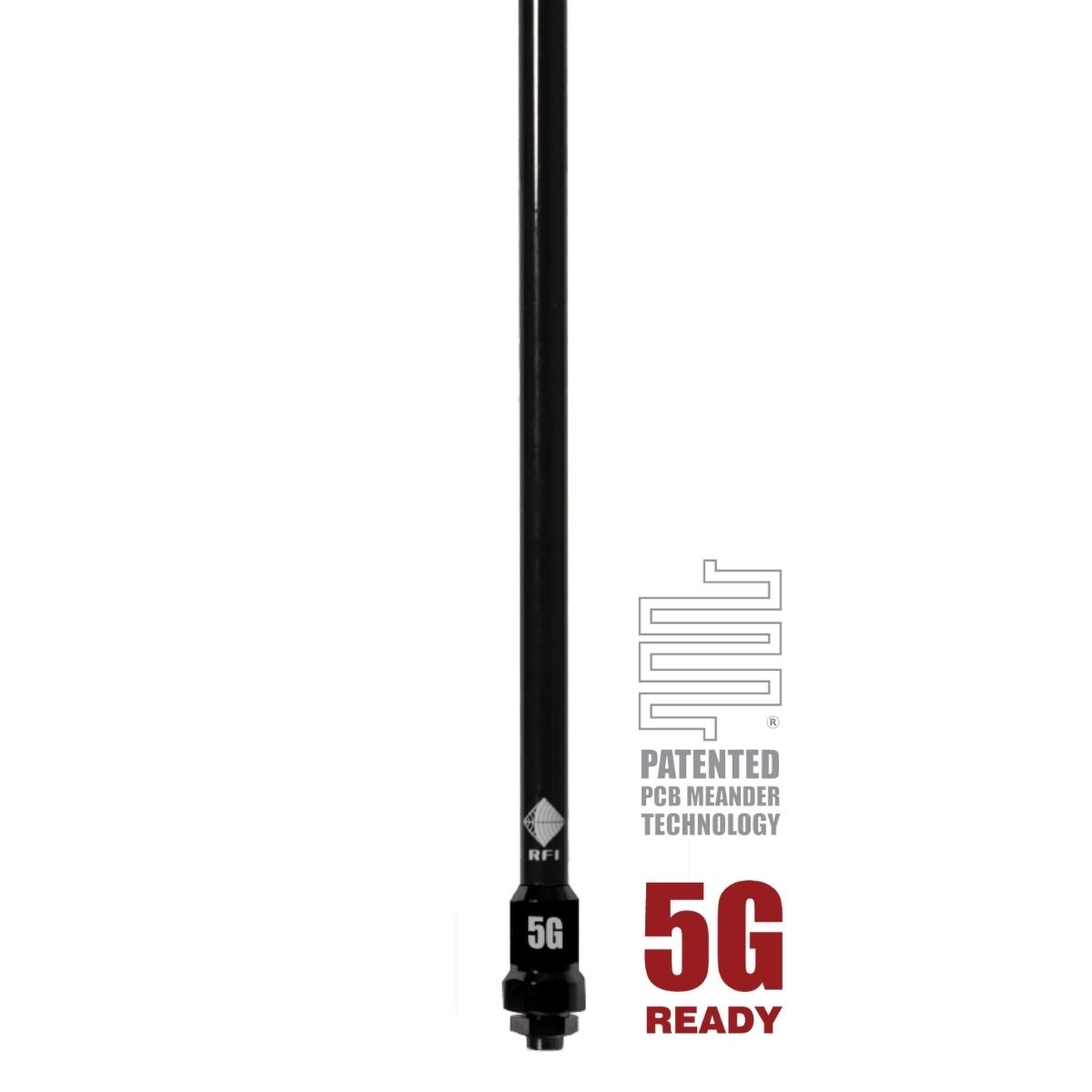

CD8295700/800
RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-directional

Order codes for CDX5000 — RFI CDX-TREME UHF CB High Gain Collinear Antenna (477 MHz)
CDX5000-B	5m FME(F) UHF(A) - Black
CDX5000-B-WHIP	WHIP ONLY

Order codes for COL5000 — RFI UHF CB 5dBi Collinear Antenna (477 MHz)
COL5000	10m FME(F) UHF(M) Adaptor
COL5000-N	Integrated N(F)

Order codes for ANT — RFI Antenna MHz)
ANT-5G-SMA-B	RFI 5G Terminal Antenna (617-5925 MHz)
ANT-LTE-S-SMA	RFI LTE Modem Antenna (698-2700 MHz)

CDQ4 VARIANTS

RFI CDQ Spring Assembly

ANTENNA TYPE: Collinears
APPLICATION: Vehicle Antenna

Order codes for CDQ — RFI CDQ Spring Assembly

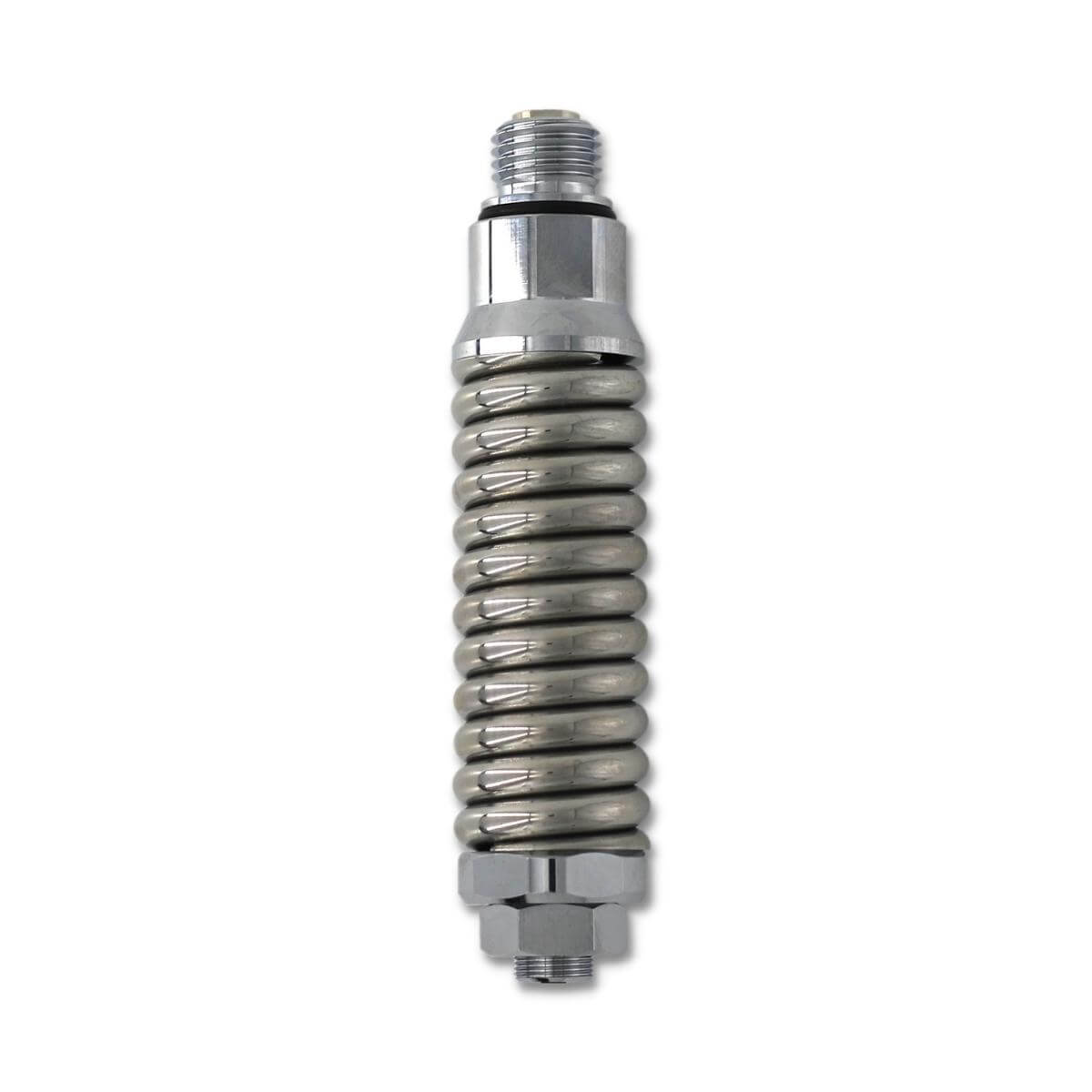

CDQ-SA-CAP	RFI CDQ Spring Assembly Top Cap
CDQ-SA7-B-SMA	RFI CDQ Spring Assembly (7mm)
CDQ-SA8-HD-B-SMA	RFI CDQ Heavy Duty Spring Assembly (8mm)
CDQ-SA8-HD-C-SMA	RFI CDQ Heavy Duty Spring Assembly (8mm)

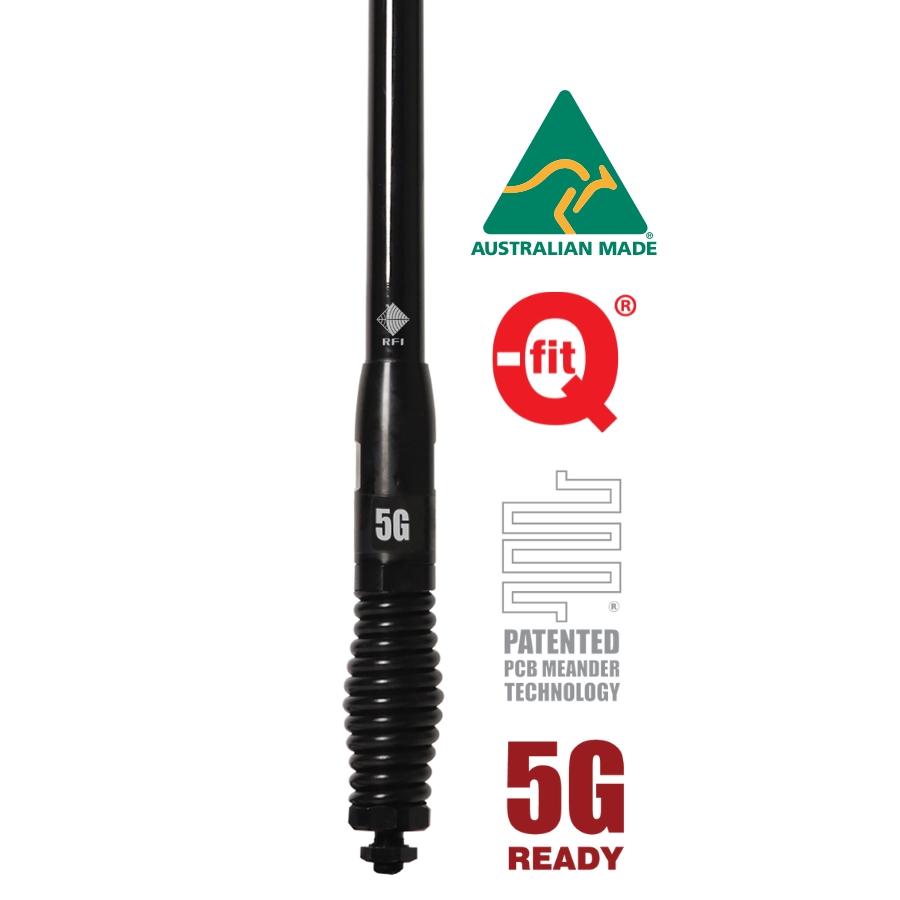

CDQ8194700/8002 VARIANTS
RFI 5G Cellular 5.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
PRODUCT FAMILY
PRO SERIES
Order codes for CDQ8194 — RFI 5G Cellular 5.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8194-B 5m SMA(M) - Black
CDQ8194-B-WHIP Whip Only - Black
CDQ8195700/8002 VARIANTS
RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
PRODUCT FAMILY
PRO SERIES
Order codes for CDQ8195 — RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8195-B 5m SMA(M) - Black
CDQ8195-B-WHIP Whip Only - Black

Order codes for CDQ8194 — RFI 5G Cellular 5.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8194-B	5m SMA(M) - Black
CDQ8194-B-WHIP	Whip Only - Black

Order codes for CDQ8195 — RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8195-B	5m SMA(M) - Black
CDQ8195-B-WHIP	Whip Only - Black

CDQ8197700/8004 VARIANTS

RFI 5G Cellular 7.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)

FREQUENCY: 698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR: <2.5:1
POWER: 10 W
POLARISATION: Vertical
PRODUCT FAMILY: PRO SERIES

Order codes for CDQ8197 — RFI 5G Cellular 7.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8197-B	5m SMA(M) - Black
CDQ8197-B-WHIP	Whip Only - Black
CDQ8197-WB	5m SMA(M) - White Radome/Black Spring
CDQ8197-WB-WHIP	Whip Only - White Radome/Black Ferrule

CDQ8199-B-WHIP700/800
RFI 5G Cellular 8.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
PRODUCT FAMILY
PRO SERIES
CDR71003 VARIANTS

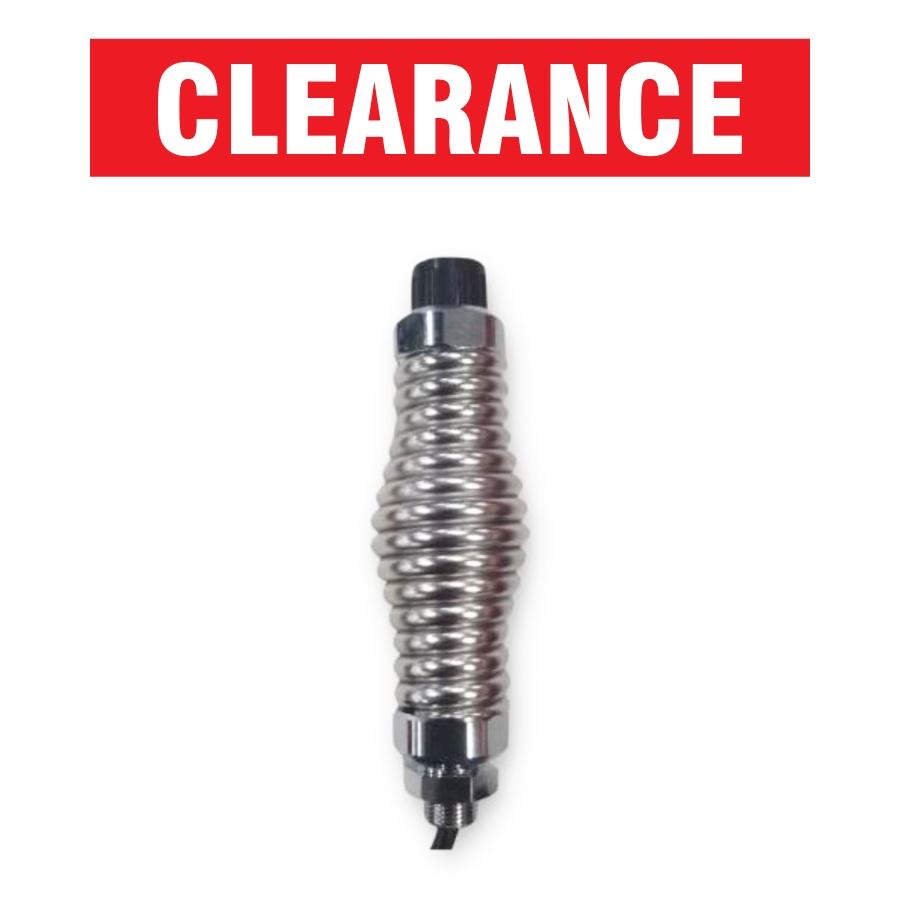

RFI CDR7100 / CDR8100 Series Spring Assembly
ANTENNA TYPE
Collinears
APPLICATION
Vehicle Antenna
Order codes for CDR7100 — RFI CDR7100 / CDR8100 Series Spring Assembly
CDR7100-SA-B-SMA 5m SMA(M) - Black
CDR7100-SA-C 5m FME(F) - Bright Chrome
CDR7100-SA-C-SMA 5m SMA(M) - Bright Chrome

Order codes for CDR7100 — RFI CDR7100 / CDR8100 Series Spring Assembly
CDR7100-SA-B-SMA	5m SMA(M) - Black
CDR7100-SA-C	5m FME(F) - Bright Chrome
CDR7100-SA-C-SMA	5m SMA(M) - Bright Chrome

CDR8194700/8002 VARIANTS

RFI 5G 5.5dBi Collinear Antenna (698-3800 MHz)

ACROSS VARIANTS: 698 – 3800 MHz
POLARISATION: Vertical
PRODUCT FAMILY: PRO SERIES
CONFIGURATION: SISO
ANTENNA TYPE: Collinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount, Vehicle

Order codes for CDR8194 — RFI 5G 5.5dBi Collinear Antenna (698-3800 MHz)
CDR8194-B	RFI Pro-Series 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz)
CDR8194-B-WHIP	RFI 5G Cellular 5.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)

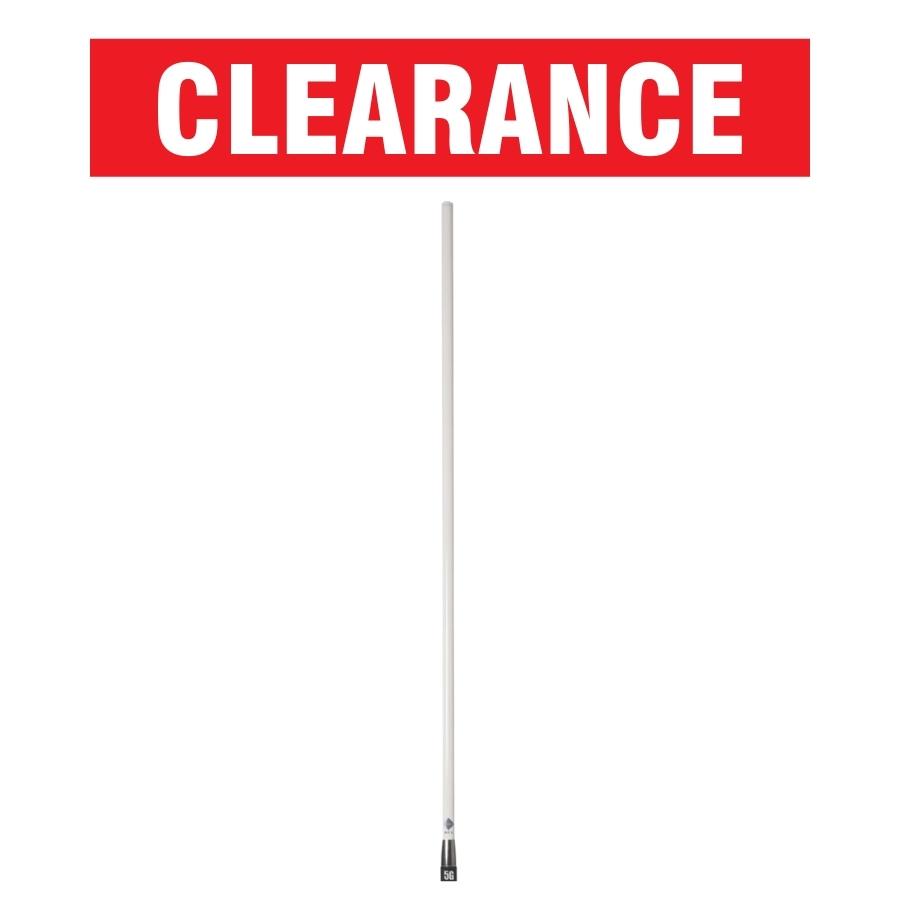

CDR8195700/8004 VARIANTS

RFI 5G 6.5dBi Collinear Antenna (698-3800 MHz)

ACROSS VARIANTS: 698 – 3800 MHz
POLARISATION: Vertical
PRODUCT FAMILY: PRO SERIES
CONFIGURATION: SISO
ANTENNA TYPE: Collinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount, Vehicle

Order codes for CDR8195 — RFI 5G 6.5dBi Collinear Antenna (698-3800 MHz)
CDR8195-B	RFI Pro-Series 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
CDR8195-B-WHIP	RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDR8195-W	RFI Pro-Series 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
CDR8195-W-WHIP	RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)

Where a figure is not shown, the manufacturer does not publish it. Confirm the datasheet revision current at the time of quotation.
