RFI TECHNOLOGY SOLUTIONSLOADS & ATTENUATORS3.3 GHz+
SP0000-7530-02

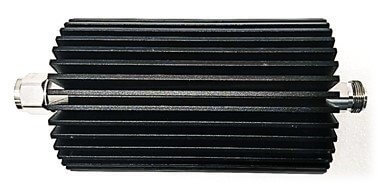

RFI Fixed 30dB Coaxial Attenuator. DC-3.0 GHz, 30W, Type-N Male to Type-N Female
RFI has a wide range of 50 Ohm RF Coaxial In-Line Attenuators in various fixed dB values, power ratings and connector types. Used primarily in multicoupling and bench test and measurement applications. The full range of in-line attenuators are air cooled through natural convection with conservative power to heatsink surface area power density factors.
SPECIFICATION — AS PUBLISHED BY THE MANUFACTURER
- FREQUENCY RANGE
- DC - 3000
- CONNECTOR
- N(m/f)
- FINISH
- Painted Black
- ATTENUATION
- 30dB
- COMPONENT TYPE
- Attenuator
- OPERATING TEMPERATURE
- -20° to +65° C/ -4° to +149° F
- DIMENSIONS
- L 168.2 x Dia 50mm
- MAX POWER RATING
- 30W
