SP0000-7615-02

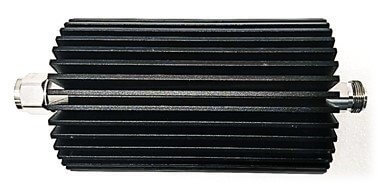

RFI Fixed 15dB Coaxial Attenuator. DC-2.5 GHz, 50W, Type-N Male to Type-N Female
RFI has a wide range of 50 Ohm RF Coaxial In-Line Attenuators in various fixed dB values, power ratings and connector types. Used primarily in multicoupling and bench test and measurement applications. The full range of in-line attenuators are air cooled through natural convection with conservative power to heatsink surface area power density factors.
SPECIFICATIONS
- FREQUENCY RANGE
- DC - 2500
- CONNECTOR
- N(m/f)
- COMPONENT TYPE
- Attenuator
- OPERATING TEMPERATURE
- -40° C to +50° C / -40° F to +122° F
- DIMENSIONS
- L 168.2 x Dia 75mm / L 6.62” x Dia 2.95”
