ANTENNAS — 115 PRODUCTS

Cellular

56 series · 115 parts

BAND

ANTUHF2 VARIANTS
RFI Antenna MHz)
ACROSS VARIANTS
617 – 5925 MHz
POLARISATION
Linear
TUNED BANDWIDTH
Full
CONFIGURATION
SISO
APPLICATION
Terminal Antenna
Order codes for ANT — RFI Antenna MHz)
ANT-5G-SMA-B RFI 5G Terminal Antenna (617-5925 MHz)
ANT-LTE-S-SMA RFI LTE Modem Antenna (698-2700 MHz)
CD1140700/800
RFI 800 MHz 1.5dBi E/Feed Mopole Antenna (806-870 MHz)
FREQUENCY
806 - 870 MHz
BAND
806 - 870MHz
VSWR
<2:1
POWER
40 W
POLARISATION
Vertical
CD1150700/800
RFI 800 MHz 1.5dBi E/Feed Mopole Antenna (820-896 MHz)
FREQUENCY
820 - 896 MHz
BAND
820 - 896MHz
VSWR
<2:1
POWER
50 W
POLARISATION
Vertical
CD1169700/800
RFI 800 MHz 2.1dBi Coaxial Dipole Antenna (820-890 MHz)
FREQUENCY
820-890 MHz
BAND
820 - 890MHz
GAIN
2.1 dBi
VSWR
<2.0:1
CONNECTOR
SMA(M)
CD1210700/800
RFI 800 MHz 1.5dB E/Feed Mopole Antenna (820-896 MHz)
FREQUENCY
820 - 896 MHz
BAND
820 - 896MHz
VSWR
<1.9:1
POWER
50 W
POLARISATION
Vertical
CD1225700/800
RFI 800 MHz Unity E/Feed Mopole Antenna (824-896 MHz)
FREQUENCY
824 - 896 MHz
BAND
824 - 896MHz
VSWR
<2.0:1
POWER
50 W
POLARISATION
Vertical
CD1250700/800
RFI 800 MHz 5dB E/Feed Mopole Antenna (824-896 MHz)
FREQUENCY
824 - 896 MHz
BAND
824 - 896MHz
VSWR
<2.0:1
POWER
50 W
POLARISATION
Vertical
CD1525700/800
RFI 800 MHz 3dB E/Feed Mopole Antenna (806-870 MHz)
FREQUENCY
824 - 896 MHz
BAND
806 - 870MHz
VSWR
>1.9:1
POWER
50 W
POLARISATION
Vertical
CD2450-7-NCELLULAR
RFI 2.4 & 5.0 GHz 7dBi WiFi Dual Band Antenna
FREQUENCY
2400-2484 / 5150-5850 MHz
BAND
WiFi
GAIN
7 dBi
VSWR
<2.5:1
TERMINATION
Integrated N Male Connector
CD8194-B700/800
RFI 5G Cellular 5.5dBi PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-directional
CD8195-B700/800
RFI 5G Cellular 6.5dBi PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-Directional
CD8294700/800
RFI 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-directional
CD8295700/800
RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-directional

Order codes for ANT — RFI Antenna MHz)
ANT-5G-SMA-B	RFI 5G Terminal Antenna (617-5925 MHz)
ANT-LTE-S-SMA	RFI LTE Modem Antenna (698-2700 MHz)

CDQ4 VARIANTS

RFI CDQ Spring Assembly

ANTENNA TYPE: Collinears
APPLICATION: Vehicle Antenna

Order codes for CDQ — RFI CDQ Spring Assembly
CDQ-SA-CAP	RFI CDQ Spring Assembly Top Cap
CDQ-SA7-B-SMA	RFI CDQ Spring Assembly (7mm)
CDQ-SA8-HD-B-SMA	RFI CDQ Heavy Duty Spring Assembly (8mm)
CDQ-SA8-HD-C-SMA	RFI CDQ Heavy Duty Spring Assembly (8mm)

CDQ8194700/8002 VARIANTS
RFI 5G Cellular 5.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
PRODUCT FAMILY
PRO SERIES
Order codes for CDQ8194 — RFI 5G Cellular 5.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8194-B 5m SMA(M) - Black
CDQ8194-B-WHIP Whip Only - Black
CDQ8195700/8002 VARIANTS
RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
PRODUCT FAMILY
PRO SERIES
Order codes for CDQ8195 — RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8195-B 5m SMA(M) - Black
CDQ8195-B-WHIP Whip Only - Black

Order codes for CDQ8194 — RFI 5G Cellular 5.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8194-B	5m SMA(M) - Black
CDQ8194-B-WHIP	Whip Only - Black

Order codes for CDQ8195 — RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8195-B	5m SMA(M) - Black
CDQ8195-B-WHIP	Whip Only - Black

CDQ8197700/8004 VARIANTS

RFI 5G Cellular 7.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)

FREQUENCY: 698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR: <2.5:1
POWER: 10 W
POLARISATION: Vertical
PRODUCT FAMILY: PRO SERIES

Order codes for CDQ8197 — RFI 5G Cellular 7.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDQ8197-B	5m SMA(M) - Black
CDQ8197-B-WHIP	Whip Only - Black
CDQ8197-WB	5m SMA(M) - White Radome/Black Spring
CDQ8197-WB-WHIP	Whip Only - White Radome/Black Ferrule

CDQ8199-B-WHIP700/800
RFI 5G Cellular 8.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
PRODUCT FAMILY
PRO SERIES
CDR71003 VARIANTS
RFI CDR7100 / CDR8100 Series Spring Assembly
ANTENNA TYPE
Collinears
APPLICATION
Vehicle Antenna
Order codes for CDR7100 — RFI CDR7100 / CDR8100 Series Spring Assembly
CDR7100-SA-B-SMA 5m SMA(M) - Black
CDR7100-SA-C 5m FME(F) - Bright Chrome
CDR7100-SA-C-SMA 5m SMA(M) - Bright Chrome

Order codes for CDR7100 — RFI CDR7100 / CDR8100 Series Spring Assembly
CDR7100-SA-B-SMA	5m SMA(M) - Black
CDR7100-SA-C	5m FME(F) - Bright Chrome
CDR7100-SA-C-SMA	5m SMA(M) - Bright Chrome

CDR8194700/8002 VARIANTS

RFI 5G 5.5dBi Collinear Antenna (698-3800 MHz)

ACROSS VARIANTS: 698 – 3800 MHz
POLARISATION: Vertical
PRODUCT FAMILY: PRO SERIES
CONFIGURATION: SISO
ANTENNA TYPE: Collinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount, Vehicle

Order codes for CDR8194 — RFI 5G 5.5dBi Collinear Antenna (698-3800 MHz)
CDR8194-B	RFI Pro-Series 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz)
CDR8194-B-WHIP	RFI 5G Cellular 5.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)

CDR8195700/8004 VARIANTS

RFI 5G 6.5dBi Collinear Antenna (698-3800 MHz)

ACROSS VARIANTS: 698 – 3800 MHz
POLARISATION: Vertical
PRODUCT FAMILY: PRO SERIES
CONFIGURATION: SISO
ANTENNA TYPE: Collinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount, Vehicle

Order codes for CDR8195 — RFI 5G 6.5dBi Collinear Antenna (698-3800 MHz)
CDR8195-B	RFI Pro-Series 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
CDR8195-B-WHIP	RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)
CDR8195-W	RFI Pro-Series 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
CDR8195-W-WHIP	RFI 5G Cellular 6.5dBi Collinear PRO SERIES Antenna (698-3800 MHz)

CDX8194700/8003 VARIANTS

RFI CDX-TREME Cellular Compact Antenna

ACROSS VARIANTS: 698 – 3800 MHz
PRODUCT FAMILY: CD-XTREME
COLOUR: Black
CONFIGURATION: SISO
APPLICATION: Vehicle Antenna

Order codes for CDX8194 — RFI CDX-TREME Cellular Compact Antenna
CDX8194-B	RFI CDX-TREME Cellular Compact Collinear Antenna (698-3800 MHz), 5m SMA(M) - Black
CDX8194-B-WHIP	RFI CDX-TREME Cellular Compact Collinear Antenna (698-3800 MHz), WHIP ONLY - Black

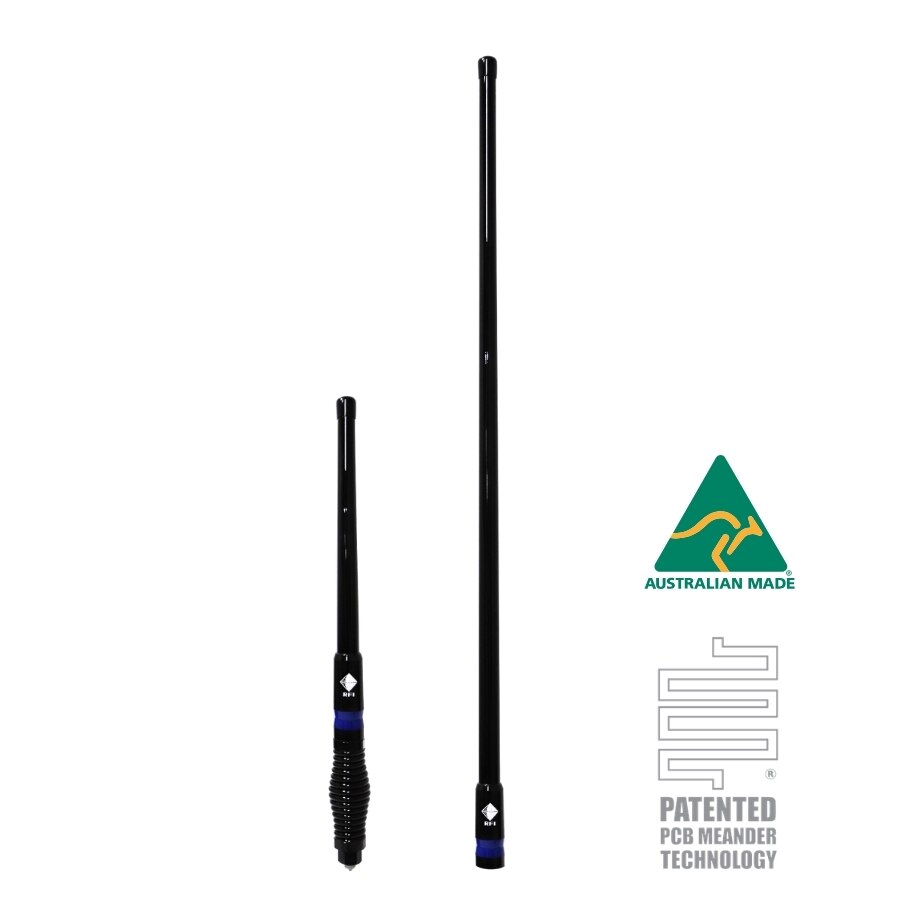

CDX8194-B+CDX8197	RFI CDX-TREME Cellular Town and Country Pack including Compact Antenna Plus High-Gain Whip

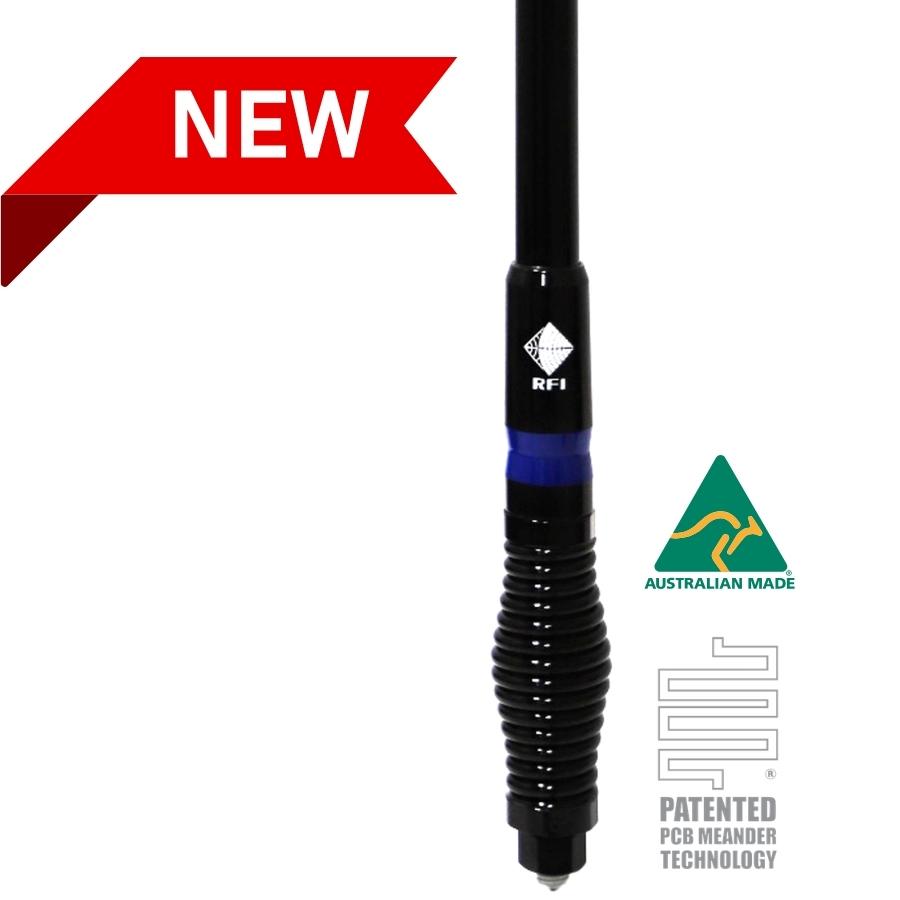

CDX8197700/8002 VARIANTS

RFI CDX-TREME Cellular High Gain Collinear Antenna (698-3800 MHz), - Black

FREQUENCY: 698-960 / 1710 / 2170 / 2300-2700 / 3400-3800 MHz
VSWR: <2.5:1
POWER: 10 W
POLARISATION: Vertical
HORIZONTAL BEAMWIDTH: Omni-directional

Order codes for CDX8197 — RFI CDX-TREME Cellular High Gain Collinear Antenna (698-3800 MHz), - Black
CDX8197-B	RFI CDX-TREME Cellular High Gain Collinear Antenna (698-3800 MHz), 5m SMA(M) - Black
CDX8197-B-WHIP	RFI CDX-TREME Cellular High Gain Collinear Antenna (698-3800 MHz), WHIP ONLY - Black

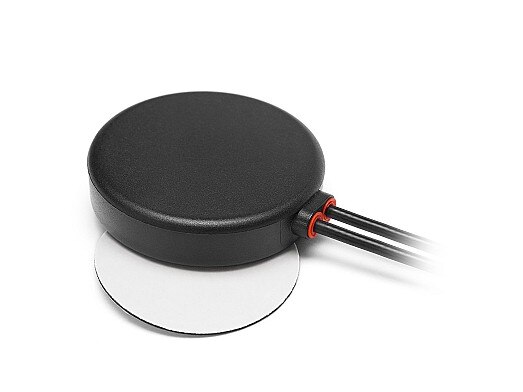

CMHP900-GPS-3M-FS700/800
RFI 3G/GPS Mini Puck Antenna (824-2400 MHz)
FREQUENCY
824-2400 MHz
GAIN
1.2 / 1.3 dBi
VSWR
<1.9:1 / <2.1:1
POWER
25 W
CONFIGURATION
SISO
COL3508-38003.3 GHz+
RFI 9dBi CBRS Meander Collinear Omni Antenna (3550-3800 MHz)
FREQUENCY
3550-3800 MHz
VSWR
<1.8:1
POWER
10 W
TERMINATION
N Female bulkhead connector
POLARISATION
Vertical

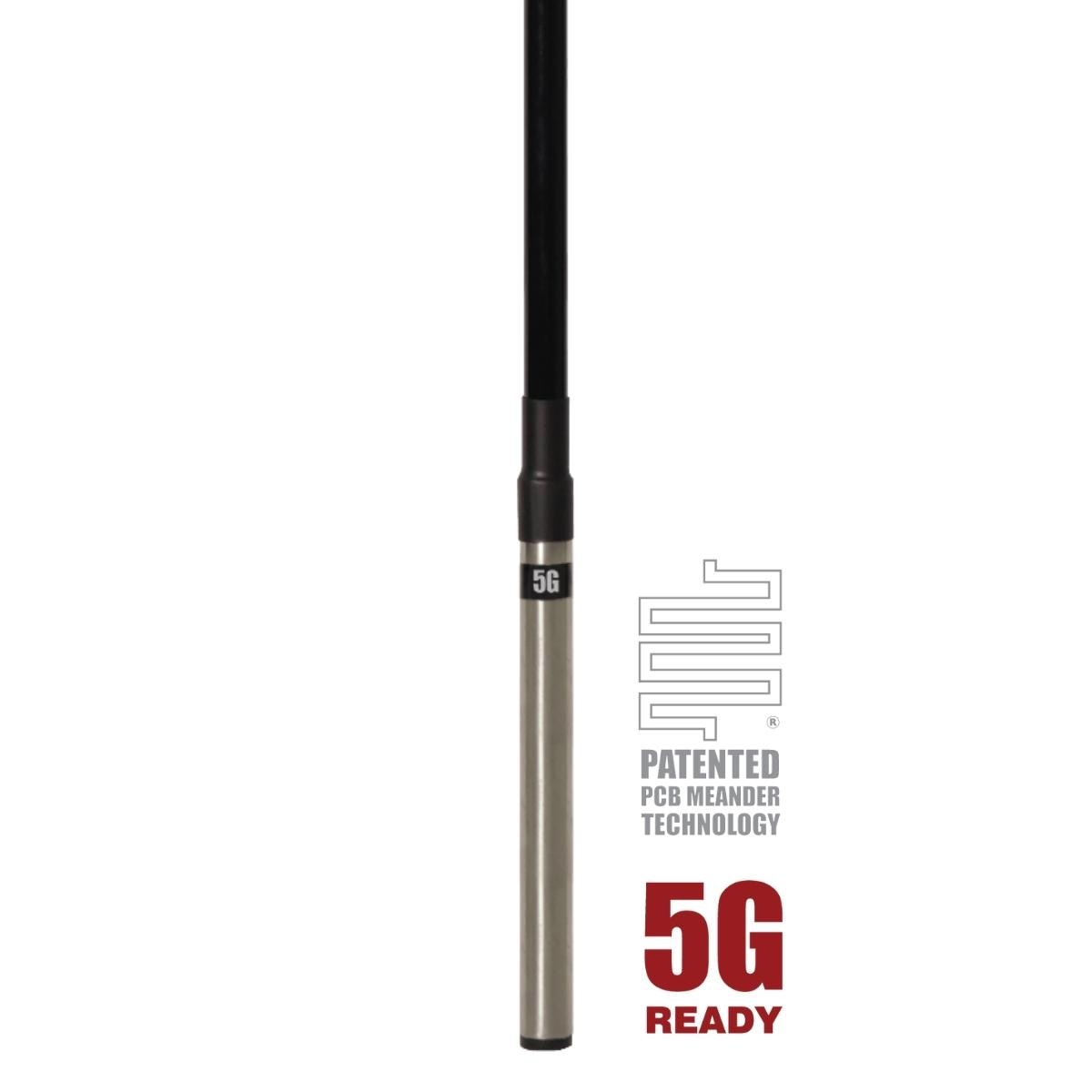

COL8195700/8002 VARIANTS
RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-directional
Order codes for COL8195 — RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
COL8195 10m SMA(M) - Black
COL8195-5M-N 5m N(M) - Black
COL8199700/800
RFI 5G LTE 8.5dBi Collinear Antenna (698-3800 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
VSWR
<2.5:1
POWER
10 W
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni-directional
CPL6938-10M-N-SMA700/800
RFI 5G LTE SISO Directional Panel Antenna. 698-3800 MHz, 0.3m tail, Type-N(F). Includes 10.0m extension cable Type-N(M) to SMA(M)
FREQUENCY
698-960 / 1710-2700 / 3500-3800 MHz
VSWR
<2:1
POWER
25 W
CONNECTOR
N(F), SMA(M)
POLARISATION
Vertical

Order codes for COL8195 — RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)
COL8195	10m SMA(M) - Black
COL8195-5M-N	5m N(M) - Black

CSM550UHF5 VARIANTS

RFI 5GRN Ultra Compact Antenna (617-5925 MHz)

FREQUENCY: 617-5925 MHz
BAND: 698-960 MHz / 1710-2170 MHz / 2500-2700
GAIN: 2.9 / 2.1 / 0.5 / -1 dBi
VSWR: <2.5:1
POWER: 25 W

Order codes for CSM550 — RFI 5GRN Ultra Compact Antenna (617-5925 MHz)
CSM550-1.5M-FME	1.5m LL100 FME(F)
CSM550-1.5M-SMA	1.5m LL100 SMA(M)
CSM550-5M-N	5m LL100 N(M)
CSM550-5M-NC	5m LL100 No Connector
CSM550-5M-SMA	5m LL100 SMA(M)

CSM600-MAG-4M-SMA700/800
RFI LTE Magnetic Base Antenna (698-2700 MHz)
FREQUENCY
698-960 / 1710-2170 / 2300-2700 / 3500-3800 MHz
BAND
LTE
GAIN
2.5 / 3.3 / 4.6 dBi
VSWR
<2.5:1
POWER
10 W

CSM700700/8007 VARIANTS

RFI 5G LTE Compact Antenna (698-3800 MHz)

ACROSS VARIANTS: 698 – 3800 MHz
GAIN: 2 / 3.5 / 5 / 5 dBi
VSWR: <2.0:1
CONFIGURATION: SISO
ANTENNA TYPE: Low Profile, Omni-Directional SISO

Order codes for CSM700 — RFI 5G LTE Compact Antenna (698-3800 MHz)
CSM700-1.25M-FME	1.25m FME(F)
CSM700-1.25M-SMA	1.25m SMA(M)
CSM700-2M-SMA	2.0m SMA(M)
CSM700-5M-NC	5m No Connector
CSM700-5M-SMA	5m SMA(M)
CSM700-7M-NC	7m No Connector
CSM700-N	Integrated N(F)

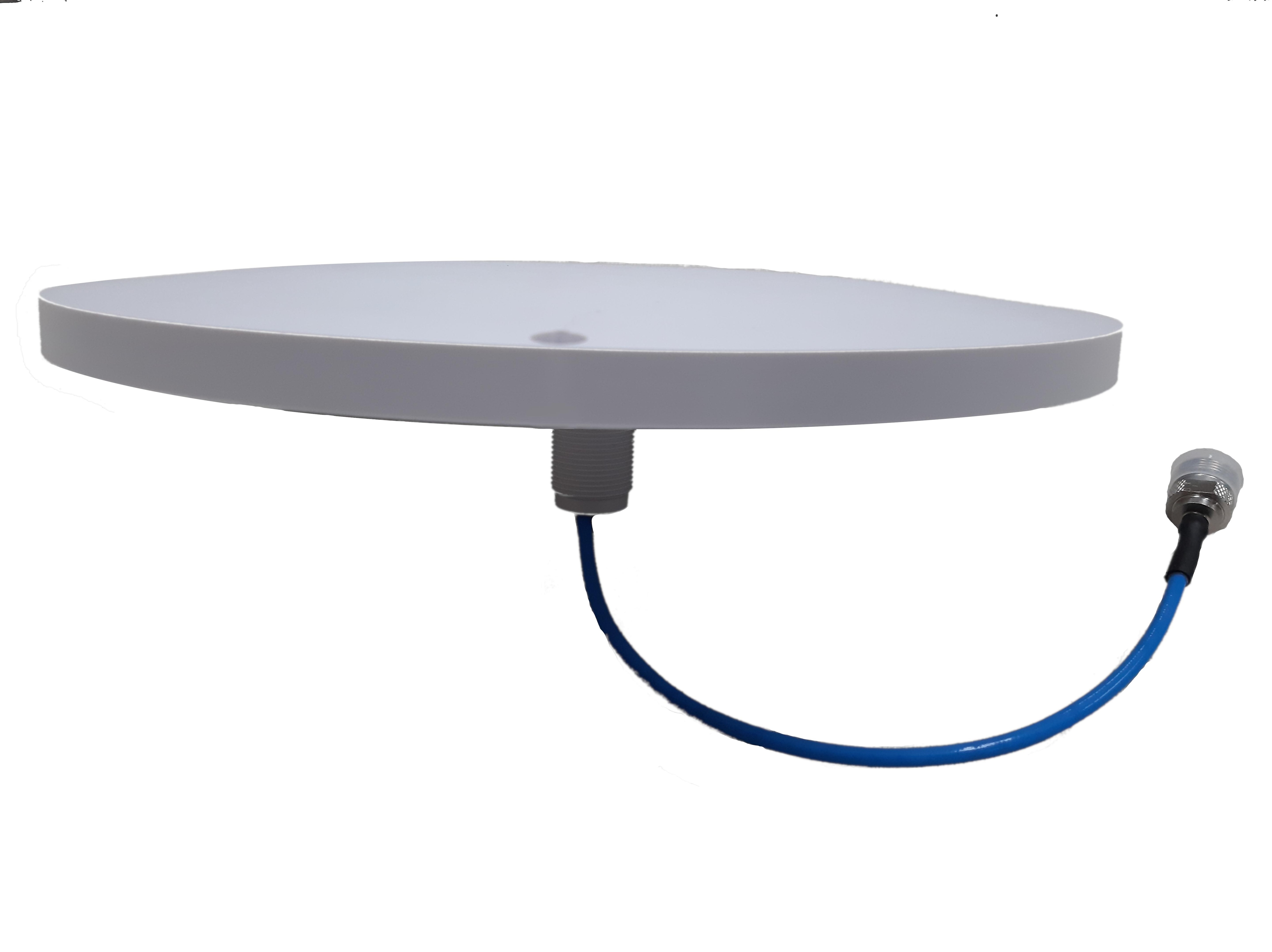

DAS3827LP-SOC150-NUHF
RFI DAS Omni Antenna. Low Profile SISO. UHF/Cellular 380-2700 MHz. PIM -150 dBc. 0.3m Tail, Type-N(F)
FREQUENCY
380-2700 MHz
POWER
50 W
PIM 3RD ORDER
-150 dBc
POLARISATION
Vertical or Horizontal
VERTICAL BEAMWIDTH
80 / 70 / 60

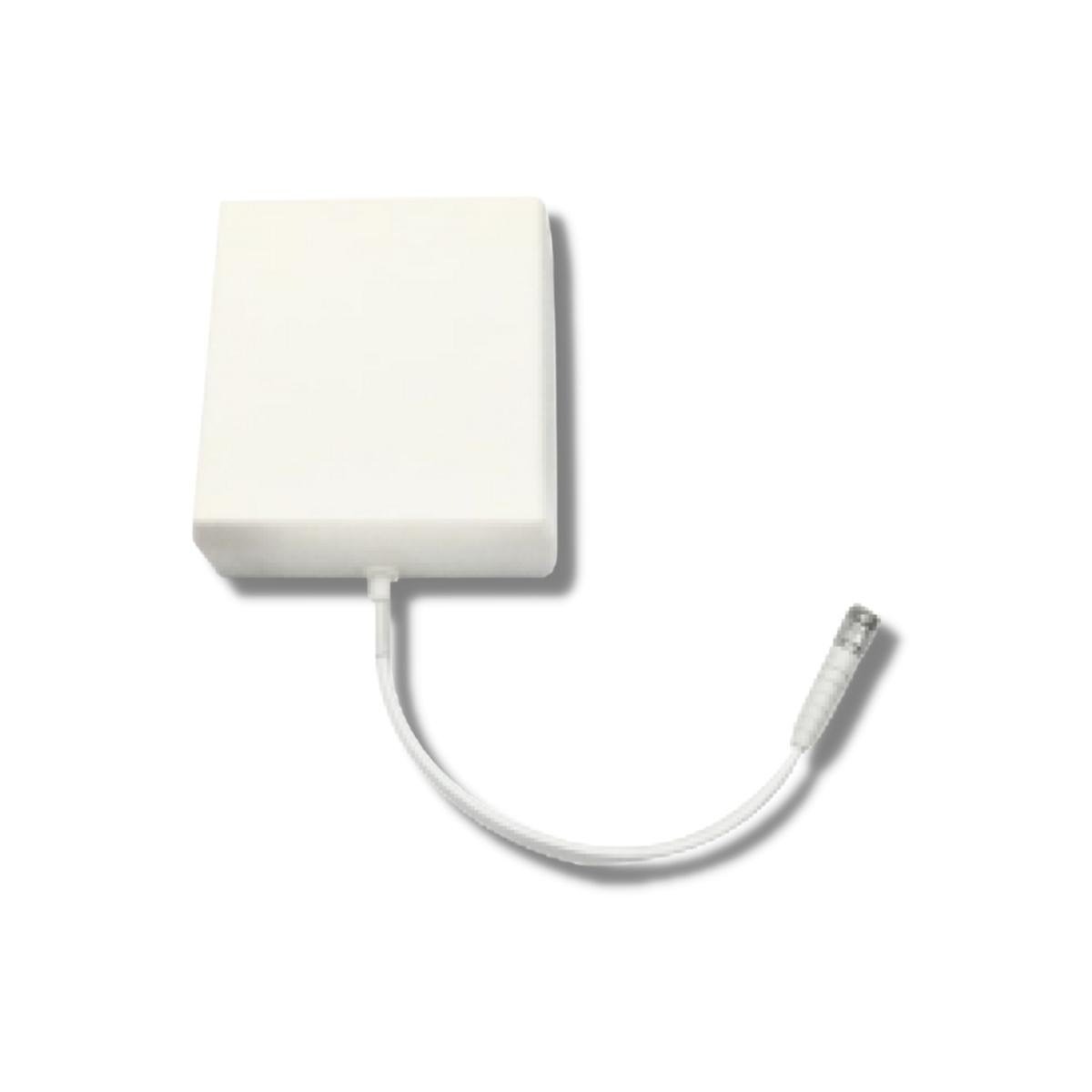

DAS6938-SDP150-N700/800
RFI DAS Panel Antenna. Low PIM SISO. 698-960 and 1710-2700 and 3300-3800 MHz. Indoor/Outdoor IP55. PIM -150 dBc. 0.3m Tail, Type-N(F)
FREQUENCY
698-3800 MHz
VSWR
<1.8:1 / <1.5:1 / <1.8:1
POWER
50 W
PIM 3RD ORDER
-150 dBc
TERMINATION
Single 300mm tail with N (F) connector

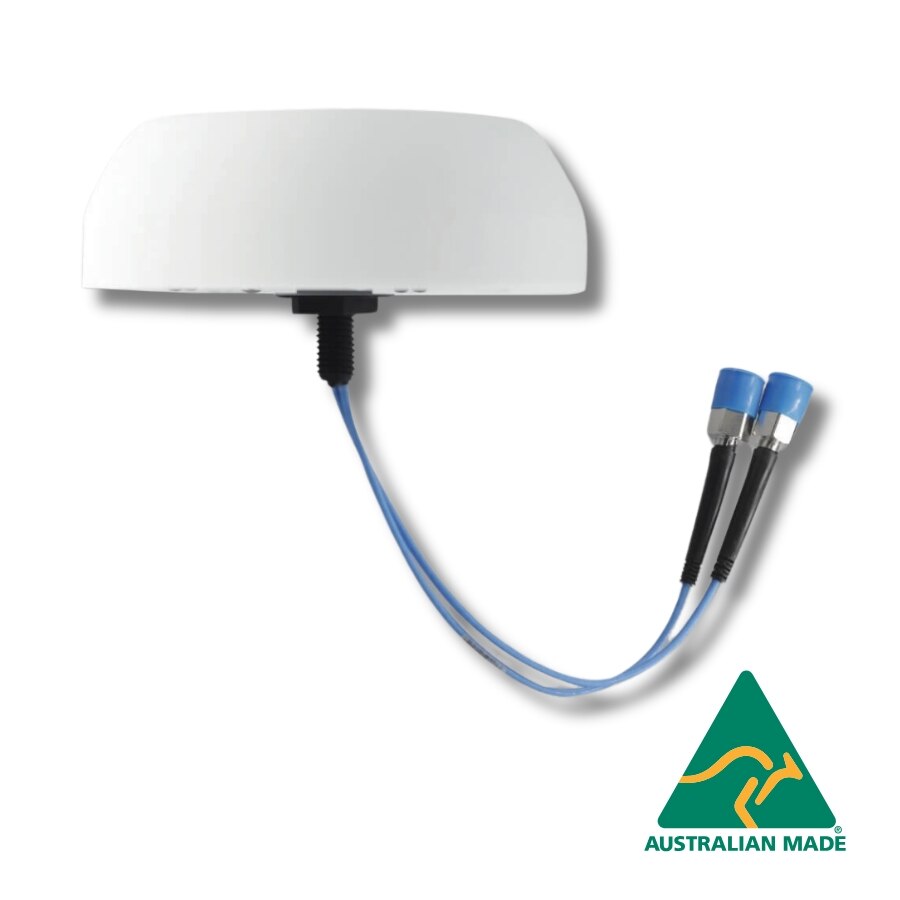

DAS6942700/8002 VARIANTS

RFI DAS Omni 5G Antenna. 698-4200 MHz. PIM -160 dBc. 0.5m 4.3-10(F)

FREQUENCY: 698-3800 MHz
POLARISATION: Vertical
APPLICATION: DAS Antenna

Order codes for DAS6942 — RFI DAS Omni 5G Antenna. 698-4200 MHz. PIM -160 dBc. 0.5m 4.3-10(F)
DAS6942-MOC160	RFI DAS Omni 5G Antenna. 2x2 MIMO. 698-4200 MHz. PIM -160 dBc. 2 x 0.5m Tails, 4.3-10(F)
DAS6942-SOC160-B	RFI DAS Omni 5G Antenna. Low PIM SISO. 698-4200 MHz. PIM -160 dBc. 0.5m Tail, 4.3-10(F)

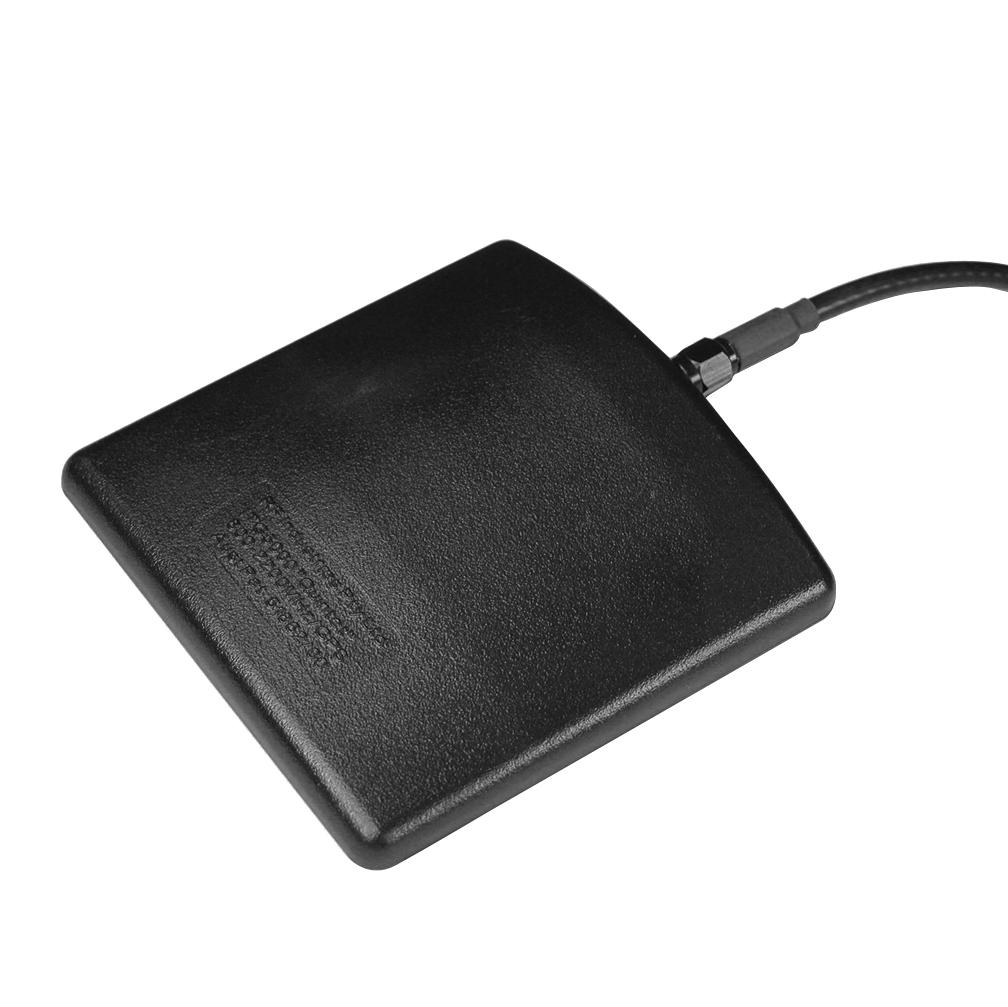

ITG5001700/800
RFI 3G Internal Glass Mount Antenna (806-2170 MHz)
FREQUENCY
806 - 890, 890 - 960, 1710 - 1880, 1850 - 1990, 1910 - 2170 MHz
BAND
806 - 960MHz / 1710 - 2170MHz
VSWR
<2.0:1
POWER
10 W
TERMINATION
SME Female

LEGIONUHF6 VARIANTS

RFI Legion Antenna x x

ACROSS VARIANTS: 500 – 7125 MHz
ANTENNA TYPE: Combination, Ground Independent, Low Profile, Omni-Directional MIMO
IP RATING: IP67, IP69
APPLICATION: IoT and M2M, Terminal Antenna, Vehicle Antenna

Order codes for LEGION — RFI Legion Antenna x x
LEGION-C2-W4-2M-SMA	RFI Legion 6-in-1 Screw Mount Antenna (2 x 5GNR, 4 x WiFi)
LEGION-C4-W2-2M-SMA	RFI Legion 6-in-1 Screw Mount Antenna (4 x 5GNR, 2 x WiFi)
LEGION-C4-W2-G-2M-SMA	RFI Legion 7-in-1 Combination Antenna (4 x 5GNR, 2 x WiFi & GNSS)

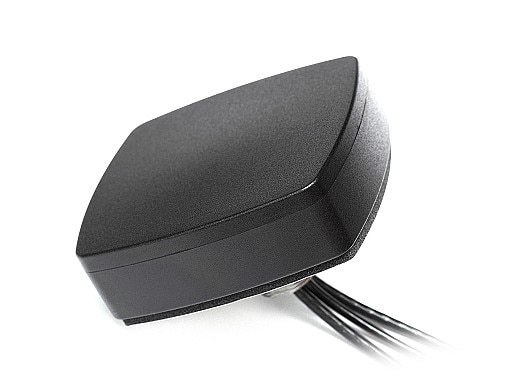

LEGION-MICRO-C2-G-2M-SMA	RFI Legion Micro 3-in-1 Combination Antenna 2 x 5GNR & GNSS
LEGION-MINI-C2-G-2M-SMA	RFI Legion Mini 3-in-1 Screw Mount Antenna (2 x 5GNR & GNSS)
LEGION-MINI-C2-W2-G-2M-SMA	RFI Legion Mini 5-in-1 Combination Antenna 2 x 5GNR, 2 x Wi-Fi & GNSS

LMHP5 VARIANTS

RFI MIMO Puck Antenna (698-2700

ACROSS VARIANTS: 2.4 – 5800 MHz
TUNED BANDWIDTH: Full. No tuning required
RADOME DIAMETER: 110 mm
IP RATING: IP65

Order codes for LMHP — RFI MIMO Puck Antenna (698-2700
LMHP-1.5M-F	RFI LTE MIMO Puck Antenna (698-2700 MHz)
LMHP-G-1.5M-FS	RFI LTE 2x2 MIMO & GPS Puck Antenna (698-2700 MHz & GPS)
LMHP-GW-1.5M-FS	RFI LTE/WiFi MIMO & GPS Puck Antenna (698-2700 MHz, 2.4/5.8 GHz & GPS)
LMHP-GW-5.0M-SMA	RFI LTE/WIFI MIMO & GPS Puck Antenna (698-2700 MHz, 2.4/5.8 GHz & GPS): 5 x 5m RG174, SMA(M)
LMHP-W-1.5M-FS	RFI LTE/WiFi MIMO Puck Antenna (698-2700 MHz & 2.4/5.8 GHz)

LPDA70382 VARIANTS

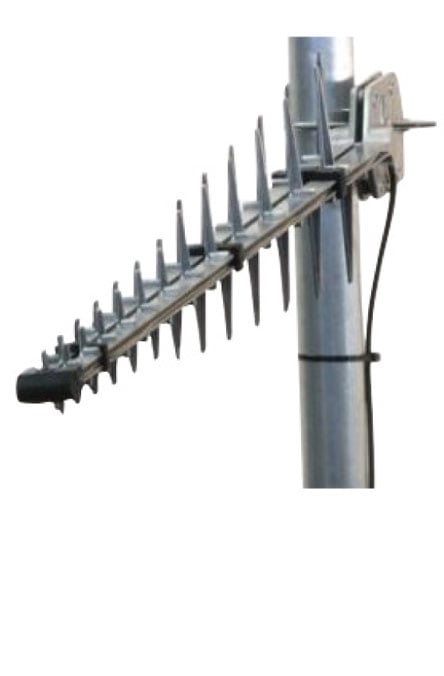

RFI 5G LTE 11dBi LPDA Directional Antenna (700-3800 MHz)
CONFIGURATION
SISO
ANTENNA TYPE
LPDA
APPLICATION
Terminal Antenna
Order codes for LPDA7038 — RFI 5G LTE 11dBi LPDA Directional Antenna (700-3800 MHz)
LPDA7038-11-0.5NF 0.5m N(F)
LPDA7038-11-4.3-10 0.5m tail, 4.3-10 Male connector

Order codes for LPDA7038 — RFI 5G LTE 11dBi LPDA Directional Antenna (700-3800 MHz)
LPDA7038-11-0.5NF	0.5m N(F)
LPDA7038-11-4.3-10	0.5m tail, 4.3-10 Male connector

LTE700/80013 VARIANTS

RFI Antenna

ACROSS VARIANTS: 698 – 2700 MHz

Order codes for LTE — RFI Antenna
LTE-APL-8M-SMA	RFI LTE Magnetic/Adhesive Mount Antenna (698-2700MHz)
LTE-G-ALP-1.5M-SMA	RFI LTE/GPS Adhesive Mount Antenna (698-2700 MHz)
LTE-G-MAG-3M-SMA	RFI LTE/GPS Magnetic Base Antenna (698-2700 MHz)
LTE-G-SDA-1.5M-SMA	RFI LTE/GPS Dome Antenna (698-2700 MHz)
LTE-G-SLP-1.5M-SMA	RFI LTE/GPS Low Profile Antenna (698-2700 MHz)
LTE-MAGM-3M-SMA	RFI LTE MIMO Magnetic Base Antenna (698-2700 MHz)
LTE-MAGS-3M-SMA	RFI LTE Magnetic Base Antenna (698-2700 MHz)
LTE-MDA-1.5M-SMA	RFI LTE MIMO Dome Antenna (698-2700 MHz)
LTE-MLP-1.5M-SMA	RFI LTE MIMO Low Profile Antenna (698-2700 MHz)
LTE-SDA-1.5M-SMA	RFI LTE Dome Antenna (698-2700 MHz)
LTE-SLP-1.5M-FME	RFI LTE Low Profile Antenna (698-2700 MHz)
LTE-SLP-1.5M-SMA	RFI LTE Low Profile Antenna (698-2700 MHz)
LTE-XPOL-002-5G	RFI 5G LTE 2x2 MIMO Directional Panel Antenna (698-3800 MHz)

MSW700/8003 VARIANTS

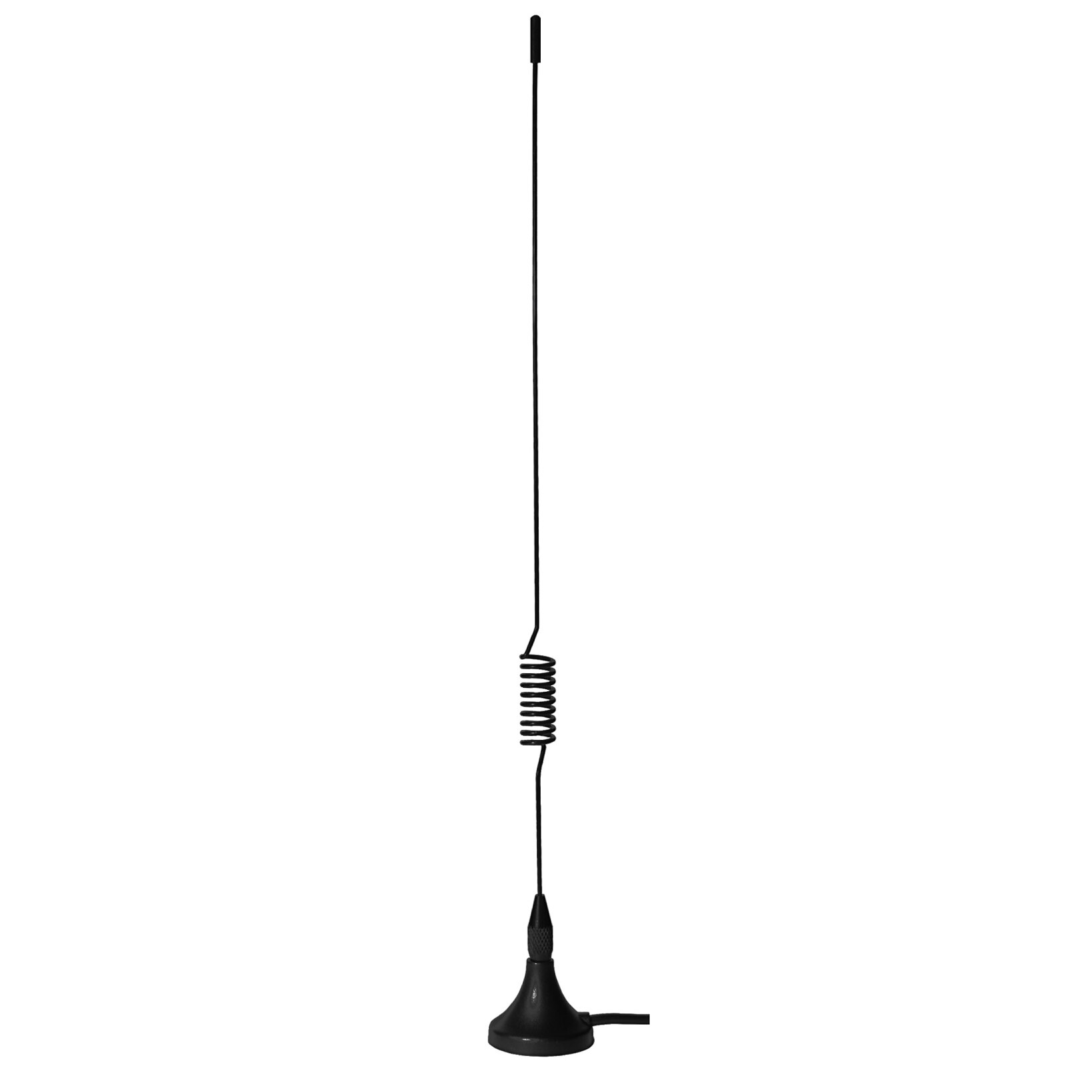

RFI 3G Mini Magnetic Base Antenna (824-2170MHz)
ACROSS VARIANTS
824 – 2170 MHz
CONFIGURATION
SISO
APPLICATION
Vehicle Antenna
Order codes for MSW — RFI 3G Mini Magnetic Base Antenna (824-2170MHz)
MSW-3G-SMA 2.0m SMA(M)
MSW-3G-TS9 2.0m TS9(M)
MSW-3G-TS9-SMA 2.0m TS9(M) & SMA(M) Adaptor

MSW-3G-SMA	2.0m SMA(M)
MSW-3G-TS9	2.0m TS9(M)
MSW-3G-TS9-SMA	2.0m TS9(M) & SMA(M) Adaptor
