ANTENNAS — 20 PRODUCTS

ISM

15 series · 20 parts

BAND

CD1160700/8002 VARIANTS
RFI 900 MHz 1.5dB E/Feed Mopole Antenna (890-960 MHz)
ACROSS VARIANTS
890 – 960 MHz
Order codes for CD1160 — RFI 900 MHz 1.5dB E/Feed Mopole Antenna (890-960 MHz)
CD1160 5m No Connector
CD1160-VA4 0.3m No Connector
CD1625700/8002 VARIANTS
RFI 900 MHz 3dB E/Feed Mopole Antenna (890-1880 MHz)
ACROSS VARIANTS
890 – 1880 MHz
VSWR
<2.0:1
POWER
50 W
CONFIGURATION
SISO
ANTENNA TYPE
Ground Independent, Omni-Directional SISO
Order codes for CD1625 — RFI 900 MHz 3dB E/Feed Mopole Antenna (890-1880 MHz)
CD1625 5m No Connector
CD1625-SMA 5m SMA(M)
CDR2795-ISM900700/800
RFI ISM 6dBi Collinear Antenna (824-960 MHz)
FREQUENCY
824-960 MHz
GAIN
6 dBi
VSWR
<2.0:1
ANTENNA TYPE
Collinears, Meander, Omni-Directional SISO
APPLICATION
IoT and M2M, Terminal Antenna
COD8-8596700/800
Unity Gain Broadband Dipole Antenna 850-960MHz
FREQUENCY
850 - 930 MHz
POWER
100 W
TERMINATION
N female bulkhead
POLARISATION
Vertical
HORIZONTAL BEAMWIDTH
Omni +/- 0.5dB
COL81-930-P700/800
MEANDER COLLINEAR, 850-930MHz, UNITY GAIN, -150dBC PIM, 4.3-10 FEMALE CONNECTOR
FREQUENCY
850-930 MHz
VSWR
<1.5:1
POWER
250 W
PEAK POWER
25 kW
PIM 3RD ORDER
-150 dBc
COL84-930-P700/800
MEANDER COLLINEAR, 850-930MHz, 5dBd GAIN, -150dBC PIM, 4.3-10 FEMALE CONNECTOR
FREQUENCY
850-930 MHz
VSWR
<1.5:1
POWER
250 W
PEAK POWER
25 kW
PIM 3RD ORDER
-150 dBc
COL85-930-P700/800
MEANDER COLLINEAR, 850-930MHz, 7dBd GAIN, -150dBC PIM, 4.3-10 FEMALE CONNECTOR
FREQUENCY
850-930 MHz
VSWR
<1.5:1
POWER
250 W
PEAK POWER
25 kW
PIM 3RD ORDER
-150 dBc
COL811-930-P700/800
MEANDER COLLINEAR, 850-930MHz, 9dBd GAIN, -150dBC PIM, 4.3-10 FEMALE CONNECTOR
FREQUENCY
850-930 MHz
VSWR
<1.5:1
POWER
250 W
PEAK POWER
25 kW
PIM 3RD ORDER
-150 dBc

Order codes for CD1160 — RFI 900 MHz 1.5dB E/Feed Mopole Antenna (890-960 MHz)
CD1160	5m No Connector
CD1160-VA4	0.3m No Connector

Order codes for CD1625 — RFI 900 MHz 3dB E/Feed Mopole Antenna (890-1880 MHz)
CD1625	5m No Connector
CD1625-SMA	5m SMA(M)

ISM9700/8004 VARIANTS

RFI ISM 900 MHz Antenna MHz)

ACROSS VARIANTS: 868 – 928 MHz
CONFIGURATION: SISO
ANTENNA TYPE: Low Profile, Omni-Directional SISO
APPLICATION: IoT and M2M, Terminal Antenna

Order codes for ISM9 — RFI ISM 900 MHz Antenna MHz)
ISM9-FA-SMA	RFI ISM 900 MHz Folding Terminal Antenna (902-928 MHz)
ISM9-FA-SMA-RP	RFI ISM 900 MHz Folding Terminal Antenna (902-928 MHz)
ISM9-SDA-1.5M-SMA	RFI ISM 900 MHz Dome Antenna (868-928 MHz)
ISM9-SLP-1.5M-SMA	RFI ISM 900 MHz Low Profile Antenna (868-928 MHz)

SW1605700/800
RFI 900 MHz Unity Roof Mount Antenna (890-970 MHz)
FREQUENCY
890 - 970 MHz
BAND
890 - 960MHz
GAIN
Unity over a 1/4 wave whip dBi
VSWR
<1.9:1
TUNED BANDWIDTH
Entire specified band @ <1.9:1 VSWR
WF-MLP-3M-SMACELLULAR

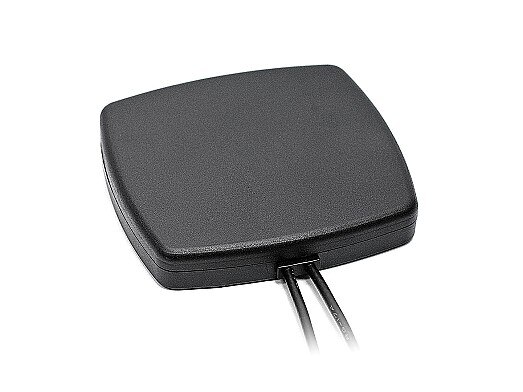

RFI WiFi MIMO Low Profile Adhesive Mount Antenna (2.4-5.0 GHz): 2 x 3m D302 SMA(M)
FREQUENCY
2410 - 2490 / 4920 - 5925 MHz
GAIN
5.0 @ 2.4GHz / 4.6 @ 5 GHz dBi
VSWR
<1.5:1
POWER
10 W
TERMINATION
2 x 1.5m LMR195 terminated with SMA male
YB806-82700/800

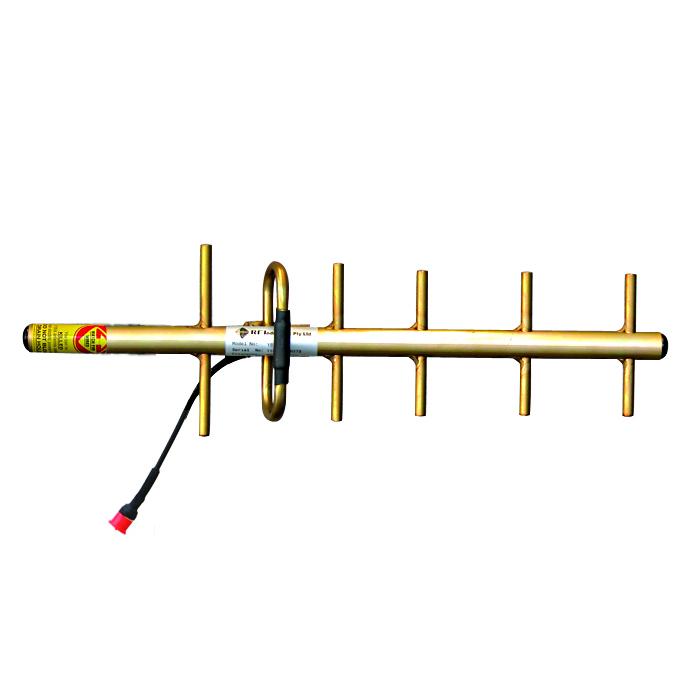

6 Element Yagi 850-930MHz
FREQUENCY
850 - 930 MHz
VSWR
<1.5:1
POWER
100 W
TERMINATION
N female with short 9302 cable tail
POLARISATION
Vertical
YB809-82700/800

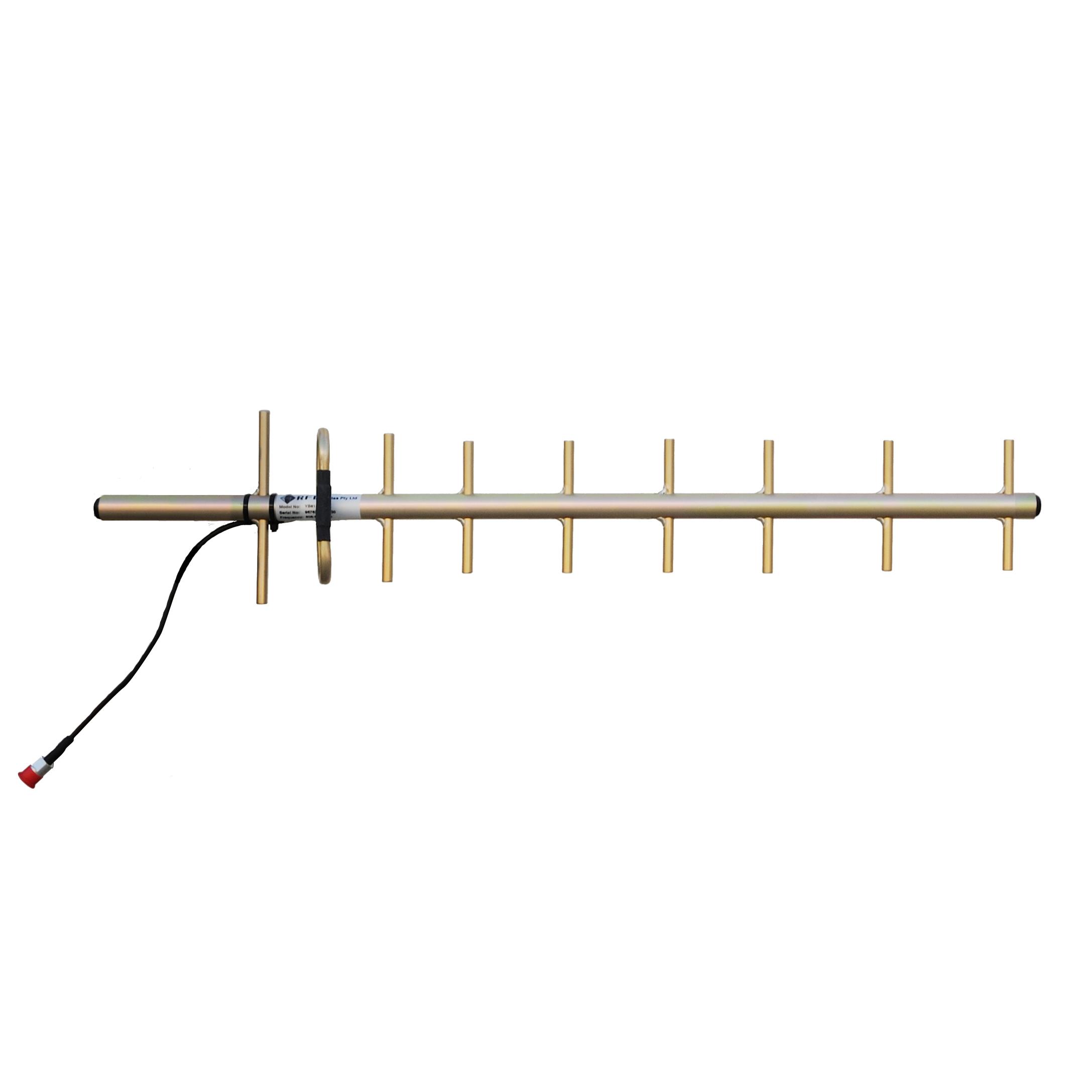

9 Element Yagi 850-930MHz
FREQUENCY
850 - 930 MHz
VSWR
<1.5:1
POWER
100 W
TERMINATION
N female with short 9302 cable tail
POLARISATION
Vertical
YB815-82700/800

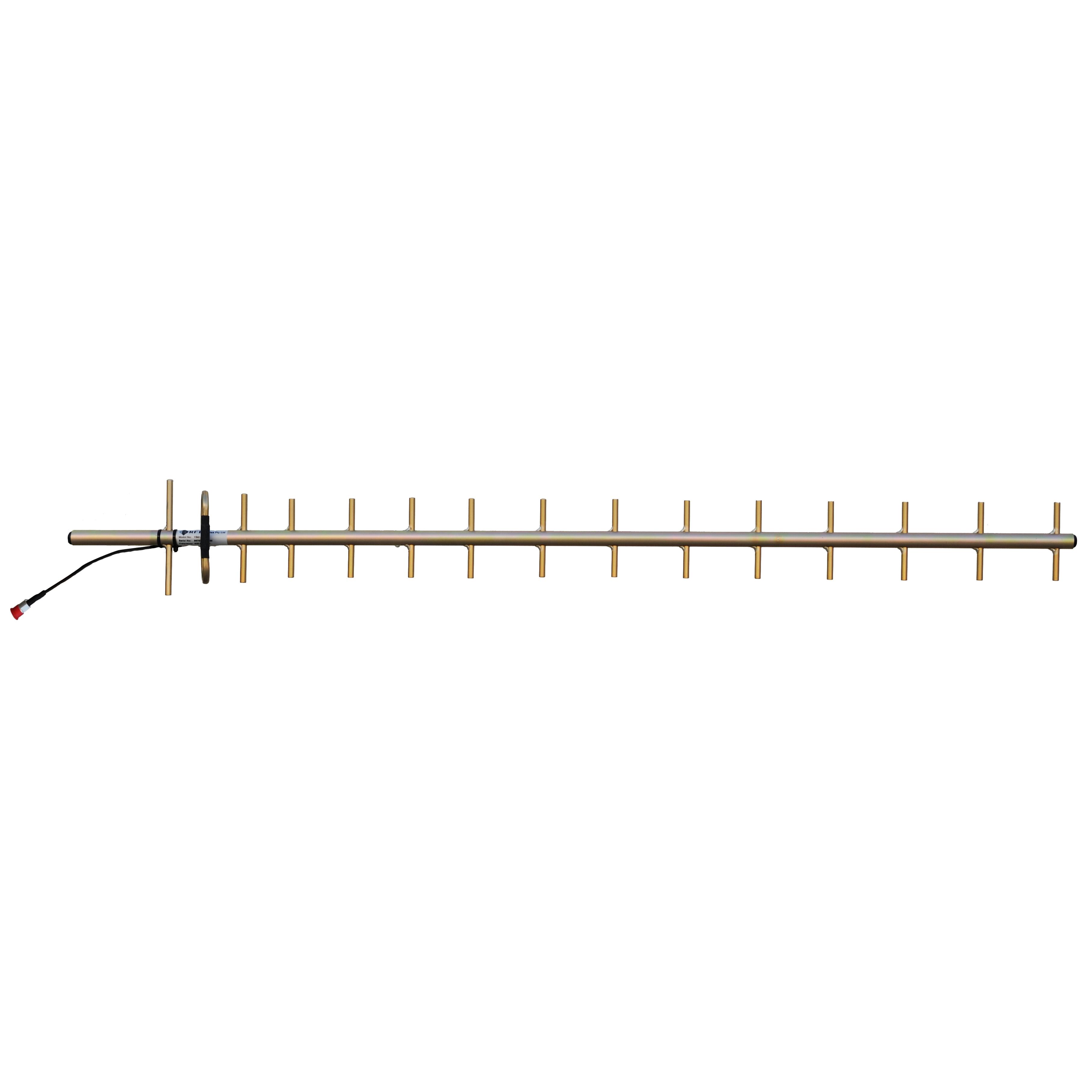

15 Element Yagi 850-930MHz
FREQUENCY
850 - 930 MHz
VSWR
<1.5:1
POWER
100 W
TERMINATION
N female with short 9302 cable tail
POLARISATION
Vertical
YB820-82700/800

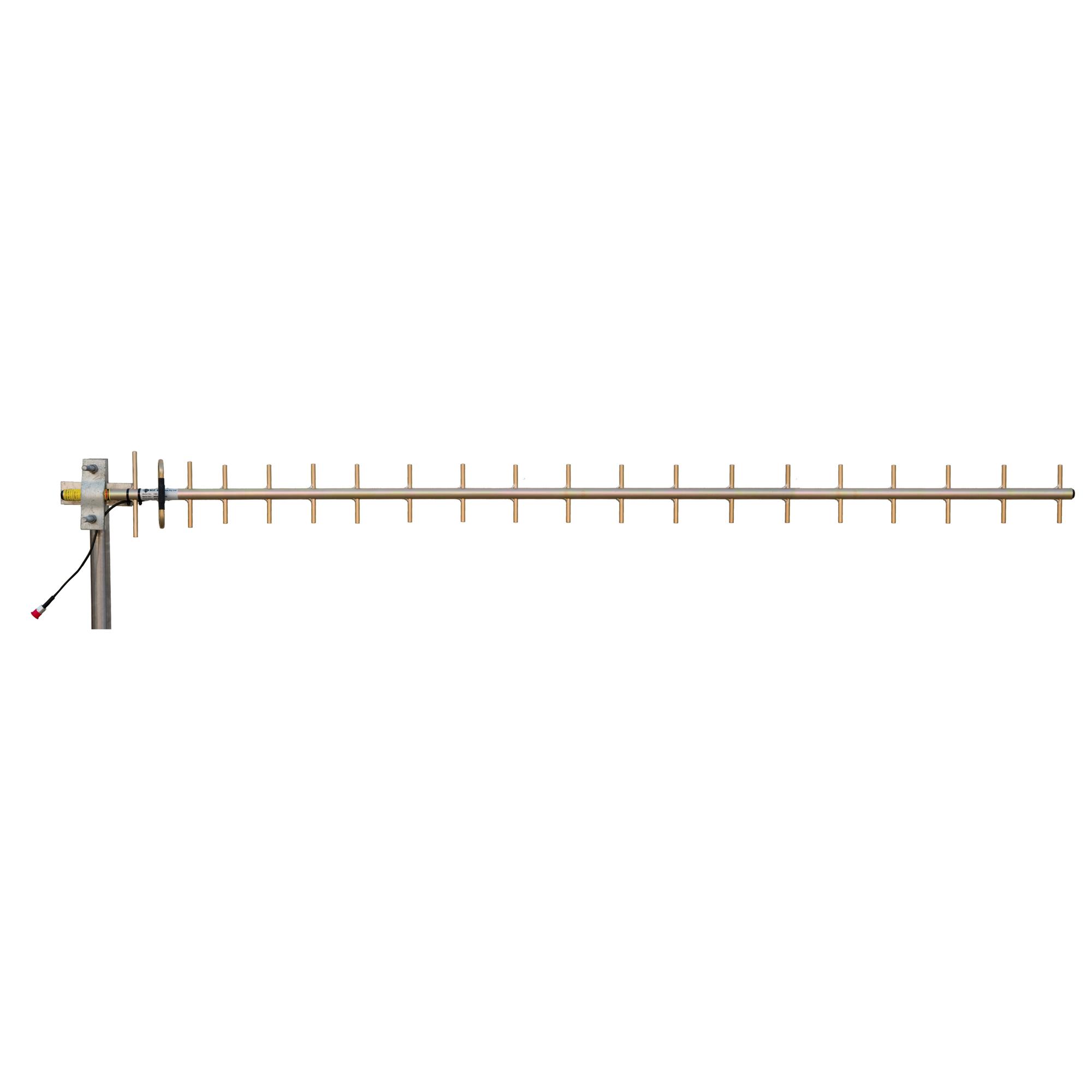

20 Element Yagi 850-930MHz
FREQUENCY
850 - 930 MHz
VSWR
<1.5:1
POWER
100 W
TERMINATION
N female with short 9302 cable tail
POLARISATION
Vertical
