ANTENNAS — 392 PRODUCTS
PMR / LMR
157 series · 392 parts
BAND
111STVHFRFI VHF Unity Stainless Steel Whip (66 - 175MHz)
- FREQUENCY
- 66-175 MHz
- BAND
- 66 - 175MHz
- GAIN
- Unity over a 1/4 wave whip dBi
- VSWR
- 3% @ <1.5:1
- POWER
- 100 W
- AP374UHF
RFI UHF On-Glass Antenna (380-474 MHz)
- FREQUENCY
- 380 - 474 MHz
- FREQUENCY RANGE
- 380 - 474
- BAND
- 380 - 474MHz
- GAIN
- Unity dBi
- VSWR
- <2.0:1
- AP454-3GUHF
RFI UHF On-Glass Antenna (410-520 MHz)
- FREQUENCY
- 410 - 520 MHz
- GAIN
- Unity dBi
- VSWR
- 10MHz @ 1.5:1
- POWER
- 50 W
- POLARISATION
- Vertical

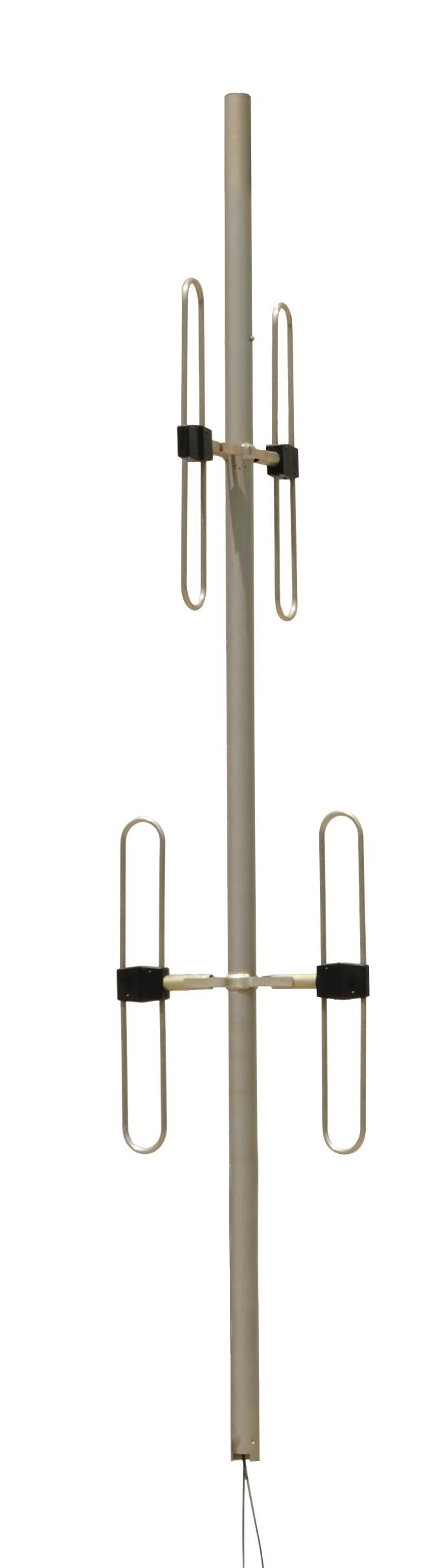

Binary Dipole Array - 3 dBd
- ACROSS VARIANTS
- 136 – 520 MHz
- VSWR
- <1.5:1
- PIM 3RD ORDER
- <-150 dBc
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
Order codes for BA40 — Binary Dipole Array - 3 dBd BA40-41-P VHF Binary Dipole Array 136-174MHz - 3 dBd BA40-57-P UHF Binary Dipole Array 330-420MHz - 3 dBd BA40-67-P UHF Binary Dipole Array 400-520MHz - 3 dBd
Binary Array
- ACROSS VARIANTS
- 136 – 520 MHz
- VSWR
- <1.5:1
- PIM 3RD ORDER
- <-150 dBc
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical

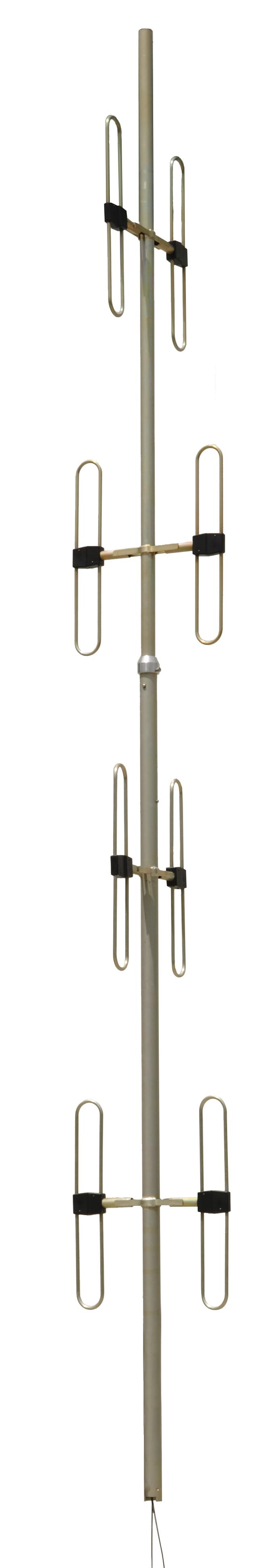

Order codes for BA80 — Binary Array BA80-41-P VHF Binary Dipole Array 136-174MHz - 6 dBd BA80-57-P UHF Binary Dipole Array 330-420MHz - 6 dBd BA80-67-P UHF Binary Dipole Array 400-520MHz - 6 dBd BA80-67L-P Combination Array Binary Lower Section 400-520MHz - BA81-67-PUHF
UHF Binary Dipole Array, Stainless, 400-520MHz - 6 dBd
- FREQUENCY
- 400 - 520 MHz
- VSWR
- <1.5:1
- POWER
- 500 W
- PIM 3RD ORDER
- < -140 dBc
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail
- BA160-67-PUHF
RFI 9dBd Omni-Directional Antenna (400-520 MHz)
- FREQUENCY
- 400-520 MHz
- VSWR
- <1.5:1
- POWER
- 500 W
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
Binary Array
- ACROSS VARIANTS
- 136 – 520 MHz
- VSWR
- <1.5:1
- PIM 3RD ORDER
- <-150 dBc
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
Order codes for BA4040 — Binary Array BA4040-41-P VHF Binary Dipole Array 136-174MHz - 2x3dBd BA4040-57-P UHF Binary Dipole Array 330-420MHz - 2x3 dBd BA4040-67-P Single Section Dual Binary Array 400-520MHz BA4040-67L-P Array Dual Binary Lower Section 400-520MHz

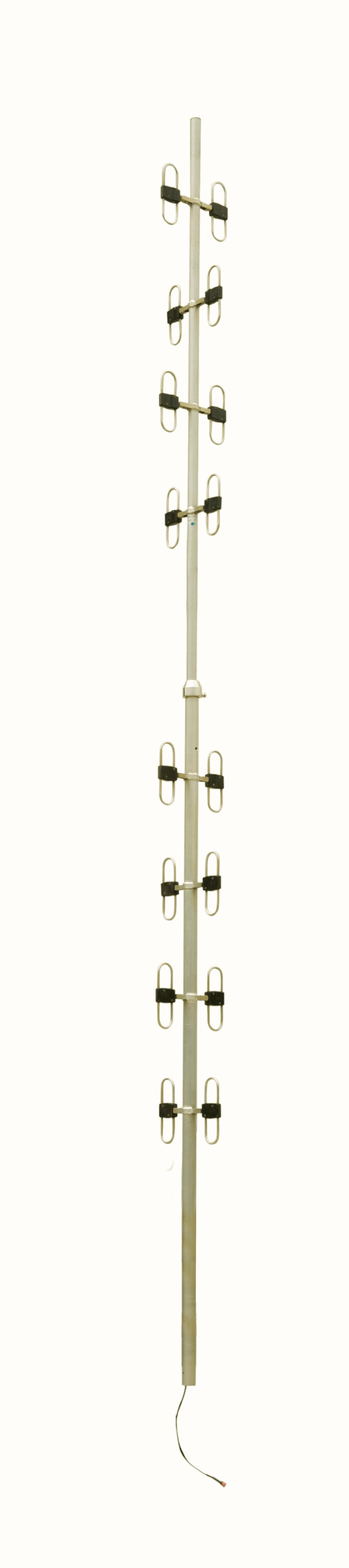

BA8080-67-PUHFUHF Binary Dipole Dual Array 400-520MHz - 2 x 6 dBd
- FREQUENCY
- 400 - 520 MHz
- VSWR
- <1.5:1
- POWER
- 500 W
- PIM 3RD ORDER
- <-150 dBc
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
VHF Monocone - Full Band
- ACROSS VARIANTS
- 118 – 160 MHz
- POLARISATION
- Vertical
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Omni-Directional SISO
- APPLICATION
- Base Station Antenna
Order codes for BMV — VHF Monocone - Full Band BMV-118137 VHF Monocone 118-137MHz - Full Band BMV-136160 VHF Monocone 136-160MHz - Full Band BMV-148174 VHF Monocone 148-174MHz - Full Band
UHF Panel Antenna 380-470 MHz, Dual Polarized, 65 deg, 14 dBi, 4.3-10(f)
- FREQUENCY RANGE
- 118 - 1000
- GAIN
- 14 dBi
- PIM 3RD ORDER
- -150 dBc
- CONNECTOR
- 4.3-10(F)
- POLARISATION
- Cross Polarisation
Binary Array Collar Kit suits 64mm Array/48mm Meander
- FREQUENCY
- NA MHz
- POLARISATION
- Vertical
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Exposed Dipole Array
- APPLICATION
- Base Station Antenna
UHF Corporate Collinear Antenna 450-512MHz - 6dBd
- ACROSS VARIANTS
- 450 – 520 MHz
- VSWR
- <1.5:1 (14dB)
- PIM 3RD ORDER
- -150 dBc
- TERMINATION
- 4.3-10 fixed female
- POLARISATION
- Vertical
Order codes for CC450 — UHF Corporate Collinear Antenna 450-512MHz - 6dBd CC450-06-P UHF Corporate Collinear Antenna 450-512MHz - 6dBd CC450-06-T3-P CORPORATE COLLINEAR, 450-512MHz, 5dBd, 3 DEG TILT, -150dBC PIM, 4.3-10 CONNECTOR CC450-06-T6-P CORPORATE COLLINEAR, 450-512MHz, 6dBd, 6 DEG TILT, -150dBC PIM, 4.3-10 CONNECTOR CC450-09-P CORPORATE COLLINEAR, 450-512MHz, 9dBd, -150dBC, 4.3-10 CONNECTOR CC450-09-T3-P CORPORATE COLLINEAR, 450-512MHz, 9dBd, 3 DEG TILT, -150dBC, 4.3-10 CONNECTOR CC450-09-T6-P CORPORATE COLLINEAR, 450-512MHz, 9dBd, 6 DEG TILT, -150dBC, 4.3-10 CONNECTOR
800MHz Corporate Collinear 746-870MHz - 3dBd
- ACROSS VARIANTS
- 746 – 870 MHz
- VSWR
- <1.5:1
- PEAK POWER
- 25 kW
- PIM 3RD ORDER
- -150 dBc
- TERMINATION
- 4.3-10 fixed female
Order codes for CC807 — 800MHz Corporate Collinear 746-870MHz - 3dBd CC807-03-P 800MHz Corporate Collinear 746-870MHz - 3dBd CC807-06-P 800MHz Corporate Collinear 746-870MHz - 6dBd CC807-06-T3-P CORPORATE COLLINEAR, 6dBd, 746-870MHz, 3 DEG TILT, HIGH POWER, 4.3-10 CONNECTOR CC807-06-T5-P CORPORATE COLLINEAR, 6dBd, 746-870MHz, 5 DEG TILT, HIGH POWER, 4.3-10 CONNECTOR CC807-08-P 800MHz Corporate Collinear 746-870MHz - 8dBd CC807-08-T1-P CORPORATE COLLINEAR, 1 DEG TILT, 8dBd, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-08-T2-P CORPORATE COLLINEAR, 2 DEG TILT, 8dBd, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-08-T3-P CORPORATE COLLINEAR, 3 DEG TILT, 8dBd, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-08-T4-P CORPORATE COLLINEAR, 4 DEG TILT, 8dBd, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-08-T5-P CORPORATE COLLINEAR, 5 DEG TILT, 8dBd, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-09-P 800MHz Corporate Collinear 746-870MHz - 9.0dBd CC807-11-P 800MHz Corporate Collinear 746-870MHz - 10.5dBd CC807-11-T1-P CORPORATE COLLINEAR, 10.5dBd, 1 DEG TILT, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-11-T2-P CORPORATE COLLINEAR, 10.5dBd, 2 DEG TILT, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-11-T3-P CORPORATE COLLINEAR, 10.5dBd, 3 DEG TILT, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-11-T4-P CORPORATE COLLINEAR, 10.5dBd, 4 DEG TILT, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-11-T5-P CORPORATE COLLINEAR, 10.5dBd, 5 DEG TILT, 746-870MHz, HIGH POWER, 4.3-10 CONNECTOR CC807-12-P 800MHz Corporate Collinear 746-870MHz - 11.5dBd, 4.3-10 CC807-12-T2-P 800MHz Corporate Collinear 746-870MHz - 11.5dBd, 2deg DT, 4.3-10 CC807-12-T4-P 800MHz Corporate Collinear 746-870MHz - 11.5dBd, 4deg DT, 4.3-10 RFI VHF Mid-Band 1.5dB Broadband Mopole Antenna MHz)
- ACROSS VARIANTS
- 70 – 85 MHz
- GAIN
- 1.5dBq
- VSWR
- <1.8:1
- POWER
- 25 W
- POLARISATION
- Vertical
Order codes for CD19 — RFI VHF Mid-Band 1.5dB Broadband Mopole Antenna MHz) CD19-7077-00 RFI VHF Mid-Band 1.5dB Broadband Mopole Antenna (70-77 MHz) CD19-7077-50 RFI VHF Mid-Band 1.5dB Broadband Mopole Antenna (70-77 MHz) CD19-7077-53 RFI VHF Mid-Band 1.5dB Broadband Mopole Antenna (70-77 MHz) CD19-7785-00 RFI VHF Mid-Band 1.5dB Broadband Mopole Antenna (77-85 MHz) CD19-7785-50 RFI VHF Mid-Band 1.5dB Broadband Mopole Antenna (77-85 MHz) CD19-7785-53 RFI VHF Mid-Band 1.5dB Broadband Mopole Antenna (77-85 MHz)
RFI VHF 3dB Mopole Antenna MHz)
- ACROSS VARIANTS
- 138 – 175 MHz
- GAIN
- 3dB over a 1/4 wave whip dBi
- POWER
- 50 W
- POLARISATION
- Vertical
- CONFIGURATION
- SISO

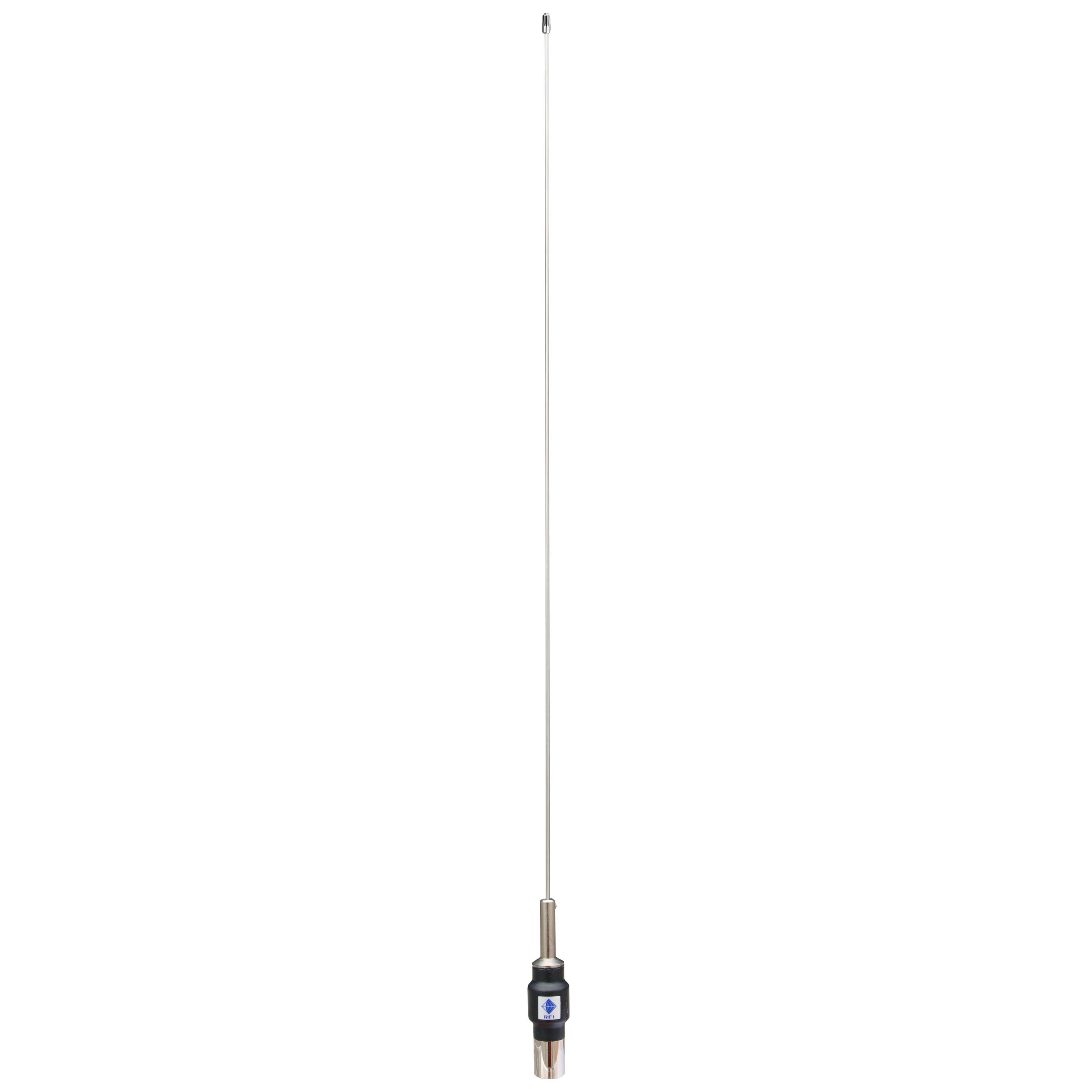

Order codes for CD28 — RFI VHF 3dB Mopole Antenna MHz) CD28-37-50 RFI VHF 3dB Mopole Antenna (138-148 MHz) CD28-37-53 RFI VHF 3dB Mopole Antenna (138-148 MHz) CD28-41-50 RFI VHF 3dB Mopole Antenna (148-174 MHz) CD28-41-50-158 RFI VHF 3dB Mopole Antenna (158 MHz) CD28-41-50-161 RFI VHF 3dB Mopole Antenna (161 MHz) CD28-41-53 RFI VHF 3dB Mopole Antenna (148-175 MHz) CD28-41-53-158 RFI VHF 3dB Mopole Antenna (158 MHz) CD28-41-53-161 RFI VHF 3dB Mopole Antenna (161 MHz) CD28-41-53-162 RFI VHF 3dB Mopole Antenna (162 MHz) CD28-41-53-171 RFI VHF 3dB Mopole Antenna (171 MHz) CD28-41-70 RFI VHF 3dB Mopole Antenna (148-174 MHz) CD28-41-73 RFI VHF 3dB Mopole Antenna (148-174 MHz) RFI VHF 3dB Broadband Mopole Antenna MHz)
- ACROSS VARIANTS
- 118 – 174 MHz
- GAIN
- 3dBq
- POWER
- 50 W
- TUNED BANDWIDTH
- Full
- WHIP MATERIAL
- Flexible tapered stainless steel whip
Order codes for CD29 — RFI VHF 3dB Broadband Mopole Antenna MHz) CD29-118136-00 RFI VHF Air-Band 3dB Broadband Mopole Antenna (118-136 MHz) CD29-118136-50 RFI VHF Air-Band 3dB Broadband Mopole Antenna (118-136 MHz) CD29-118136-53 RFI VHF Air-Band 3dB Broadband Mopole Antenna (118-136 MHz) CD29-138166-00 RFI VHF High-Band 3dB Broadband Mopole Antenna (138-166 MHz) CD29-138166-50 RFI VHF High-Band 3dB Broadband Mopole Antenna (138-166 MHz) CD29-138166-53 RFI VHF High-Band 3dB Broadband Mopole Antenna (138-166 MHz) CD29-148174-00 RFI VHF High-Band 3dB Broadband Mopole Antenna (148-174 MHz) CD29-148174-50 RFI VHF High-Band 3dB Broadband Mopole Antenna (148-174 MHz) CD29-148174-53 RFI VHF High-Band 3dB Broadband Mopole Antenna (148-174 MHz) RFI VHF/UHF Dual Broad Band Antenna (148-174 / 400-470
- FREQUENCY
- 148-174 / 400-470 MHz
- GAIN
- 1 / 4.5 dBi
- VSWR
- <2.0:1
- POWER
- 40 / 25 W
- CONFIGURATION
- SISO
Order codes for CD30 — RFI VHF/UHF Dual Broad Band Antenna (148-174 / 400-470 CD30-148470-00 RFI VHF/UHF Dual Broad Band Mopole Antenna (148-174 / 400-470 MHz) CD30-148470-50 RFI VHF/UHF Dual Broad Band Antenna (148-174 / 400-470 MHz) CD30-148470-53 RFI VHF/UHF Dual Broad Band Mopole Antenna (148-174 / 400-470 MHz): MBC Base 5m No Connector

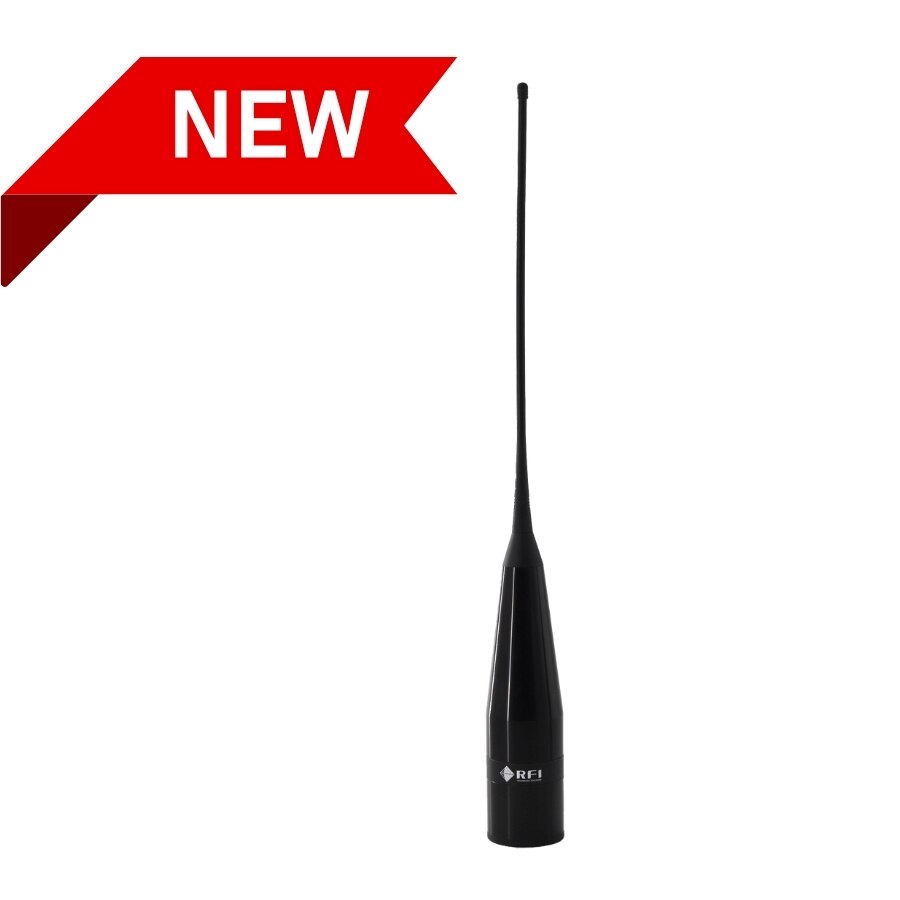

RFI Multiband VHF/UHF Mobile Antenna / MHz)
- ACROSS VARIANTS
- 136 – 960 MHz
- GAIN
- 0 / 3.8 / 3.2 dBi
- VSWR
- <2.1:1 / <3.0:1 / <2.0:1
- POWER
- 50 W
- POLARISATION
- Vertical
Order codes for CD40 — RFI Multiband VHF/UHF Mobile Antenna / MHz) CD40-136960-11 RFI Multiband VHF/UHF Mobile Antenna (136-155 / 378-520/698-960 MHz) CD40-136960-43 RFI Multiband VHF/UHF Mobile Antenna (136-155 / 378-520/698-960 MHz) CD40-148960-11 RFI Multiband VHF/UHF Mobile Antenna (148-174 / 378-520/698-960 MHz) CD40-148960-43 RFI Multiband VHF/UHF Mobile Antenna (148-174 / 380-520/698-960 MHz) RFI UHF 4dB Mopole Antenna MHz)
- ACROSS VARIANTS
- 380 – 520 MHz
- GAIN
- 4dB over a 1/4 wave dBi
- VSWR
- 13 MHz @ <1.5:1
- POWER
- 50 W
- TUNED BANDWIDTH
- 13 MHz @ <1.5:1 VSWR
Order codes for CD50 — RFI UHF 4dB Mopole Antenna MHz) CD50-65-50 RFI UHF 4dB Mopole Antenna (380-440 MHz) CD50-65-53 RFI UHF 4dB Mopole Antenna (380-440 MHz) CD50-65-70 RFI UHF 4dB Mopole Antenna (380-440 MHz) CD50-65-73 RFI UHF 4dB Mopole Antenna (380-440 MHz) CD50-68-50 RFI UHF 4dB Mopole Antenna (450-520 MHz) CD50-68-53 RFI UHF 4dB Mopole Antenna (450-520 MHz) CD50-68-70 RFI UHF 4dB Mopole Antenna (450-520 MHz) CD50-68-73 RFI UHF 4dB Mopole Antenna (450-520 MHz)
RFI UHF 4dB Mopole Antenna
- ACROSS VARIANTS
- 380 – 520 MHz
- GAIN
- 4dB over a 1/4 wave dBi
- VSWR
- 13 MHz @ <1.5:1
- POWER
- 50 W
- TUNED BANDWIDTH
- 13 MHz @ <1.5:1 VSWR

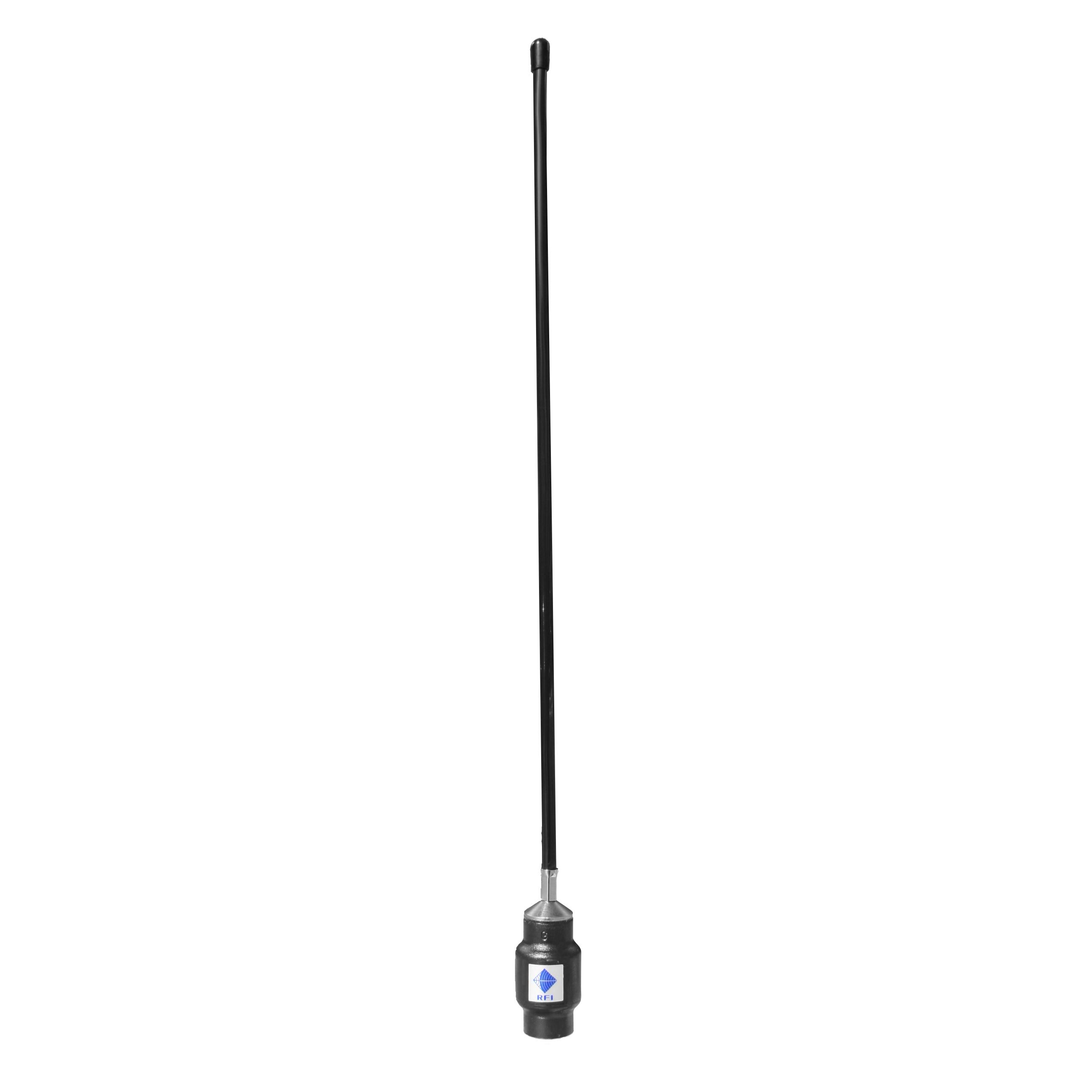

Order codes for CD51 — RFI UHF 4dB Mopole Antenna CD51-65-50 RFI UHF 4dB Mopole Antenna (380-440 MHz) CD51-65-53 RFI UHF 4dB Mopole Antenna (380-440 MHz) CD51-65-70 RFI UHF 4dB Mopole Antenna (380-440 MHz) CD51-65-73 RFI UHF 4dB Mopole Antenna (380-440 MHz): Stud Mount 5m No Connector CD51-68-50 RFI UHF 4dB Mopole Antenna (450-520 MHz) CD51-68-53 RFI UHF 4dB Mopole Antenna (450-520 MHz) CD51-68-70 RFI UHF 4dB Mopole Antenna (450-520 MHz) CD51-68-73 RFI UHF 4dB Mopole Antenna (450-520 MHz)
RFI UHF 4dB Broadband Antenna MHz)
- ACROSS VARIANTS
- 380 – 520 MHz
- GAIN
- 4.0 dBq
- POWER
- 25 W
- POLARISATION
- Vertical
- TUNED BANDWIDTH
- Full

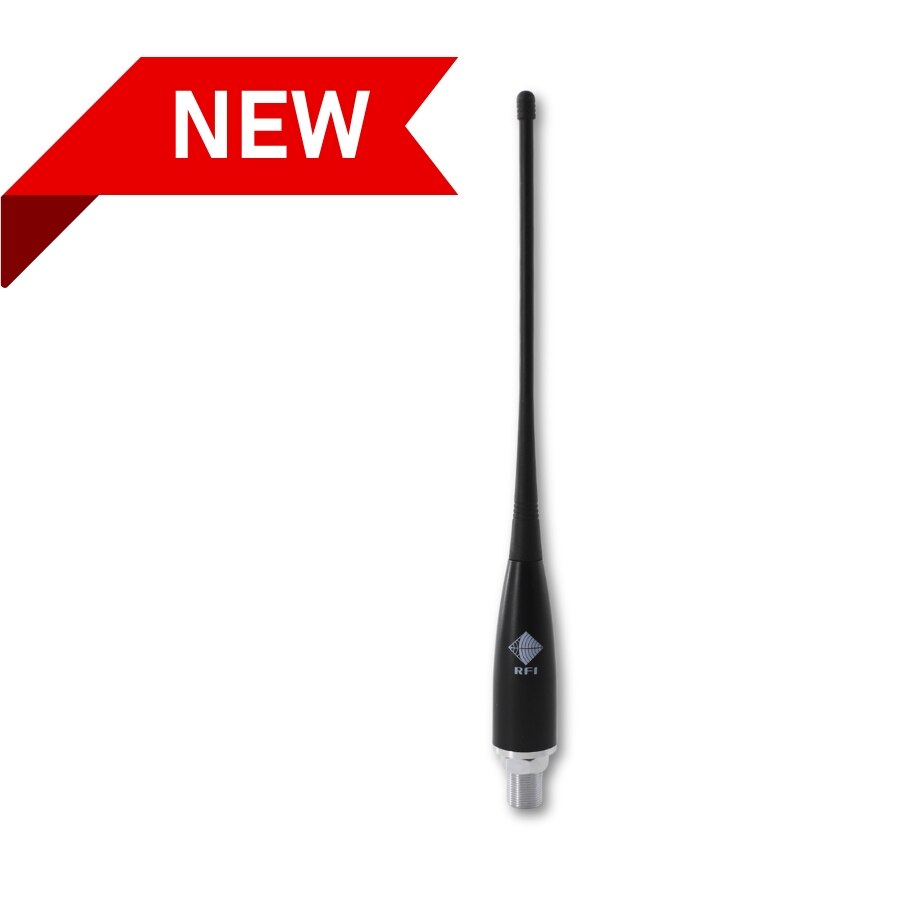

Order codes for CD61 — RFI UHF 4dB Broadband Antenna MHz) CD61-3847-00 RFI UHF 4dB Broadband Mopole Mopole Antenna (380-470 MHz) CD61-3847-30 RFI UHF 4dB Broadband Mopole Antenna (380-470 MHz) CD61-3847-50 RFI UHF 4dB Broadband Mopole Antenna (380-470 MHz) CD61-3847-53 RFI UHF 4dB Broadband Mopole Antenna (380-470 MHz) CD61-4552-00 RFI UHF 4dB Broadband Antenna (450-520 MHz) CD61-4552-30 RFI UHF 4dB Broadband Mopole Antenna (450-520 MHz) CD61-4552-50 RFI UHF 4dB Broadband Mopole Antenna (450-520 MHz) CD61-4552-53 RFI UHF 4dB Broadband Mopole Antenna (450-520 MHz) CD61-4552-60 RFI UHF 4dB Broadband Antenna (450-520 MHz)

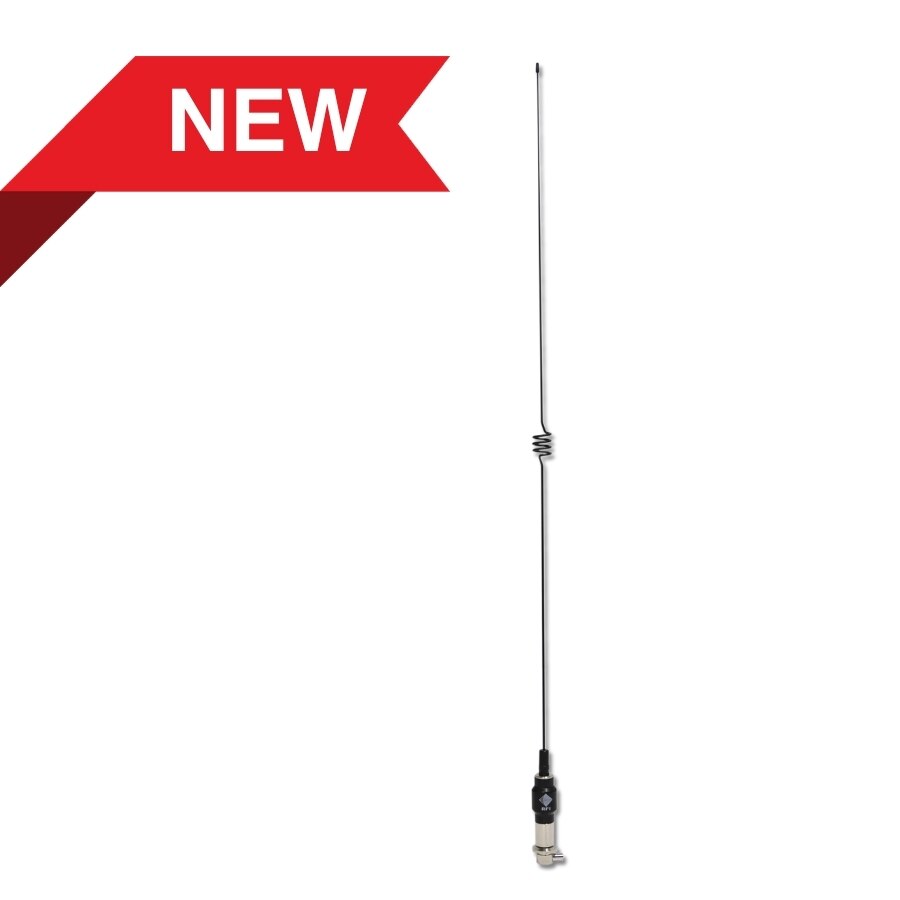

RFI CD64 UHF High Gain Mopole Antenna (450-470 MHz)
- ACROSS VARIANTS
- 450 – 470 MHz
- GAIN
- 6 dBq
- VSWR
- <1.8:1
- POWER
- 25 W
- POLARISATION
- Vertical
Order codes for CD64 — RFI CD64 UHF High Gain Mopole Antenna (450-470 MHz) CD64-4547-50 MBC Base No Cable CD64-4547-53 MBC Base-5M Cable RFI UHF 4dB E/Feed Mopole Antenna
- ACROSS VARIANTS
- 400 – 520 MHz
- VSWR
- <1.5:1
- POWER
- 100 W
- MOUNTING
- Threaded Stud
- TUNED BANDWIDTH
- Full. No tuning required
Order codes for CD91 — RFI UHF 4dB E/Feed Mopole Antenna CD91-65-70 RFI UHF 4dB E/Feed Mopole Antenna (400-420MHz) CD91-65-73 RFI UHF 4dB E/Feed Mopole Antenna (400-420 MHz) CD91-70-70 RFI UHF 4dB E/Feed Mopole Antenna (450-470MHz) CD91-70-73 RFI UHF 4dB E/Feed Mopole Antenna (450-470MHz) CD91-71-70 RFI UHF 4dB E/Feed Mopole Antenna (470-490MHz) CD91-72-70 RFI UHF 4dB E/Feed Mopole Antenna (490-520MHz) CD91-72-73 RFI UHF 4dB E/Feed Mopole Antenna (490-520MHz) RFI UHF 6.5dB E/Feed Mopole Antenna
- ACROSS VARIANTS
- 400 – 520 MHz
- POWER
- 100 W
- PACKAGING
- Poly Bag
- TUNED BANDWIDTH
- Full. No tuning required
- WHIP MATERIAL
- 17-7PH stainless steel with black high gloss finish
Order codes for CD93 — RFI UHF 6.5dB E/Feed Mopole Antenna CD93-65-70 RFI UHF 6.5dB E/Feed Mopole Antenna (400-420 MHz) CD93-70-70 RFI UHF 6.5dB E/Feed Mopole Antenna (450-470 MHz) CD93-70-73 RFI UHF 6.5dB E/Feed Mopole Antenna (450-470 MHz) CD93-71-70 RFI UHF 6.5dB E/Feed Mopole Antenna (470-490 MHz) CD93-71-73 RFI UHF 6.5dB E/Feed Mopole Antenna (470-490 MHz) CD93-72-70 RFI UHF 6.5dB E/Feed Mopole Antenna (490-520 MHz): No Cable CD93-72-73 RFI UHF 6.5dB E/Feed Mopole Antenna (490-520 MHz) - CD241-WVHF
RFI VHF Broadband Antenna (148-175MHz)
- FREQUENCY
- 148-175 MHz
- BAND
- 152-166MHz @ <1.5:1 & 147-175MHz @ <2.0:1
- GAIN
- Unity dBi
- VSWR
- <2.0:1
- POWER
- 25 W

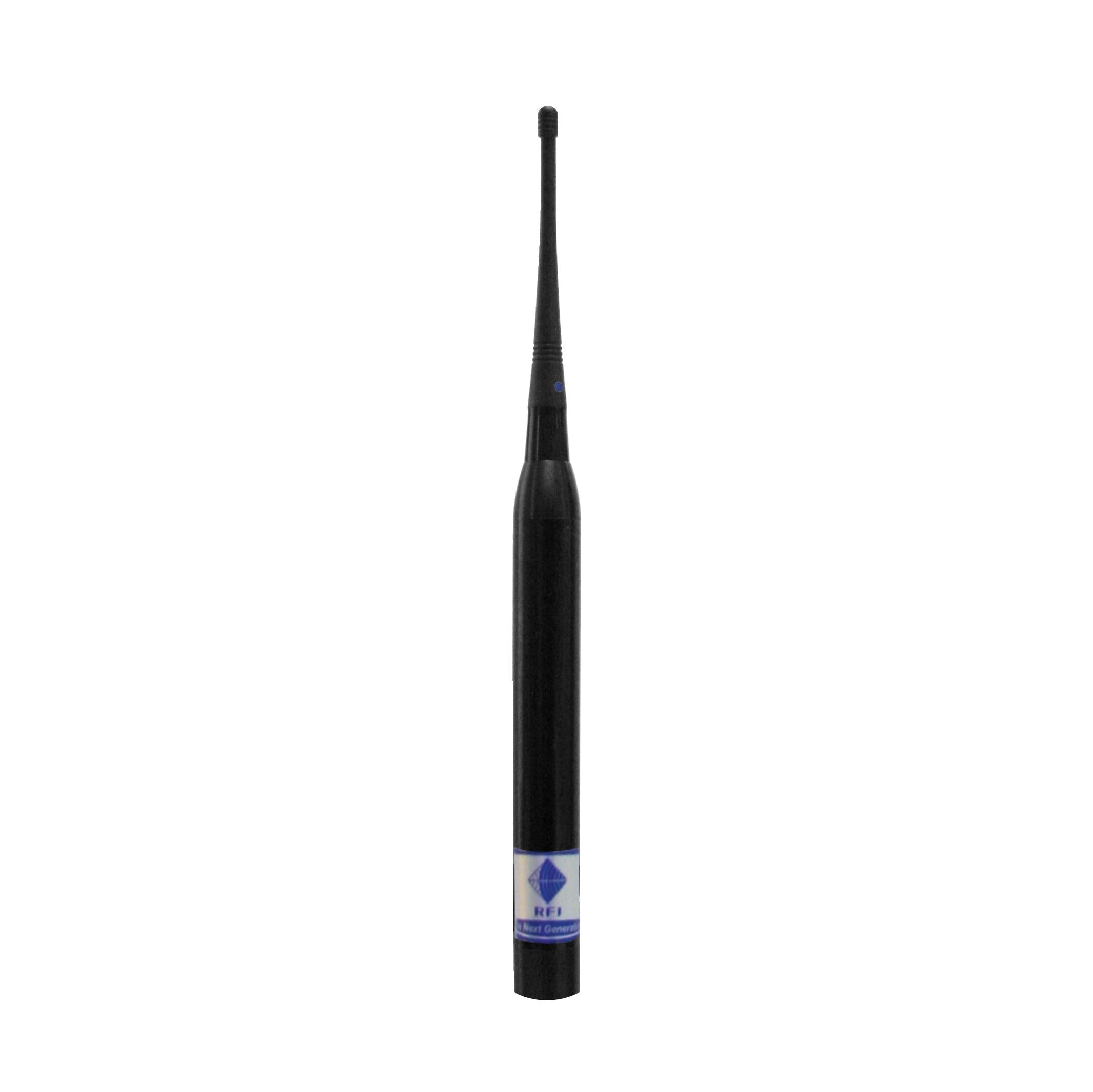

CD990-67-73UHFRFI UHF Unity Broadband E/Feed Antenna (400-520 MHz)
- FREQUENCY
- 400-520 MHz
- GAIN
- 2 dBi
- VSWR
- <1.5:1
- POWER
- 100 W
- FINISH
- Black Chrome

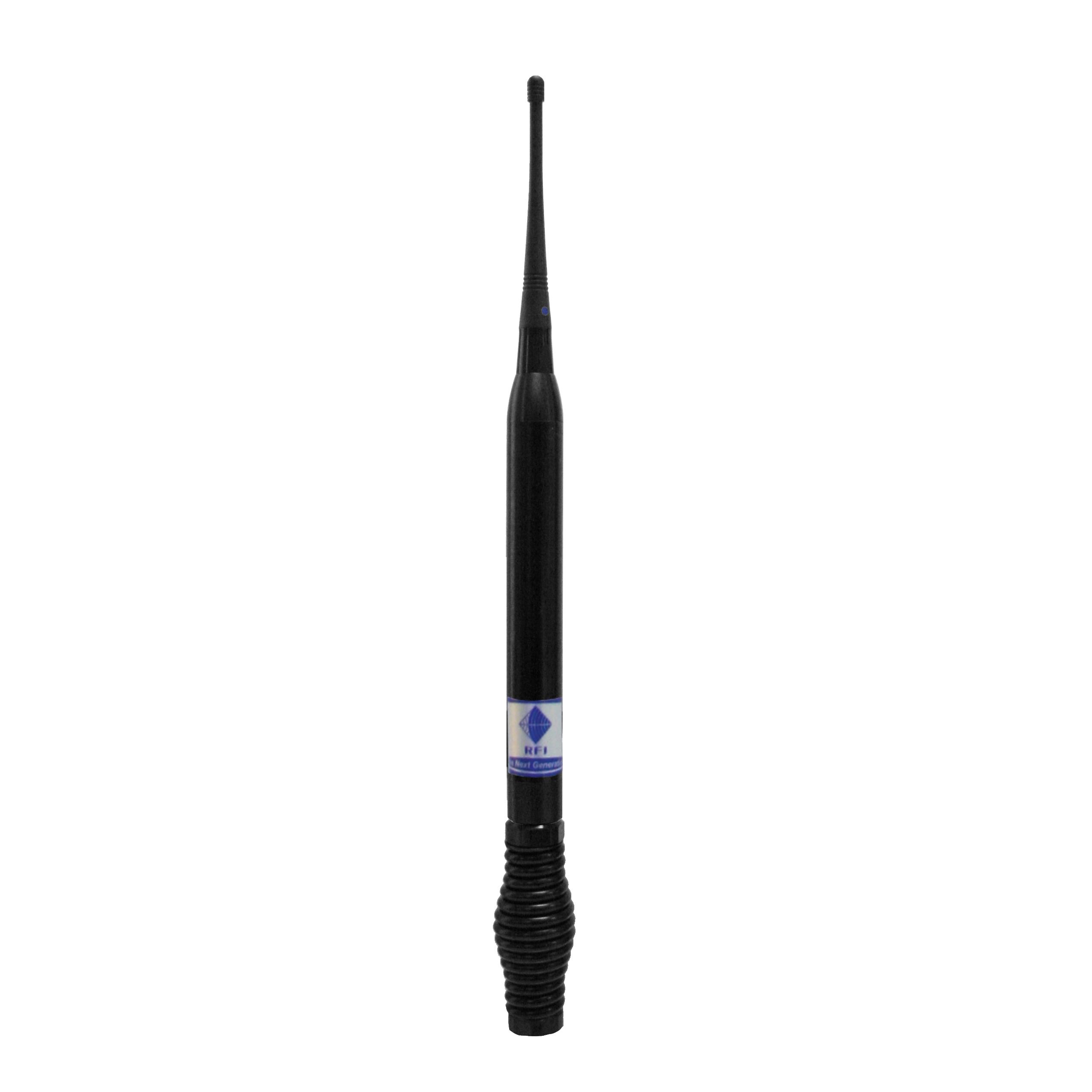

CD991-67-73UHFRFI UHF Unity Broadband E/Feed Antenna (400-520 MHz)
- FREQUENCY
- 400-520 MHz
- GAIN
- 2 dBi
- VSWR
- <1.5:1
- POWER
- 100 W
- FINISH
- Black Chrome
- CD992-67-73UHF
RFI UHF Unity Broadband E/Feed Antenna (400-520 MHz)
- FREQUENCY
- 400-520 MHz
- GAIN
- 2 dBi
- VSWR
- <1.5:1
- POWER
- 100 W
- POLARISATION
- Vertical
- CD993-67-73UHF
RFI UHF Unity Broadband E/Feed Antenna (400-520 MHz)
- FREQUENCY
- 400-520 MHz
- GAIN
- 2 dBi
- VSWR
- <1.5:1
- POWER
- 100 W
- POLARISATION
- Vertical
- COD2-159172VHF
VHF Enclosed Dipole Antenna 159-172 MHz, Full Band
- FREQUENCY
- 140 - 205 MHz
- TERMINATION
- N female bulkhead
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 78
- COD2BVHF
COAXIAL DIPOLE 140-205 MHZ SPECIFY FREQUENCY
- FREQUENCY
- 136 - 240 MHz
- POWER
- 100 W
- TERMINATION
- N Female Bulkhead
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
Dipole
- ACROSS VARIANTS
- 330 – 490 MHz
- POWER
- 100 W
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- MOUNTING
- 100mm x 25mm diam. alodined aluminium

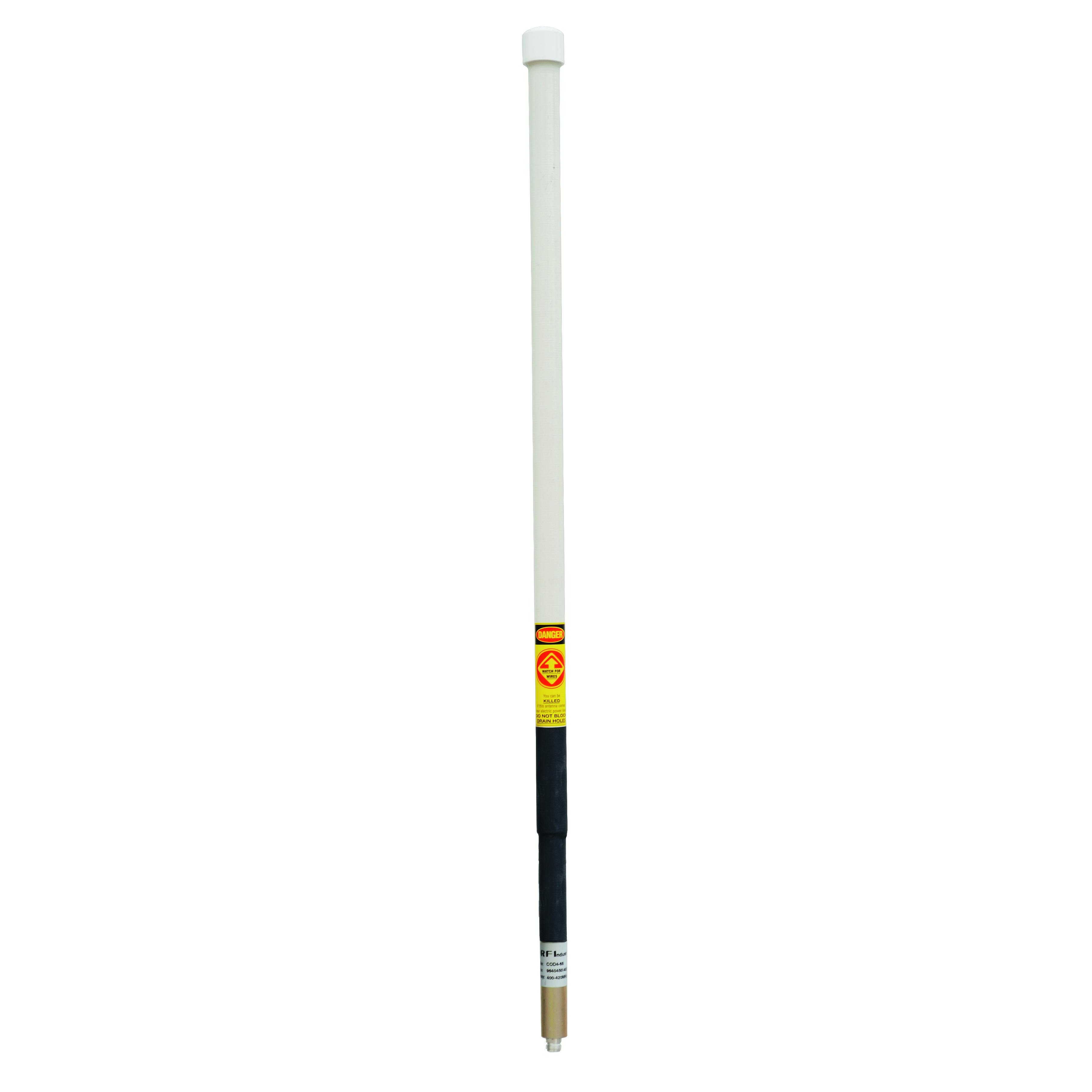

Order codes for COD4 — Dipole COD4-99 UHF Enclosed Dipole 330-380MHz Custom Tuned COD4-3847 Unity Gain Broadband Dipole Antenna 380-470MHz COD4-4552 Unity Gain Broadband Dipole Antenna 450-520MHz Dipole
- ACROSS VARIANTS
- 600 – 960 MHz
- POWER
- 100 W
- TERMINATION
- N female bulkhead
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
Order codes for COD8 — Dipole COD8-99 UHF Enclosed Dipole 600-960MHz Custom Tuned COD8-7687 Unity Gain Broadband Dipole Antenna 760-870MHz - COD14VHF
VHF Enclosed Dipole 66-140MHz Custom Tuned - 2.5kg
- FREQUENCY
- 66 - 140 MHz
- TERMINATION
- N female bulkhead
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 76°
- COD30VHF
VHF Enclosed Dipole 30-50MHz Custom Tuned
- FREQUENCY
- 30 - 50 MHz
- TERMINATION
- N female bulkhead
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 77°
- COL1VHF
VHF Collinear 67-108MHz Custom Tuned
- FREQUENCY
- 67 - 108 MHz
- VSWR
- <1.5:1
- POWER
- 200 W
- TERMINATION
- N female bulkhead
- POLARISATION
- Vertical

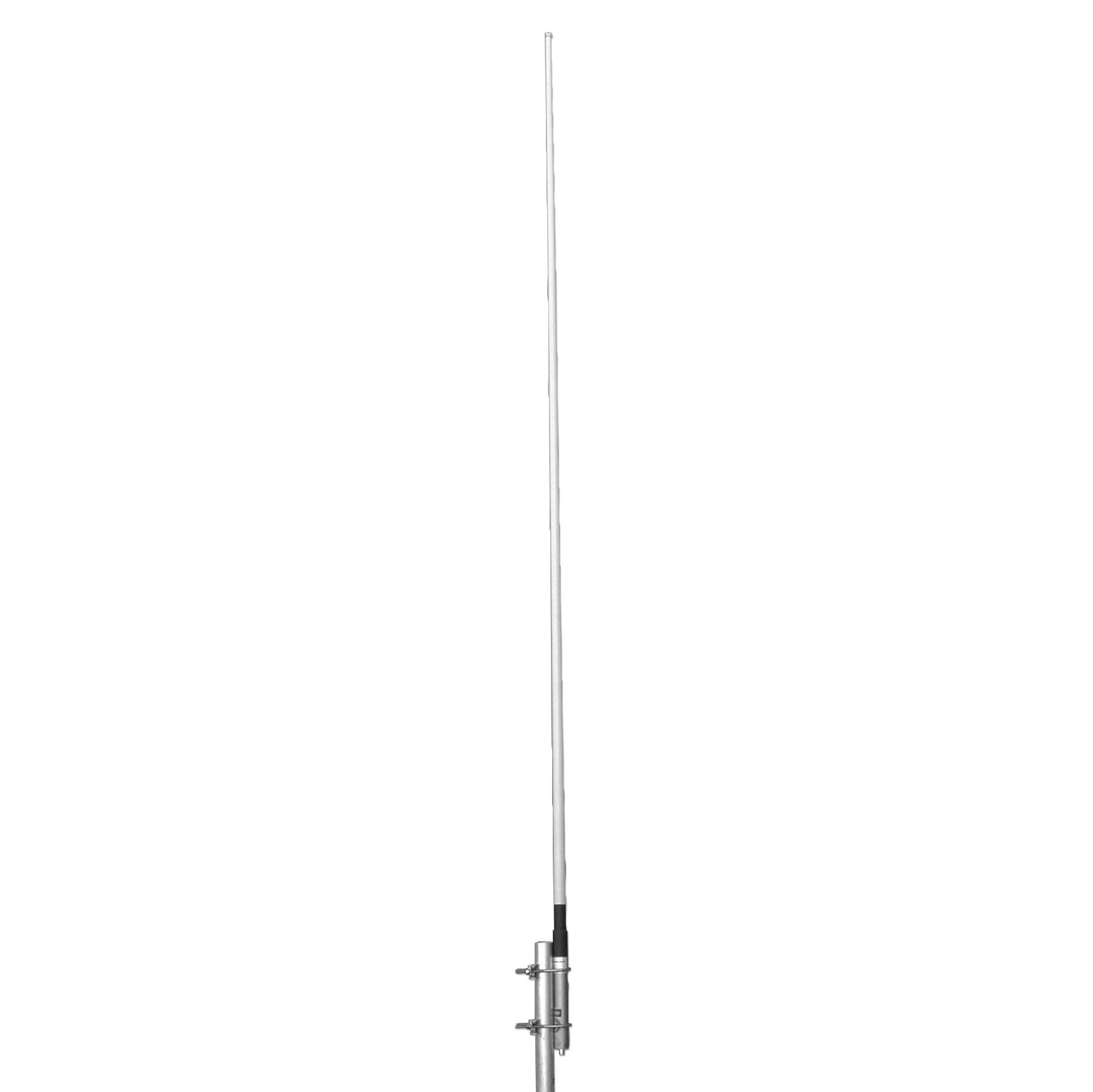

COL3VHFVHF Collinear 144-175MHz Custom Tuned - 3 dBd
- FREQUENCY
- 144 - 175 MHz
- VSWR
- <1.5:1
- POWER
- 200 W
- TERMINATION
- N female bulkhead. For COL17 see note (1)
- POLARISATION
- Vertical
- COL7UHF
UHF Collinear 380-530MHz Custom Tuned - 3dBd
- FREQUENCY
- 380 - 530 MHz
- VSWR
- <1.5:1
- POWER
- 150 W
- TERMINATION
- N female bulkhead
- POLARISATION
- Vertical
- COL8UHF
UHF Collinear Antenna 380-530MHz Custom Tuned - 6dBd
- FREQUENCY
- 380-530 MHz
- VSWR
- <1.5:1
- POWER
- 200 W
- TERMINATION
- N female bulkhead
- POLARISATION
- Vertical
