330 PRODUCTS

Multicoupling & Monitoring

118 series · 330 parts

BAND
  • CS0496VHF6 VARIANTS

    RFI Short Haul Control Station Combiner 40-960MHz

    FREQUENCY RANGE
    40 - 960
    CONNECTOR
    N(F)
    OPERATING TEMPERATURE
    -30° C to +60° C / -22° F to 140° F
    RETURN LOSS
    15dB (min)
    Order codes for CS0496 — RFI Short Haul Control Station Combiner 40-960MHz
    CS0496-0405-31RFI Short Haul Control Station Combiner 40-960MHz, 4 Ports
    CS0496-0405-EXRFI Short Haul Control Station Combiner 40-960MHz, Expansion Deck
    CS0496-0805-31RFI Short Haul Control Station Combiner 40-960MHz, 8 Ports
    CS0496-0805-EPRFI Short Haul Control Station Combiner 40-960MHz, 8 Ports, with EXP Port
    CS0496-1605-31RFI Short Haul Control Station Combiner 40-960MHz, 16 Ports
    CS0496-2405-31RFI Short Haul Control Station Combiner 40-960MHz, 24 Ports
  • CS1315-0405-SNVHF

    RFI Control Station Combiner 132-150MHz, 4 Ports, Single Port Radio

    FREQUENCY
    Tx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz Rx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz
    FREQUENCY RANGE
    130 - 150, 150 - 175, 380 - 450, 400 - 470, 450 - 520
    CONNECTOR
    N(F)
    FINISH
    Black
    ISOLATION
    Tx to Tx: 60min, 70 typ; Ant - Tx: 60min, 70 typ Rx to Rx: 60min, 70 typ
  • CS1517VHF2 VARIANTS

    RFI Control Station Combiner 150-174MHz, Ports, Single Port Radio

    FREQUENCY
    Tx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz Rx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz
    FREQUENCY RANGE
    130 - 150, 150 - 175, 380 - 450, 400 - 470, 450 - 520
    CONNECTOR
    N(F)
    FINISH
    Black
    ISOLATION
    Tx to Tx: 60min, 70 typ; Ant - Tx: 60min, 70 typ Rx to Rx: 60min, 70 typ
    Order codes for CS1517 — RFI Control Station Combiner 150-174MHz, Ports, Single Port Radio
    CS1517-0405-SNRFI Control Station Combiner 150-174MHz, 4 Ports, Single Port Radio
    CS1517-0805-SNRFI Control Station Combiner 150-174MHz, 8 Ports, Single Port Radio
  • CS3338-0405-SNUHF

    RFI Control Station Combiner 330-380MHz, 4 Ports, Single Port Radio

    FREQUENCY RANGE
    330 - 380
    CONNECTOR
    N(F)
    OPERATING TEMPERATURE
    -30° C to +60° C / -22° F to 140° F
    INSERTION LOSS
    7.5dB (typ.)
    DIMENSIONS
    H=1RU W=483 D=130-150, 150-175 MHz = 560, 380-450, 400-470, 450-520 MHz = 420 / H=1RU W=19 D= 130-150, 150-175 MHz = 16.5 22, 380-450, 400-470, 450-520 MHz =
  • CS3845VHF4 VARIANTS

    RFI Control Station Combiner 380-450MHz, Ports, Single Port Radio

    FREQUENCY
    Tx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz Rx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz
    FREQUENCY RANGE
    130 - 150, 150 - 175, 380 - 450, 400 - 470, 450 - 520
    CONNECTOR
    N(F)
    FINISH
    Black
    ISOLATION
    Tx to Tx: 60min, 70 typ; Ant - Tx: 60min, 70 typ Rx to Rx: 60min, 70 typ
    Order codes for CS3845 — RFI Control Station Combiner 380-450MHz, Ports, Single Port Radio
    CS3845-0405-SNRFI Control Station Combiner 380-450MHz, 4 Ports, Single Port Radio
    CS3845-0805-SNRFI Control Station Combiner 380-450MHz, 8 Ports, Single Port Radio
    CS3845-1205-SNRFI Control Station Combiner 380-450MHz, 12 Ports, Single Port Radio
    CS3845-1605-SNRFI Control Station Combiner 380-450MHz, 16 Ports, Single Port Radio
  • CS4047VHF2 VARIANTS

    RFI Control Station Combiner 400-470MHz, Ports, Single Port Radio

    FREQUENCY
    Tx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz Rx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz
    FREQUENCY RANGE
    130 - 150, 150 - 175, 380 - 450, 400 - 470, 450 - 520
    CONNECTOR
    N(F)
    FINISH
    Black
    ISOLATION
    Tx to Tx: 60min, 70 typ; Ant - Tx: 60min, 70 typ Rx to Rx: 60min, 70 typ
    Order codes for CS4047 — RFI Control Station Combiner 400-470MHz, Ports, Single Port Radio
    CS4047-0405-SNRFI Control Station Combiner 400-470MHz, 4 Ports, Single Port Radio
    CS4047-0805-SNRFI Control Station Combiner 400-470MHz, 8 Ports, Single Port Radio
  • CS4552VHF3 VARIANTS

    RFI Control Station Combiner 450-520MHz, Ports, Single Port Radio

    FREQUENCY
    Tx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz Rx: 130-150, 150-175, 380-450, 400-470, 450-520 MHz
    FREQUENCY RANGE
    130 - 150, 150 - 175, 380 - 450, 400 - 470, 450 - 520
    CONNECTOR
    N(F)
    FINISH
    Black
    ISOLATION
    Tx to Tx: 60min, 70 typ; Ant - Tx: 60min, 70 typ Rx to Rx: 60min, 70 typ
    Order codes for CS4552 — RFI Control Station Combiner 450-520MHz, Ports, Single Port Radio
    CS4552-0405-SNRFI Control Station Combiner 450-520MHz, 4 Ports, Single Port Radio
    CS4552-1205-SNRFI Control Station Combiner 450-520MHz, 12 Ports, Single Port Radio
    CS4552-1605-SNRFI Control Station Combiner 450-520MHz, 16 Ports, Single Port Radio

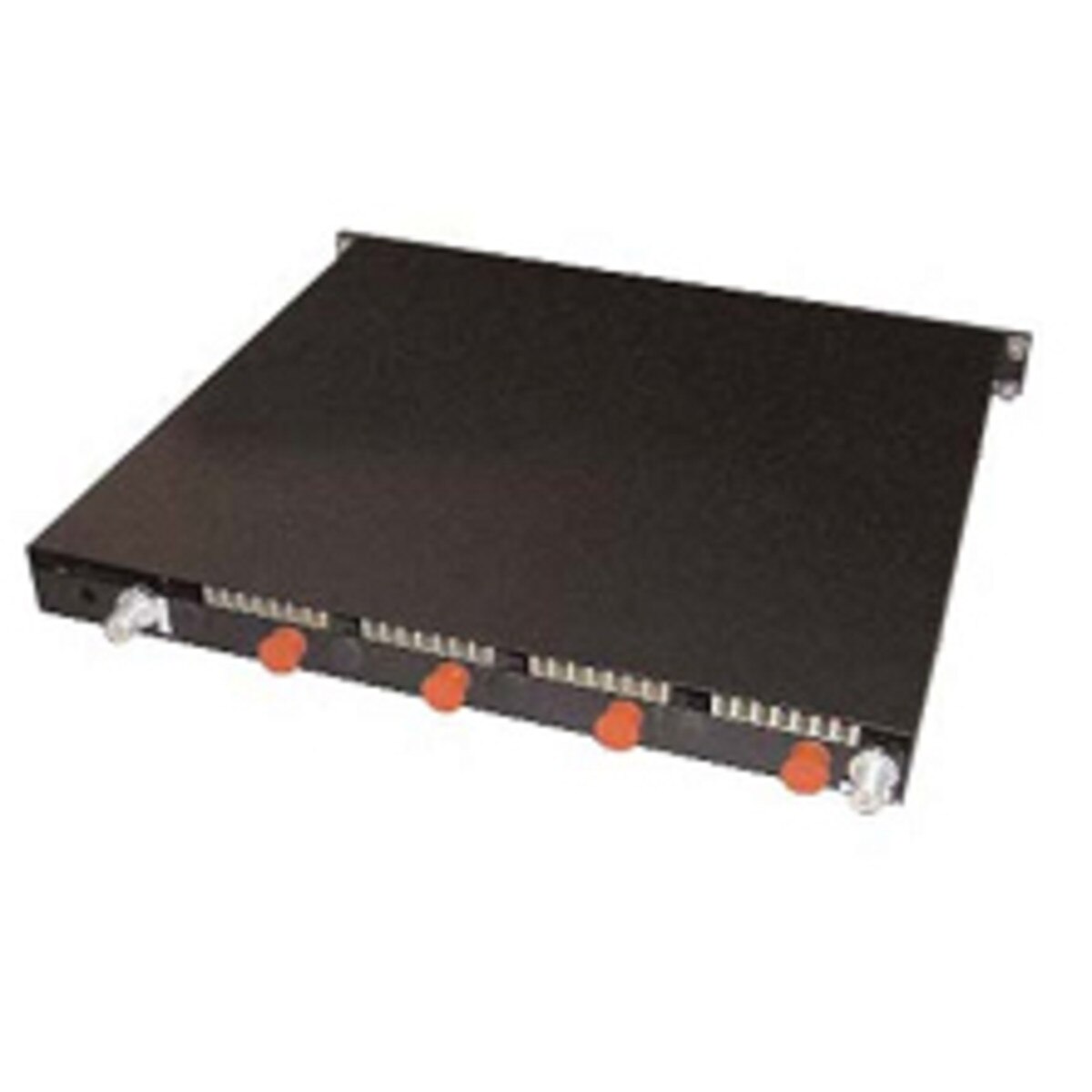

  • CS7486700/8004 VARIANTS

    RFI Control Station Combiner 746-869MHz, Ports, Single Port

    FREQUENCY RANGE
    746 - 869
    CONNECTOR
    N(F)
    OPERATING TEMPERATURE
    -30° C to +60° C / -22° F to 140° F
    Order codes for CS7486 — RFI Control Station Combiner 746-869MHz, Ports, Single Port
    CS7486-0405-SNRFI Control Station Combiner 746-869MHz, 4 Ports, Single Port Radio
    CS7486-0805-SNRFI Control Station Combiner 746-869MHz, 8 Ports, Single Port Radio
    CS7486-1205-SPRFI Control Station Combiner 746-869MHz, 12 Ports, Single Port Radio, with RX Pre-Amp
    CS7486-1605-SNRFI Control Station Combiner 746-869MHz, 16 Ports, Single Port Radio
  • CS8996700/8003 VARIANTS

    RFI Control Station Combiner 896-960MHz, Ports, Single Port Radio

    FREQUENCY RANGE
    896 - 960
    CONNECTOR
    N(F)
    OPERATING TEMPERATURE
    -30° C to +60° C / -22° F to 140° F
    Order codes for CS8996 — RFI Control Station Combiner 896-960MHz, Ports, Single Port Radio
    CS8996-0805-SNRFI Control Station Combiner 896-960MHz, 8 Ports, Single Port Radio
    CS8996-1605-SNRFI Control Station Combiner 896-960MHz, 16 Ports, Single Port Radio
    CS8996-3205-SNRFI Control Station Combiner 896-960MHz, 32 Ports, Single Port Radio
  • DP1317-3445-31VHF

    RFI Duplexer, Bandpass / Band Reject, 136-174MHz, 0.6MHz~1.5MHz T/R, 350W, N(F), 5RU

    FREQUENCY RANGE
    136 - 174
    BAND
    136-174MHz
    CONNECTOR
    N(F)
    ISOLATION
    90dB (min)
    CONSTRUCTION
    5RU front panel
  • DP1416-5164-NRVHF

    RFI Duplexer, Mobile Notch 140-160MHz, 4.6 MHz T/R (fixed), 50W

    FREQUENCY RANGE
    140 - 160
    CONNECTOR
    N(F)
    FINISH
    Painted Black
    MOUNTING
    Flat Surface Mounting
    OPERATING TEMPERATURE
    -30° C to +60° C / -22° F to 140° F
  • DP1515VHF2 VARIANTS

    RFI

    ACROSS VARIANTS
    148 – 159 MHz
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    INSERTION LOSS
    1.5(max)
    Order codes for DP1515 — RFI
    DP1515-0881-32RFI Duplexer, Bandpass 148-159MHz, 1MHz PassBand, 4-10MHz T/R, 75W, 4RU
    DP1515-0882-32RFI Duplexer ,Bandpass 151-157MHz, 2MHz Pass Bandwidth, 2.5MHz T/R ,200W ,4RU
  • DP1516VHF2 VARIANTS

    RFI

    ACROSS VARIANTS
    158 – 164 MHz
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    INSERTION LOSS
    1.5(max)
    Order codes for DP1516 — RFI
    DP1516-0881-32RFI Duplexer, Bandpass 155-166MHz, 1MHz PassBand, 4-10MHz T/R, 75W, 4RU
    DP1516-0882-32RFI Duplexer ,Bandpass 158-164MHz, 2MHz Pass Bandwidth, 2.5MHz T/R ,200W ,4RU
  • DP1517VHF5 VARIANTS

    RFI Duplexer, Bandpass 151-172MHz, 1MHz Pass Bandwidth, ** 21MHz T/R SPLIT **,75W, 4RU

    ACROSS VARIANTS
    150 – 174 MHz
    CONNECTOR
    N(F)
    Order codes for DP1517 — RFI Duplexer, Bandpass 151-172MHz, 1MHz Pass Bandwidth, ** 21MHz T/R SPLIT **,75W, 4RU
    DP1517-0881-32RFI Duplexer, Bandpass 151-172MHz, 1MHz Pass Bandwidth, ** 21MHz T/R SPLIT **,75W, 4RU
    DP1517-0882-32RFI Duplexer, Bandpass 151-172MHz, 2MHz Pass Bandwidth, *21MHz T/R*, 200W, 4RU
    DP1517-5131-BRDuplexer Band Reject, 150-174-MHz, 21MHz split, 3MHz Reject Band, 20W
    DP1517-5164-NRRFI Duplexer, Mobile Notch 150-174MHz, 4.6MHz T/R, 50W
    DP1517-5166-NRRFI Duplexer, Mobile Notch 150-174MHz, 6.8MHz T/R (fixed), 50W
  • DP1616VHF2 VARIANTS

    RFI Duplexer ,Bandpass Pass Bandwidth, T/R ,4RU

    ACROSS VARIANTS
    159 – 171 MHz
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    INSERTION LOSS
    1.5(max)
    Order codes for DP1616 — RFI Duplexer ,Bandpass Pass Bandwidth, T/R ,4RU
    DP1616-0881-32RFI Duplexer ,Bandpass 159-170MHz, 1MHz Pass Bandwidth, 4MHz T/R ,75W ,4RU
    DP1616-0882-32RFI Duplexer ,Bandpass 164-171MHz, 2MHz Pass Bandwidth, 3.5MHz T/R ,200W ,4RU
  • DP1617VHF2 VARIANTS

    RFI Pass Bandwidth, T/R

    ACROSS VARIANTS
    166 – 173 MHz
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    INSERTION LOSS
    1.5(max)
    Order codes for DP1617 — RFI Pass Bandwidth, T/R
    DP1617-0881-32RFI Duplexer, Bandpass 164-175MHz, 1MHz Pass Bandwidth, 4-10MHz T/R ,75W, 4RU
    DP1617-0882-32RFI Duplexer ,Bandpass 166-173MHz, 2MHz Pass Bandwidth, 3MHz T/R ,200W ,4RU
  • DP3840UHF2 VARIANTS

    RFI Duplexer ,Bandpass 380-400MHz, Pass Bandwidth, T/R ,100W ,2RU

    FREQUENCY RANGE
    380 - 400
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    OPERATING TEMPERATURE
    -30 to +60 C / -22 to +140 F
    INSERTION LOSS
    1.7(max)
    Order codes for DP3840 — RFI Duplexer ,Bandpass 380-400MHz, Pass Bandwidth, T/R ,100W ,2RU
    DP3840-0806-32RFI Duplexer ,Bandpass 380-400MHz, 5MHz Pass Bandwidth, 4MHz T/R ,100W ,2RU
    DP3840-0811-32RFI Duplexer ,Bandpass 380-400MHz, 1.5MHz Pass Bandwidth, 4-5MHz T/R only ,100W ,2RU
  • DP4042UHF4 VARIANTS

    RFI

    FREQUENCY RANGE
    400 - 420
    CONNECTOR
    N(F)
    Order codes for DP4042 — RFI
    DP4042-0804-32RFI Duplexer, Bandpass 400-420MHz, 2MHz Pass Bandwidth, 5MHz min T/R, 100W, 2RU
    DP4042-0808-32RFI Duplexer ,Bandpass 400-420MHz ,100W, 6.45MHz PB
    DP4042-5166-NRRFI Duplexer ,Mobile Notch 400-420MHz, 6MHz T/R ,50W
    DP4042-5169-NRRFI Duplexer, Mobile Notch 400-420MHz, 9.5MHz T/R, 50W
  • DP4043UHF3 VARIANTS

    RFI Duplexer, Bandpass 400-430MHz, Pass Bandwidth, 2RU

    FREQUENCY RANGE
    400 - 430
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    OPERATING TEMPERATURE
    -30 to +60 C / -22 to +140 F
    Order codes for DP4043 — RFI Duplexer, Bandpass 400-430MHz, Pass Bandwidth, 2RU
    DP4043-0800-32RFI Duplexer, Bandpass 400-430MHz, 3MHz Pass Bandwidth, 3-10MHz T/R, 250W, 2RU
    DP4043-0806-32RFI Duplexer, Bandpass 400-430MHz, 5MHz Pass Bandwidth, 4-15MHz T/R, 100W, 2RU
    DP4043-0811-32RFI Duplexer, Bandpass 400-430MHz, 1.5MHz Pass Bandwidth, ** 4-5MHz T/R ONLY ** 100W, 2RU
  • DP4143-0804-32UHF

    RFI Duplexer ,Bandpass 410-430MHz, 1.5MHz Pass Bandwidth, 5MHz T/R ,100W ,2RU

    FREQUENCY
    410/430 MHz
    FREQUENCY RANGE
    410 - 430
    CONNECTOR
    N(F)
    FINISH
    Painted Black
    FILTER TYPE
    Band Pass
  • DP4345UHF2 VARIANTS

    RFI Duplexer ,Bandpass 430-450MHz, 4MHz T/R ,100W ,2RU

    FREQUENCY RANGE
    430 - 450
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    OPERATING TEMPERATURE
    -30 to +60 C / -22 to +140 F
    INSERTION LOSS
    1.7(max)
    Order codes for DP4345 — RFI Duplexer ,Bandpass 430-450MHz, 4MHz T/R ,100W ,2RU
    DP4345-0806-32RFI Duplexer ,Bandpass 430-450MHz, 5MHz Pass Bandwidth, 4MHz T/R ,100W ,2RU
    DP4345-0811-32RFI Duplexer ,Bandpass 430-450MHz, 1.5MHz PB, 4MHz T/R ,100W ,2RU
  • DP4547UHF5 VARIANTS

    RFI 450-470MHz

    FREQUENCY RANGE
    450 - 470
    CONNECTOR
    N(F)
    Order codes for DP4547 — RFI 450-470MHz
    DP4547-0800-32RFI Duplexer, Bandpass 450-470MHz, 3MHz Pass Bandwidth, 3-10MHz T/R, 250W, 2RU
    DP4547-0804-32RFI Duplexer, Bandpass 450-470MHz, 2MHz Pass Bandwidth, 5-10MHz T/R, 100W, 2RU
    DP4547-0806-32RFI Duplexer, Bandpass 450-470MHz, 5MHz Pass Bandwidth, 4-15 MHz T/R, 100W, 2RU
    DP4547-0811-32RFI Duplexer ,Bandpass 450-470MHz, 1.5MHz Pass Bandwidth, 4-5MHz T/R Only ,100W ,2RU
    DP4547-5169-NRRFI Duplexer, Mobile Notch 450-470MHz, 9.5MHz T/R, 50W
  • DP4749-3462-32UHF

    RFI CB Duplexer, UHF, BP/BR, 470-490MHz, 0.75MHz T/R, 100W, N(f), 5RU

    FREQUENCY RANGE
    470 - 490
    BAND
    470 / 490 MHz
    CONNECTOR
    N(F)
    FILTER TYPE
    Band Pass/Reject
    ISOLATION
    90dB (min)
  • DP4750UHF5 VARIANTS

    RFI 470-500MHz

    FREQUENCY RANGE
    470 - 500
    CONNECTOR
    N(F)
    Order codes for DP4750 — RFI 470-500MHz
    DP4750-0800-32RFI Duplexer, Bandpass 470-500MHz, 3MHz Pass Bandwidth, 3-10MHz T/R, 250W, 2RU
    DP4750-0804-32RFI Duplexer, Bandpass 470-500MHz, 2MHz Pass Bandwidth, 5MHz T/R, Tuning Range 470~495MHz / 475~500MHz (Lo/High) Pass Bandwidth: 1.5 ~2MHz T / R Spacing : 5~10MHz (adjustable)
    DP4750-0806-32RFI Duplexer ,Bandpass 470-500MHz, 5MHz Pass Bandwidth, 4MHz T/R ,100W ,2RU
    DP4750-0811-32RFI Duplexer, Bandpass 470-500MHz, 1.5MHz Pass Bandwidth, 4-5MHz T/R Only (fixed), 100W, 2RU
    DP4750-5165-NRRFI Duplexer, Mobile Notch 470-500MHz, 5.2MHz T/R, 50W
  • DP5052UHF5 VARIANTS

    RFI Duplexer, 500-520MHz

    ACROSS VARIANTS
    500 – 520 MHz
    CONNECTOR
    N(F)
    Order codes for DP5052 — RFI Duplexer, 500-520MHz
    DP5052-0800-32RFI Duplexer, Bandpass 500-520MHz, 3-10MHz Pass Bandwidth, 3MHz T/R, 250W, 2RU
    DP5052-0804-32RFI Duplexer, Bandpass 500-520MHz, 2MHz Pass Bandwidth, 5-10MHz T/R, 50W, 2RU
    DP5052-0806-32RFI Duplexer, Bandpass 500-520MHz, 5MHz Pass Bandwidth, 4-15MHz T/R, 100W, 2RU
    DP5052-0811-32RFI Duplexer, Bandpass 500-520MHz, 1.5MHz Pass Bandwidth, ** 4MHz T/R ONLY**, 100W, 2RU
    DP5052-5160-NRRFI Duplexer, Mobile Notch 500-520MHz, 10MHz T/R, (Fixed) 50W
  • DP8086700/8002 VARIANTS

    RFI Duplexer ,Bandpass 806-870MHz ,2RU

    ACROSS VARIANTS
    806 – 870 MHz
    CONNECTOR
    N(F)
    Order codes for DP8086 — RFI Duplexer ,Bandpass 806-870MHz ,2RU
    DP8086-0801-32RFI Duplexer ,Bandpass 806-870MHz ,100W ,2RU
    DP8086-0805-32RFI Duplexer ,Bandpass 806-870MHz ,500W ,2RU
  • CV1013VHF4 VARIANTS

    RFI Cavity Filter, inch, 108-136MHz

    FREQUENCY
    108-136 MHz
    FREQUENCY RANGE
    108 - 136
    COMPONENT TYPE
    Cavity Filter
    INSERTION LOSS
    0.5 - 3.0
    Order codes for CV1013 — RFI Cavity Filter, inch, 108-136MHz
    CV1013-0111-11RFI Cavity Filter, 10 inch, Band Pass 108-136MHz
    CV1013-0611-11RFI Cavity Filter, 6 inch, Band Pass 108-136MHz
    CV1013-4611-11RFI Cavity Filter, 6 inch, Pass/Reject, High Pass, 108-136MHz
    CV1013-5611-11RFI Cavity Filter, 6 inch, Pass/Reject, Low Pass, 108-136MHz
  • CV1417VHF7 VARIANTS

    RFI Cavity Filter, 4 inch, Band Pass 144-174MHz, BNC(f)

    FREQUENCY RANGE
    144 - 174
    COMPONENT TYPE
    Cavity Filter
    Order codes for CV1417 — RFI Cavity Filter, 4 inch, Band Pass 144-174MHz, BNC(f)
    CV1417-0411-11RFI Cavity Filter, 4 inch, Band Pass 144-174MHz, BNC(f)
    CV1417-0611-11FILTER BP 144-174MHZ 1/4 W 6 INCH
    CV1417-2611-11RFI Cavity Filter, 6 inch, Series Notch, Low Pass, 144-174MHz
    CV1417-4111-11RFI Cavity Filter, 10inch, Pass/Reject, High Pass, 144-174MHz
    CV1417-4611-11RFI Cavity Filter, 6 inch, Pass/Reject, High Pass, 144-174MHz
    CV1417-5111-11RFI Cavity Filter, 10inch, Pass/Reject, Low Pass, 144-174MHz
    CV1417-5211-11RFI Cavity Filter, 2x2 inch, Band Pass/ Band Reject, Low Pass, 144-174MHz
  • CV3040-0611-11UHF

    RFI Cavity Filter, 6 inch, Band Pass 300-400MHz

    FREQUENCY
    300-400 MHz
    FREQUENCY RANGE
    300 - 400
    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Cavity Filter
    INSERTION LOSS
    0.5 - 3.0
  • CV4052-0411-11UHF

    RFI Cavity Filter, 4 inch, Band Pass 400-520MHz

    FREQUENCY
    400-520 MHz
    FREQUENCY RANGE
    400 - 520
    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Cavity Filter
    INSERTION LOSS
    0.5 - 3.0
  • CV4055UHF3 VARIANTS

    RFI Cavity Filter, 6 inch, 400-550MHz

    FREQUENCY
    400-550 MHz
    FREQUENCY RANGE
    400 - 550
    COMPONENT TYPE
    Cavity Filter
    INSERTION LOSS
    0.5 - 3.0
    Order codes for CV4055 — RFI Cavity Filter, 6 inch, 400-550MHz
    CV4055-0611-11RFI Cavity Filter, 6 inch, Band Pass 400-550MHz
    CV4055-1611-11RFI Cavity Filter, 6 inch, Series Notch, High Pass, 400-550MHz
    CV4055-2611-11RFI Cavity Filter, 6 inch, Series Notch, Low Pass, 400-550MHz
  • PF4043UHF3 VARIANTS

    RFI Post Tx Filter 410-430MHz, Pass Bandwidth 5MHz, 3RU, Multi-Carrier

    FREQUENCY RANGE
    410 - 430
    COMPONENT TYPE
    Milled Filter
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    INSERTION LOSS
    1.5 (typ.)
    RETURN LOSS
    18 (typ.)
    Order codes for PF4043 — RFI Post Tx Filter 410-430MHz, Pass Bandwidth 5MHz, 3RU, Multi-Carrier
    PF4043-P151-32DRFI Post Tx Filter 410-430MHz, 1000W, DIN(F), Pass Bandwidth 5MHz, 3RU, Multi-Carrier
    PF4043-P553-32-4.3RFI Post Tx Filter 410-430MHz, 500W, 4.3-10(F), Pass Bandwidth 5MHz, 3RU, Multi-Carrier
    PF4043-P553-32DRFI Post Tx Filter 410-430MHz, 500W, DIN(F), Pass Bandwidth 5MHz, 3RU, Multi-Carrier
  • PF4547UHF2 VARIANTS

    RFI Post Tx Filter 450-470MHz, 500W, Pass Bandwidth 5MHz, 3RU, Multi-Carrier

    FREQUENCY RANGE
    450 - 470
    COMPONENT TYPE
    Milled Filter
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    INSERTION LOSS
    1.5 (typ.)
    DIMENSIONS
    133x483x270mm
    Order codes for PF4547 — RFI Post Tx Filter 450-470MHz, 500W, Pass Bandwidth 5MHz, 3RU, Multi-Carrier
    PF4547-P553-32-4.3RFI Post Tx Filter 450-470MHz, 500W, 4.3-10(F), Pass Bandwidth 5MHz, 3RU, Multi-Carrier
    PF4547-P553-32DRFI Post Tx Filter 450-470MHz, 500W, DIN(F), Pass Bandwidth 5MHz, 3RU, Multi-Carrier
  • RX13142 VARIANTS

    RFI Preselector Filter ,Bandpass 138-144MHz

    FINISH
    Painted Black
    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Milled Filter
    Order codes for RX1314 — RFI Preselector Filter ,Bandpass 138-144MHz
    RX1314-1861-32RFI Preselector Filter ,Bandpass 138-144MHz
    RX1314-1862-32RFI Preselector Filter ,Bandpass 138-144MHz ,2MHz BW
  • RX1415-1861-32

    RFI Preselector Filter ,Bandpass 144-150MHz

    FINISH
    Painted Black
    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Milled Filter
    MOUNTING
    4RU 19inch Rack mount front panel
    OPERATING TEMPERATURE
    -30°C to +60°C / -22°F to +140°F
  • RX15152 VARIANTS

    RFI Preselector Filter ,Bandpass 150-156MHz BW

    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Milled Filter
    MOUNTING
    4RU 19inch Rack mount front panel
    OPERATING TEMPERATURE
    -30o to +60o C / -22o to +140o F
    RETURN LOSS
    18dB (min)
    Order codes for RX1515 — RFI Preselector Filter ,Bandpass 150-156MHz BW
    RX1515-1861-32RFI Preselector Filter ,Bandpass 150-156MHz ,1MHz BW
    RX1515-1862-32RFI Preselector Filter ,Bandpass 150-156MHz ,2MHz BW
  • RX15162 VARIANTS

    RFI Preselector BW

    FINISH
    Painted Black
    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Milled Filter
    MOUNTING
    4RU 19inch Rack mount front panel
    OPERATING TEMPERATURE
    -30o to +60o C / -22o to +140o F
    Order codes for RX1516 — RFI Preselector BW
    RX1516-1861-32RFI Preselector Filter ,Bandpass 156-162MHz ,1MHz BW
    RX1516-1862-32RFI Preselector Filter, Bandpass 156-162MHz, 2MHz BW
  • RX1517-1865-32

    RFI Preselector Filter ,Bandpass 150-176MHz ,6MHz BW ,5RU

    FINISH
    Painted Black
    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Milled Filter
    MOUNTING
    5RU 19inch Rack mount front panel
    OPERATING TEMPERATURE
    -30 to +60 C / -22 to +140F
  • RX16162 VARIANTS

    RFI Preselector Filter ,Bandpass 162-168MHz

    FINISH
    Painted Black
    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Milled Filter
    MOUNTING
    4RU 19inch Rack mount front panel
    OPERATING TEMPERATURE
    -30o to +60o C / -22o to +140o F
    Order codes for RX1616 — RFI Preselector Filter ,Bandpass 162-168MHz
    RX1616-1861-32RFI Preselector Filter ,Bandpass 162-168MHz ,4RU
    RX1616-1862-32RFI Preselector Filter ,Bandpass 162-168MHz ,2MHz BW
  • RX16172 VARIANTS

    RFI Preselector Filter ,Bandpass 168-174MHz

    FINISH
    Painted Black
    FILTER TYPE
    Band Pass
    COMPONENT TYPE
    Milled Filter
    MOUNTING
    4RU 19inch Rack mount front panel
    OPERATING TEMPERATURE
    -30o to +60o C / -22o to +140o F
    Order codes for RX1617 — RFI Preselector Filter ,Bandpass 168-174MHz
    RX1617-1861-32RFI Preselector Filter ,Bandpass 168-174MHz ,4RU
    RX1617-1862-32RFI Preselector Filter ,Bandpass 168-174MHz ,2MHz BW
