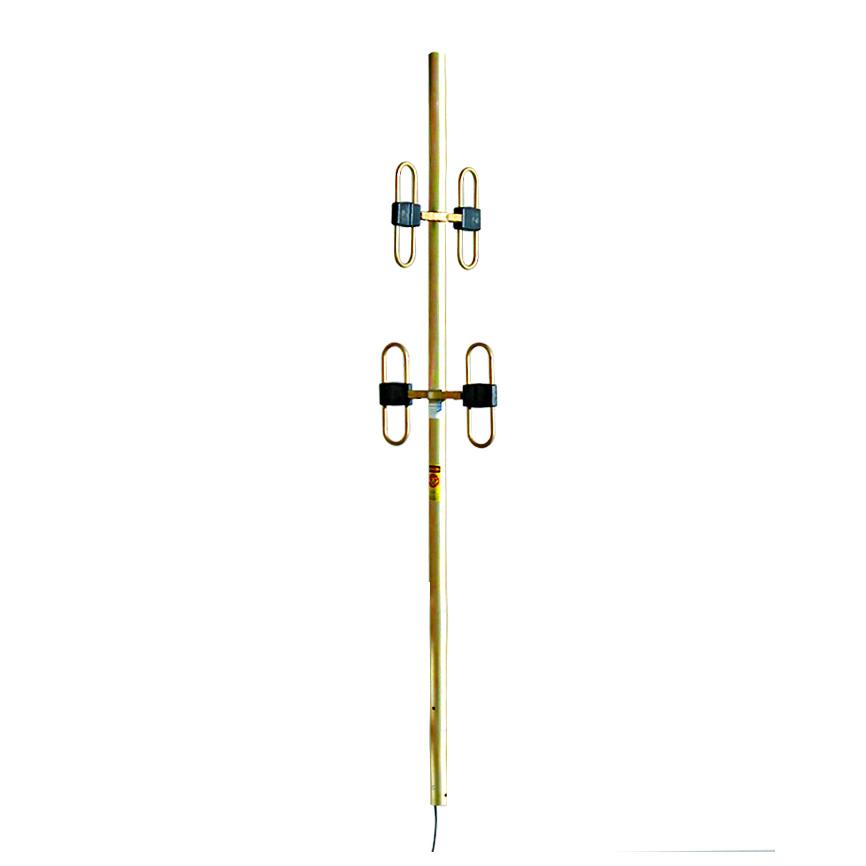

BA40-67-P
UHF Binary Dipole Array 400-520MHz - 3 dBd
These high performance UHF dipole arrays are ideal for highly populated radio sites requiring long haul omnidirectional coverage. They operate over entire bands and offer gains of 3, 6 or 9dBd (depending on model) exhibiting a VSWR of <1.5:1 across the band.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 400 - 520
- VSWR
- <1.5:1
- POWER (W)
- 500
- PIM 3RD ORDER (DBC)
- <-150
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 30°
- MOUNTING
- 500mm x 48mm diam. aluminium
- CONSTRUCTION
- All welded aluminium with alodined finish
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Exposed Dipole Array
- APPLICATION
- Base Station Antenna
