RFI TECHNOLOGY SOLUTIONSCONTROL STATION COMBINERS700/800

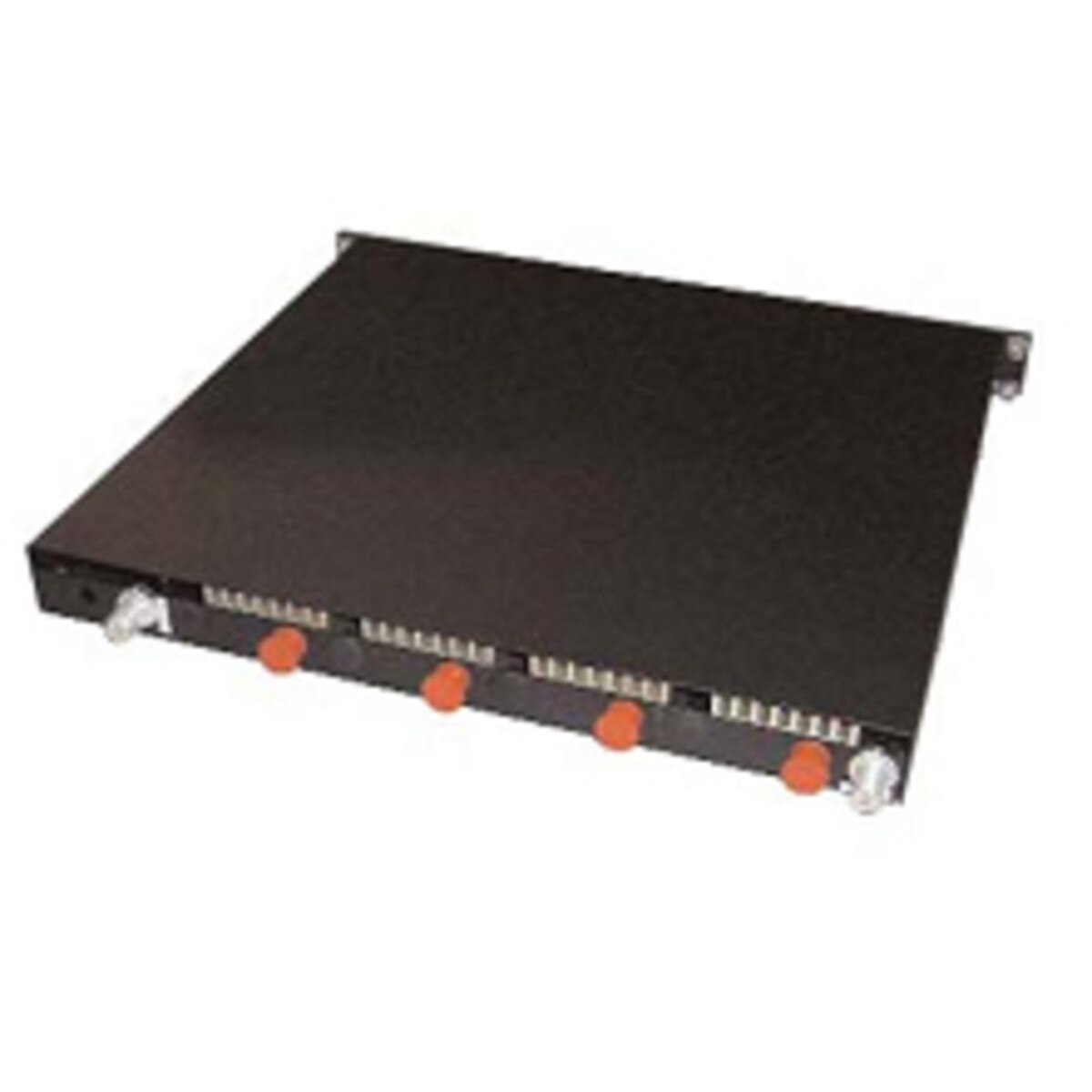

CS7486-0805-SN
RFI Control Station Combiner 746-869MHz, 8 Ports, Single Port Radio; 50W
These multi-channel combiners provide frequency-agile operation across their entire frequency range. Control Station Combiners may be used to reduce the number of antennas required on a communications site whilst also ensuring that predictable radio-to-radio isolation is maintained at all times - irrespective of individual radio’s Tx or Rx operating mode or antenna isolation characteristics.
SPECIFICATIONS
- FREQUENCY RANGE
- 746 - 869
- CONNECTOR
- N(F)
- OPERATING TEMPERATURE
- -30° C to +60° C / -22° F to 140° F
- INSERTION LOSS (DB)
- 11dB (typ.)
- RETURN LOSS (DB)
- 15dB (typ)
