MULTICOUPLING & MONITORING — 45 PRODUCTS

Duplexers

17 series · 45 parts

BAND
  • DP1317-3445-31VHF

    RFI Duplexer, Bandpass / Band Reject, 136-174MHz, 0.6MHz~1.5MHz T/R, 350W, N(F), 5RU

    FREQUENCY RANGE
    136 - 174
    BAND
    136-174MHz
    CONNECTOR
    N(F)
    ISOLATION
    90dB (min)
    CONSTRUCTION
    5RU front panel
  • DP1416-5164-NRVHF

    RFI Duplexer, Mobile Notch 140-160MHz, 4.6 MHz T/R (fixed), 50W

    FREQUENCY RANGE
    140 - 160
    CONNECTOR
    N(F)
    FINISH
    Painted Black
    MOUNTING
    Flat Surface Mounting
    OPERATING TEMPERATURE
    -30° C to +60° C / -22° F to 140° F
  • DP1515VHF2 VARIANTS

    RFI

    ACROSS VARIANTS
    148 – 159 MHz
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    INSERTION LOSS
    1.5(max)
    Order codes for DP1515 — RFI
    DP1515-0881-32RFI Duplexer, Bandpass 148-159MHz, 1MHz PassBand, 4-10MHz T/R, 75W, 4RU
    DP1515-0882-32RFI Duplexer ,Bandpass 151-157MHz, 2MHz Pass Bandwidth, 2.5MHz T/R ,200W ,4RU
  • DP1516VHF2 VARIANTS

    RFI

    ACROSS VARIANTS
    158 – 164 MHz
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    INSERTION LOSS
    1.5(max)
    Order codes for DP1516 — RFI
    DP1516-0881-32RFI Duplexer, Bandpass 155-166MHz, 1MHz PassBand, 4-10MHz T/R, 75W, 4RU
    DP1516-0882-32RFI Duplexer ,Bandpass 158-164MHz, 2MHz Pass Bandwidth, 2.5MHz T/R ,200W ,4RU
  • DP1517VHF5 VARIANTS

    RFI Duplexer, Bandpass 151-172MHz, 1MHz Pass Bandwidth, ** 21MHz T/R SPLIT **,75W, 4RU

    ACROSS VARIANTS
    150 – 174 MHz
    CONNECTOR
    N(F)
    Order codes for DP1517 — RFI Duplexer, Bandpass 151-172MHz, 1MHz Pass Bandwidth, ** 21MHz T/R SPLIT **,75W, 4RU

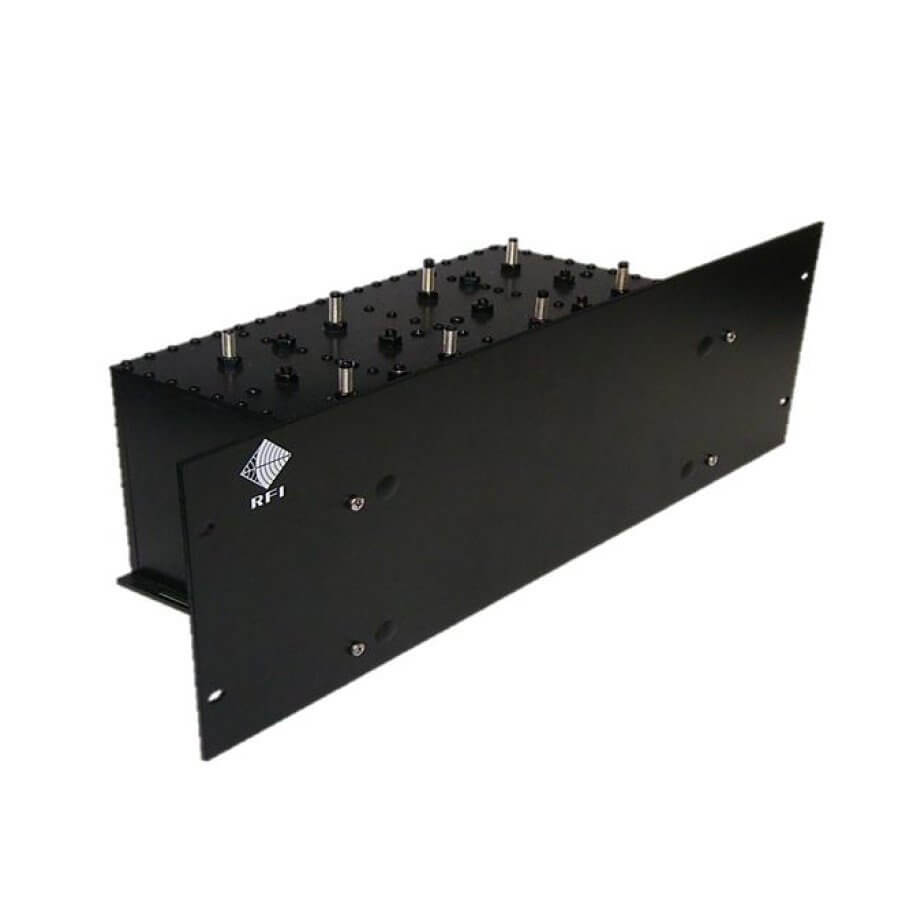

    DP1517-0881-32RFI Duplexer, Bandpass 151-172MHz, 1MHz Pass Bandwidth, ** 21MHz T/R SPLIT **,75W, 4RU
    DP1517-0882-32RFI Duplexer, Bandpass 151-172MHz, 2MHz Pass Bandwidth, *21MHz T/R*, 200W, 4RU
    DP1517-5131-BRDuplexer Band Reject, 150-174-MHz, 21MHz split, 3MHz Reject Band, 20W
    DP1517-5164-NRRFI Duplexer, Mobile Notch 150-174MHz, 4.6MHz T/R, 50W
    DP1517-5166-NRRFI Duplexer, Mobile Notch 150-174MHz, 6.8MHz T/R (fixed), 50W
  • DP1616VHF2 VARIANTS

    RFI Duplexer ,Bandpass Pass Bandwidth, T/R ,4RU

    ACROSS VARIANTS
    159 – 171 MHz
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    INSERTION LOSS
    1.5(max)
    Order codes for DP1616 — RFI Duplexer ,Bandpass Pass Bandwidth, T/R ,4RU
    DP1616-0881-32RFI Duplexer ,Bandpass 159-170MHz, 1MHz Pass Bandwidth, 4MHz T/R ,75W ,4RU
    DP1616-0882-32RFI Duplexer ,Bandpass 164-171MHz, 2MHz Pass Bandwidth, 3.5MHz T/R ,200W ,4RU
  • DP1617VHF2 VARIANTS

    RFI Pass Bandwidth, T/R

    ACROSS VARIANTS
    166 – 173 MHz
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    INSERTION LOSS
    1.5(max)
    Order codes for DP1617 — RFI Pass Bandwidth, T/R
    DP1617-0881-32RFI Duplexer, Bandpass 164-175MHz, 1MHz Pass Bandwidth, 4-10MHz T/R ,75W, 4RU
    DP1617-0882-32RFI Duplexer ,Bandpass 166-173MHz, 2MHz Pass Bandwidth, 3MHz T/R ,200W ,4RU
  • DP3840UHF2 VARIANTS

    RFI Duplexer ,Bandpass 380-400MHz, Pass Bandwidth, T/R ,100W ,2RU

    FREQUENCY RANGE
    380 - 400
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    OPERATING TEMPERATURE
    -30 to +60 C / -22 to +140 F
    INSERTION LOSS
    1.7(max)
    Order codes for DP3840 — RFI Duplexer ,Bandpass 380-400MHz, Pass Bandwidth, T/R ,100W ,2RU
    DP3840-0806-32RFI Duplexer ,Bandpass 380-400MHz, 5MHz Pass Bandwidth, 4MHz T/R ,100W ,2RU
    DP3840-0811-32RFI Duplexer ,Bandpass 380-400MHz, 1.5MHz Pass Bandwidth, 4-5MHz T/R only ,100W ,2RU
  • DP4042UHF4 VARIANTS

    RFI

    FREQUENCY RANGE
    400 - 420
    CONNECTOR
    N(F)
    Order codes for DP4042 — RFI

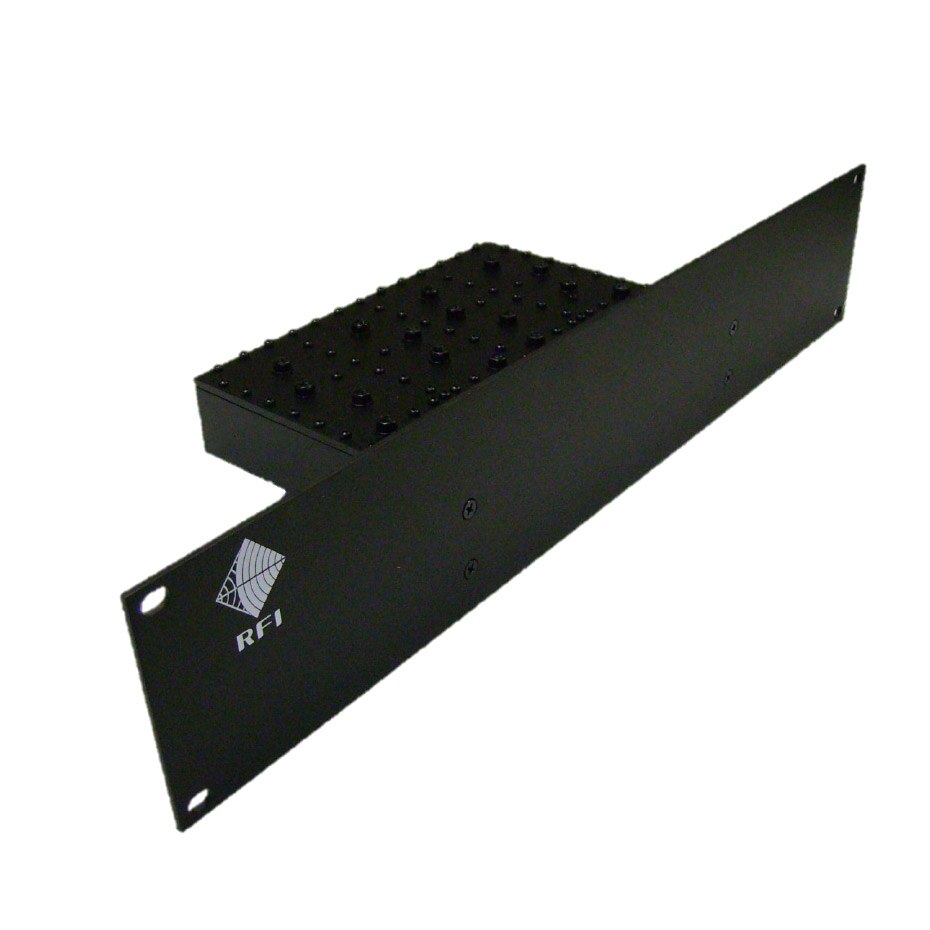

    DP4042-0804-32RFI Duplexer, Bandpass 400-420MHz, 2MHz Pass Bandwidth, 5MHz min T/R, 100W, 2RU
    DP4042-0808-32RFI Duplexer ,Bandpass 400-420MHz ,100W, 6.45MHz PB
    DP4042-5166-NRRFI Duplexer ,Mobile Notch 400-420MHz, 6MHz T/R ,50W
    DP4042-5169-NRRFI Duplexer, Mobile Notch 400-420MHz, 9.5MHz T/R, 50W
  • DP4043UHF3 VARIANTS

    RFI Duplexer, Bandpass 400-430MHz, Pass Bandwidth, 2RU

    FREQUENCY RANGE
    400 - 430
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    OPERATING TEMPERATURE
    -30 to +60 C / -22 to +140 F
    Order codes for DP4043 — RFI Duplexer, Bandpass 400-430MHz, Pass Bandwidth, 2RU
    DP4043-0800-32RFI Duplexer, Bandpass 400-430MHz, 3MHz Pass Bandwidth, 3-10MHz T/R, 250W, 2RU
    DP4043-0806-32RFI Duplexer, Bandpass 400-430MHz, 5MHz Pass Bandwidth, 4-15MHz T/R, 100W, 2RU
    DP4043-0811-32RFI Duplexer, Bandpass 400-430MHz, 1.5MHz Pass Bandwidth, ** 4-5MHz T/R ONLY ** 100W, 2RU
  • DP4143-0804-32UHF

    RFI Duplexer ,Bandpass 410-430MHz, 1.5MHz Pass Bandwidth, 5MHz T/R ,100W ,2RU

    FREQUENCY
    410/430 MHz
    FREQUENCY RANGE
    410 - 430
    CONNECTOR
    N(F)
    FINISH
    Painted Black
    FILTER TYPE
    Band Pass
  • DP4345UHF2 VARIANTS

    RFI Duplexer ,Bandpass 430-450MHz, 4MHz T/R ,100W ,2RU

    FREQUENCY RANGE
    430 - 450
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Duplexer
    OPERATING TEMPERATURE
    -30 to +60 C / -22 to +140 F
    INSERTION LOSS
    1.7(max)
    Order codes for DP4345 — RFI Duplexer ,Bandpass 430-450MHz, 4MHz T/R ,100W ,2RU
    DP4345-0806-32RFI Duplexer ,Bandpass 430-450MHz, 5MHz Pass Bandwidth, 4MHz T/R ,100W ,2RU
    DP4345-0811-32RFI Duplexer ,Bandpass 430-450MHz, 1.5MHz PB, 4MHz T/R ,100W ,2RU
  • DP4547UHF5 VARIANTS

    RFI 450-470MHz

    FREQUENCY RANGE
    450 - 470
    CONNECTOR
    N(F)
    Order codes for DP4547 — RFI 450-470MHz
    DP4547-0800-32RFI Duplexer, Bandpass 450-470MHz, 3MHz Pass Bandwidth, 3-10MHz T/R, 250W, 2RU
    DP4547-0804-32RFI Duplexer, Bandpass 450-470MHz, 2MHz Pass Bandwidth, 5-10MHz T/R, 100W, 2RU
    DP4547-0806-32RFI Duplexer, Bandpass 450-470MHz, 5MHz Pass Bandwidth, 4-15 MHz T/R, 100W, 2RU
    DP4547-0811-32RFI Duplexer ,Bandpass 450-470MHz, 1.5MHz Pass Bandwidth, 4-5MHz T/R Only ,100W ,2RU
    DP4547-5169-NRRFI Duplexer, Mobile Notch 450-470MHz, 9.5MHz T/R, 50W

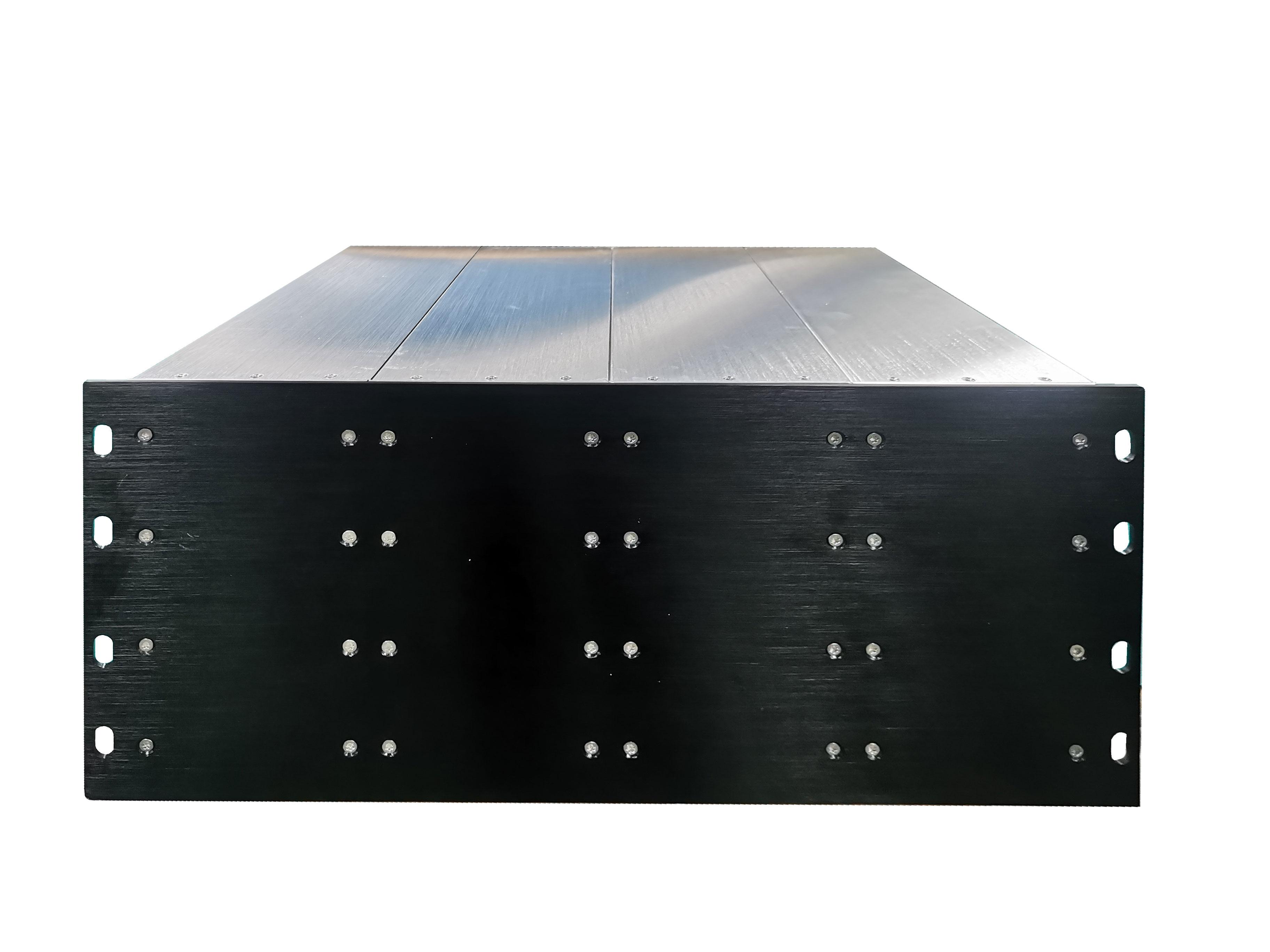

  • DP4749-3462-32UHF

    RFI CB Duplexer, UHF, BP/BR, 470-490MHz, 0.75MHz T/R, 100W, N(f), 5RU

    FREQUENCY RANGE
    470 - 490
    BAND
    470 / 490 MHz
    CONNECTOR
    N(F)
    FILTER TYPE
    Band Pass/Reject
    ISOLATION
    90dB (min)
  • DP4750UHF5 VARIANTS

    RFI 470-500MHz

    FREQUENCY RANGE
    470 - 500
    CONNECTOR
    N(F)
    Order codes for DP4750 — RFI 470-500MHz
    DP4750-0800-32RFI Duplexer, Bandpass 470-500MHz, 3MHz Pass Bandwidth, 3-10MHz T/R, 250W, 2RU

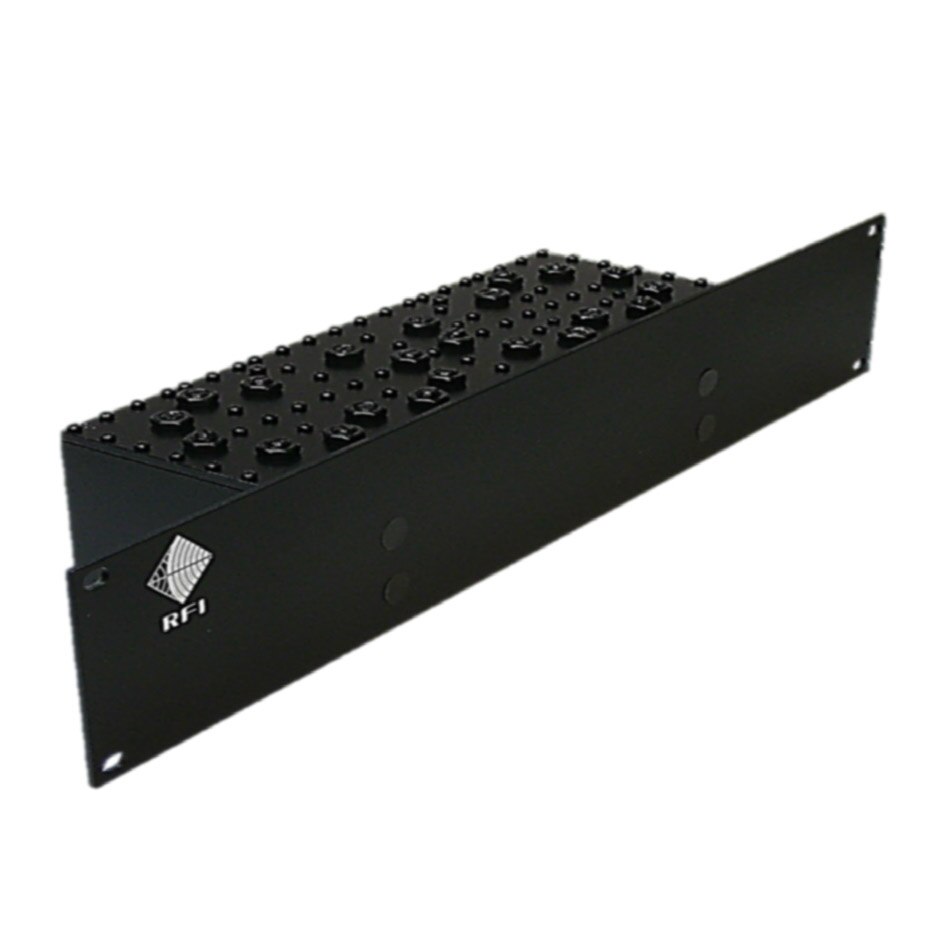

    DP4750-0804-32RFI Duplexer, Bandpass 470-500MHz, 2MHz Pass Bandwidth, 5MHz T/R, Tuning Range 470~495MHz / 475~500MHz (Lo/High) Pass Bandwidth: 1.5 ~2MHz T / R Spacing : 5~10MHz (adjustable)
    DP4750-0806-32RFI Duplexer ,Bandpass 470-500MHz, 5MHz Pass Bandwidth, 4MHz T/R ,100W ,2RU
    DP4750-0811-32RFI Duplexer, Bandpass 470-500MHz, 1.5MHz Pass Bandwidth, 4-5MHz T/R Only (fixed), 100W, 2RU
    DP4750-5165-NRRFI Duplexer, Mobile Notch 470-500MHz, 5.2MHz T/R, 50W
  • DP5052UHF5 VARIANTS

    RFI Duplexer, 500-520MHz

    ACROSS VARIANTS
    500 – 520 MHz
    CONNECTOR
    N(F)
    Order codes for DP5052 — RFI Duplexer, 500-520MHz
    DP5052-0800-32RFI Duplexer, Bandpass 500-520MHz, 3-10MHz Pass Bandwidth, 3MHz T/R, 250W, 2RU
    DP5052-0804-32RFI Duplexer, Bandpass 500-520MHz, 2MHz Pass Bandwidth, 5-10MHz T/R, 50W, 2RU
    DP5052-0806-32RFI Duplexer, Bandpass 500-520MHz, 5MHz Pass Bandwidth, 4-15MHz T/R, 100W, 2RU
    DP5052-0811-32RFI Duplexer, Bandpass 500-520MHz, 1.5MHz Pass Bandwidth, ** 4MHz T/R ONLY**, 100W, 2RU
    DP5052-5160-NRRFI Duplexer, Mobile Notch 500-520MHz, 10MHz T/R, (Fixed) 50W
  • DP8086700/8002 VARIANTS

    RFI Duplexer ,Bandpass 806-870MHz ,2RU

    ACROSS VARIANTS
    806 – 870 MHz
    CONNECTOR
    N(F)
    Order codes for DP8086 — RFI Duplexer ,Bandpass 806-870MHz ,2RU

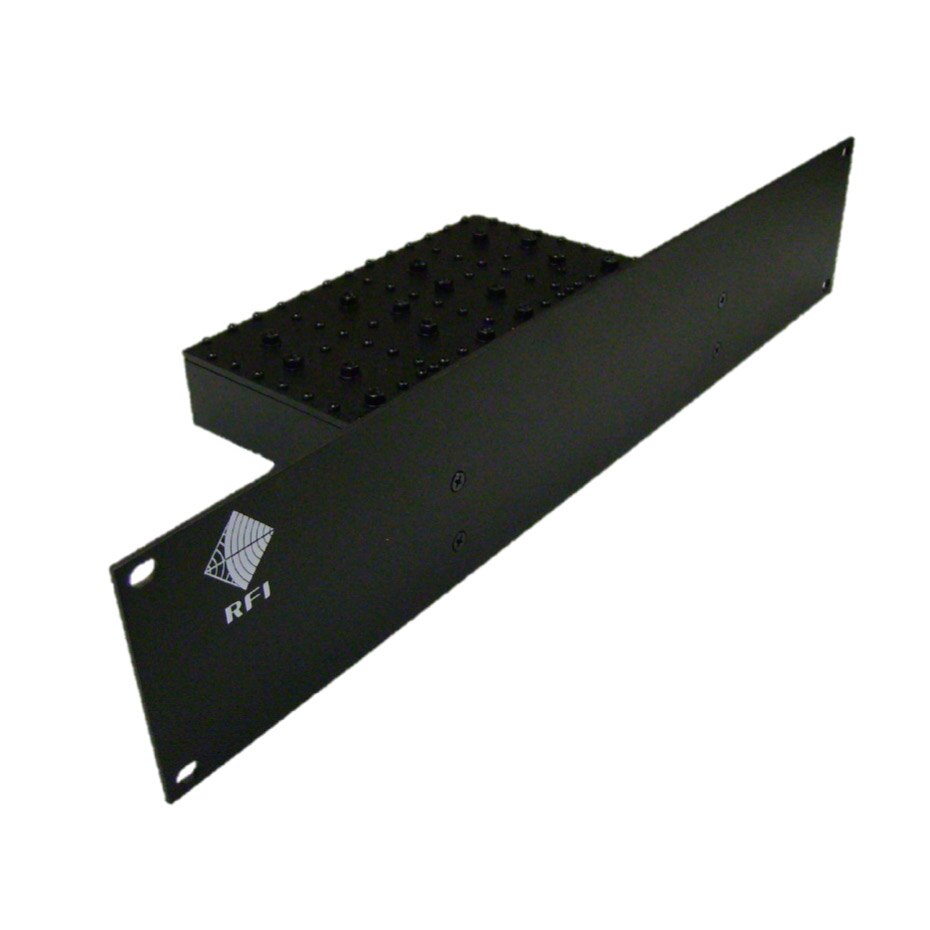

    DP8086-0801-32RFI Duplexer ,Bandpass 806-870MHz ,100W ,2RU
    DP8086-0805-32RFI Duplexer ,Bandpass 806-870MHz ,500W ,2RU
