MULTICOUPLING & MONITORING — 48 PRODUCTS

MiniSystem Combiners

13 series · 48 parts

BAND
  • MS1314VHF3 VARIANTS

    VHF MINI SYSTEM COMBINER 2CH 138-148 MHZ, No Duplexer

    FREQUENCY RANGE
    138 - 148
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    RETURN LOSS
    20 (typ.)
    Order codes for MS1314 — VHF MINI SYSTEM COMBINER 2CH 138-148 MHZ, No Duplexer
    MS1314-0205-NDPVHF MINI SYSTEM COMBINER 2CH 138-148 MHZ, No Duplexer
    MS1314-0205-SPRFI MiniSystem, 2 CH 138-148MHz
    MS1314-0405-SPRFI MiniSystem ,4 CH 138-148MHz
  • MS1415VHF3 VARIANTS

    RFI MiniSystem CH 148-158MHz

    FREQUENCY RANGE
    148 - 158
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    RETURN LOSS
    20 (typ.)
    Order codes for MS1415 — RFI MiniSystem CH 148-158MHz
    MS1415-0205-SPRFI MiniSystem ,2 CH 148-158MHz
    MS1415-0405-NDPRFI MiniSystem ,4 CH 148-158MHz
    MS1415-0405-SPRFI MiniSystem ,4 CH 148-158MHz
  • MS1516VHF3 VARIANTS

    RFI 155-165MHz

    FREQUENCY RANGE
    155 -165
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    DIMENSIONS
    313x483x430mm
    RETURN LOSS
    20 (typ.)
    Order codes for MS1516 — RFI 155-165MHz
    MS1516-0205-SPRFI MiniSystem, 2CH 155-165MHz
    MS1516-0405-DPRFI MiniSystem ,4 CH 155-165MHz
    MS1516-0405-SPRFI MiniSystem ,4 CH 155-165MHz
  • MS1517VHF2 VARIANTS

    RFI MiniSystem, 151-172MHz

    FREQUENCY RANGE
    151 - 172
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    DIMENSIONS
    313x483x430mm
    RETURN LOSS
    20 (typ.)
    Order codes for MS1517 — RFI MiniSystem, 151-172MHz
    MS1517-0205-SPRFI MiniSystem, 2CH 151-172MHz
    MS1517-0405-SPRFI MiniSystem, 4CH 151-172MHz
  • MS1616VHF2 VARIANTS

    RFI MiniSystem CH 160-170MHz

    FREQUENCY RANGE
    160 - 170
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    DIMENSIONS
    313x483x430mm
    RETURN LOSS
    20 (typ.)
    Order codes for MS1616 — RFI MiniSystem CH 160-170MHz
    MS1616-0205-SPRFI MiniSystem ,2 CH 160-170MHz
    MS1616-0405-SPRFI MiniSystem ,4 CH 160-170MHz
  • MS1617VHF2 VARIANTS

    RFI MiniSystem CH 164-174MHz

    FREQUENCY RANGE
    160 - 170
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    DIMENSIONS
    313x483x430mm
    RETURN LOSS
    20 (typ.)
    Order codes for MS1617 — RFI MiniSystem CH 164-174MHz
    MS1617-0205-SPRFI MiniSystem ,2 CH 164-174MHz
    MS1617-0405-SPRFI MiniSystem ,4 CH 164-174MHz
  • MS3840-0405-SPUHF

    RFI MiniSystem ,4 CH 380-400MHz

    FREQUENCY RANGE
    380 - 400
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    INSERTION LOSS
    9dB (typ)
    RETURN LOSS
    20 (typ.)
  • MS4043UHF8 VARIANTS

    MSC 400-430MHZ 2CH NO DUPLEXER

    FREQUENCY RANGE
    400 - 430
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    RETURN LOSS
    20 (typ.)
    Order codes for MS4043 — MSC 400-430MHZ 2CH NO DUPLEXER
    MS4043-0205-NDPMSC 400-430MHZ 2CH NO DUPLEXER
    MS4043-0205-SPRFI MiniSystem ,2 CH 400-430MHz
    MS4043-0405-DPRFI MiniSystem ,4 CH 400-430MHz
    MS4043-0405-NDPRFI MiniSystem ,4 CH 400-430MHz
    MS4043-0405-SNRFI MiniSystem ,4 CH 400-430MHz
    MS4043-0405-SPRFI MiniSystem ,4 CH 400-430MHz
    MS4043-0410-NDPRFI MiniSystem, 4CH 400-430MHz
    MS4043-0410-SPRFI MiniSystem, 4CH 400-430MHz
  • MS4345UHF4 VARIANTS

    MSC 430-450MHZ 2CH NO DUPLEXER

    FREQUENCY RANGE
    430 - 450
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    RETURN LOSS
    20 (typ.)
    Order codes for MS4345 — MSC 430-450MHZ 2CH NO DUPLEXER
    MS4345-0205-NDPMSC 430-450MHZ 2CH NO DUPLEXER
    MS4345-0205-SPRFI MiniSystem ,2 CH 430-450MHz
    MS4345-0405-SPRFI MiniSystem ,4 CH 430-450MHz

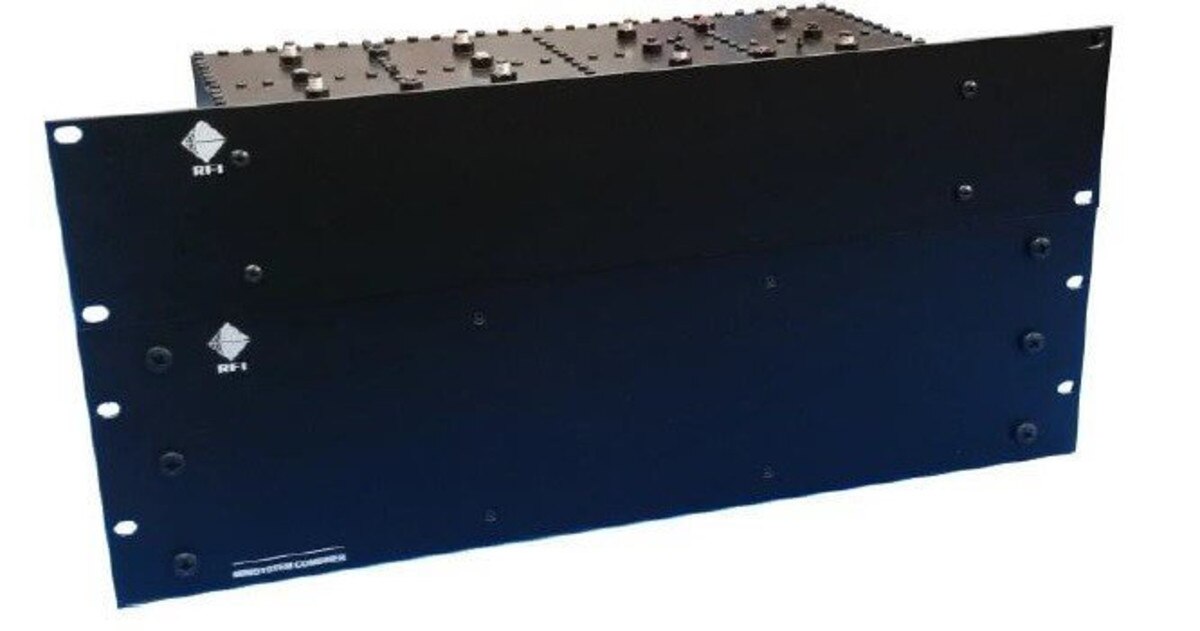

    MS4345-0410-SPRFI MiniSystem, 4CH 430-450MHz
  • MS4547UHF9 VARIANTS

    RFI

    FREQUENCY RANGE
    450 - 470
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    RETURN LOSS
    20 (typ.)
    Order codes for MS4547 — RFI
    MS4547-0205-NDPRFI MiniSystem ,2 CH 450-470MHz
    MS4547-0205-SPRFI MiniSystem ,2 CH 450-470MHz
    MS4547-0210-SPRFI MINI SYSTEM COMBINER, 2CH 450-470M 100W, Single Antenna Port, FREQs Required
    MS4547-0405-DPRFI MiniSystem ,4 CH 450-470MHz
    MS4547-0405-NDPRFI MiniSystem ,4 CH 450-470MHz
    MS4547-0405-SNRFI MiniSystem ,4 CH 450-470MHz
    MS4547-0405-SPRFI MiniSystem ,4 CH 450-470MHz
    MS4547-0410-NDPRFI MiniSystem, 4CH 450-470MHz
    MS4547-0410-SPRFI MiniSystem, 4CH 450-470MHz
  • MS4750UHF5 VARIANTS

    RFI MiniSystem CH 470-500MHz

    FREQUENCY RANGE
    470 - 500
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    DIMENSIONS
    133x483x430mm
    RETURN LOSS
    20 (typ.)
    Order codes for MS4750 — RFI MiniSystem CH 470-500MHz
    MS4750-0205-NDPRFI MiniSystem ,2 CH 470-500MHz
    MS4750-0205-SPRFI MiniSystem ,2 CH 470-500MHz
    MS4750-0405-DPRFI MiniSystem ,4 CH 470-500MHz
    MS4750-0405-NDPRFI MiniSystem ,4 CH 470-500MHz
    MS4750-0405-SPRFI MiniSystem ,4 CH 470-500MHz
  • MS5052UHF4 VARIANTS

    RFI MiniSystem CH 500-520MHz

    FREQUENCY RANGE
    500 - 520
    OPERATING TEMPERATURE
    - 30 C to 60° C / - 22° F to 140° F
    DIMENSIONS
    133x483x430mm
    RETURN LOSS
    20 (typ.)
    Order codes for MS5052 — RFI MiniSystem CH 500-520MHz
    MS5052-0205-SPRFI MiniSystem ,2 CH 500-520MHz
    MS5052-0405-DPRFI MiniSystem ,4 CH 500-520MHz
    MS5052-0405-NDPRFI MiniSystem ,4 CH 500-520MHz
    MS5052-0405-SPRFI MiniSystem ,4 CH 500-520MHz
  • MS8087700/8002 VARIANTS

    RFI MiniSystem CH 800-870MHz

    FREQUENCY RANGE
    800 - 870
    OPERATING TEMPERATURE
    -30°to +60°C (-122°to +140°F)
    Order codes for MS8087 — RFI MiniSystem CH 800-870MHz
    MS8087-0205-SPRFI MiniSystem ,2 CH 800-870MHz
    MS8087-0405-SPRFI MiniSystem ,4 CH 800-870MHz
