MULTICOUPLING & MONITORING — 107 PRODUCTS

Multicoupling Components

30 series · 107 parts

BAND
  • FO00052 VARIANTS

    0.5-2MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC

    FREQUENCY RANGE
    0.5 - 2
    CONNECTOR
    SMA(F)
    COMPONENT TYPE
    RFoF
    Order codes for FO0005 — 0.5-2MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO0005-1MHS-11-TTX1310NM, 0.5-2MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO0005-1SHS-11-TRX1310NM, 0.5-2MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
  • FO0825VHF2 VARIANTS

    (WDM), 88-2500MHZ, (MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC

    FREQUENCY RANGE
    88 - 2500
    CONNECTOR
    SMA(F)
    COMPONENT TYPE
    RFoF
    Order codes for FO0825 — (WDM), 88-2500MHZ, (MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO0825-2MFW-11TX1310NM/RX1550NM (WDM), 88-2500MHZ, (MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO0825-2SFW-11TX1550NM/RX1310NM (WDM), 88-2500MHZ, (MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
  • FO0888VHF4 VARIANTS

    88-880MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC

    FREQUENCY RANGE
    88 - 880
    CONNECTOR
    SMA(F)
    COMPONENT TYPE
    RFoF
    Order codes for FO0888 — 88-880MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO0888-1MHS-11TX1310NM, 88-880MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO0888-1MHS-11-ATX1550NM, 88-880MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO0888-1SHS-11RX1310NM, 88-880MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO0888-1SHS-11-ARX1550NM, 88-880MHZ, (NO MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
  • FO1310VHF2 VARIANTS

    (WDM), 132-1000MHZ, (MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC

    FREQUENCY RANGE
    132 - 1000
    CONNECTOR
    SMA(F)
    COMPONENT TYPE
    RFoF
    Order codes for FO1310 — (WDM), 132-1000MHZ, (MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO1310-2MFW-11TX1310NM/RX1550NM (WDM), 132-1000MHZ, (MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
    FO1310-2SFW-11TX1550NM/RX1310NM (WDM), 132-1000MHZ, (MODEM), SM FC/APC, SMA(F), DB9(M), +12VDC
  • RX1317-2002-11VHF

    RFI Low Noise Amplifier, 132-174MHz, 40dB Gain

    FREQUENCY RANGE
    132 - 174
    COMPONENT TYPE
    Low Noise Amplifier
  • RX2238-2002-11VHF

    LNA 225-380MHz 40dB GAIN

    FREQUENCY RANGE
    225 - 380
    COMPONENT TYPE
    Low Noise Amplifier
  • RX3852-2002-11UHF

    RFI Low Noise Amplifier, 380-520MHz, 40dB Gain

    FREQUENCY RANGE
    380 - 520
    COMPONENT TYPE
    Low Noise Amplifier
  • SP0000VHF12 VARIANTS

    RFI Crossband Coupler. and

    ACROSS VARIANTS
    50 – 2700 MHz
    COMPONENT TYPE
    Crossband Coupler
    Order codes for SP0000 — RFI Crossband Coupler. and
    SP0000-1117-31RFI Crossband Coupler. 0.5-1.7 MHz and 60-960 MHz. 100W, Type-N Female
    SP0000-1119-11RFI Crossband Coupler. 66-180 MHz and 400-540 MHz. 50W, Type-N Female
    SP0000-1121-11RFI Crossband Coupler. 66-108 MHz and 140-180 MHz. 50W, Type-N Female
    SP0000-1122-11RFI Crossband Coupler. 66-180 MHz and 400-520 MHz. 250W, Type-N Female
    SP0000-1123-11RFI Crossband Coupler. 66-520 MHz and 800-2500 MHz. 50W, Type-N Female
    SP0000-1124-11RFI Crossband Coupler. 50-520 MHz and 694-2700 MHz. 100W, 4.3-10 Female
    SP0000-1125-11RFI Crossband Coupler. 25-175 MHz and 330-960 MHz. 25W, Type-N Female
    SP0000-1159-11RFI Crossband Coupler. 100-132 and 150-170MHz. 30W, Type-N Female
    SP0000-1180-11RFI Crossband Coupler. 66-174 MHz and 200-235 MHz. 250W, Type-N Female
    SP0000-1182-11RFI Crossband Coupler. 66-235 MHz and 350-530 MHz. 250W, Type-N Female
    SP0000-1190-11RFI Crossband Coupler. 130-180 MHz and 380-520 MHz. Mini UHF (MPL Female)
    SP0000-1195-11RFI Crossband Coupler. DC Pass 0-800 MHz and 1800-2500MHz. 35W, Type-N Female
  • SP0608-2203-11VHF

    RFI Four-Port 3dB Hybrid Coupler. 66-88 MHz, 200W, Type-N Female

    FREQUENCY RANGE
    66 - 88
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Hybrid Coupler
  • SP0610-5104-11VHF

    RFI RFI 4-way Wilkinson Splitter/Combiner, 66-108 MHz, Type-N Female

    FREQUENCY RANGE
    66 - 108
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Splitter/Combiner
  • SP0710VHF3 VARIANTS

    RFI Wilkinson Splitter/Combiner, 70–1000 MHz, Type-N Female

    FREQUENCY RANGE
    70 - 1000
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Splitter/Combiner
    Order codes for SP0710 — RFI Wilkinson Splitter/Combiner, 70–1000 MHz, Type-N Female
    SP0710-5102-11RFI 2-way Wilkinson Splitter/Combiner, 70–1000 MHz, Type-N Female
    SP0710-5103-11RFI 3-way Wilkinson Splitter/Combiner, 70–1000 MHz, Type-N Female
    SP0710-5104-11RFI 4-way Wilkinson Splitter/Combiner, 70–1000 MHz, Type-N Female
  • SP0890VHF2 VARIANTS

    DC INJECTOR / PICKOFF 80-900MHZ +/-48VDC @ 3A, DC Continuity to

    FREQUENCY RANGE
    80 - 900
    CONNECTOR
    N(M) - N(F)
    COMPONENT TYPE
    DC Injector
    Order codes for SP0890 — DC INJECTOR / PICKOFF 80-900MHZ +/-48VDC @ 3A, DC Continuity to
    SP0890-1701-11DC INJECTOR / PICKOFF 80-900MHZ +/-48VDC @ 3A, DC Continuity to N(f)
    SP0890-1702-11DC INJECTOR / PICKOFF 80-900MHZ +/-48VDC @ 3A, DC Continuity to N(m)
  • SP1314-3215-BIVHF

    RFI Dual Isolator 132-140MHz

    FREQUENCY RANGE
    132 - 140
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP1318VHF14 VARIANTS

    RFI 130-180 MHz, Type-N Female

    FREQUENCY RANGE
    130 - 180
    CONNECTOR
    N(F)
    Order codes for SP1318 — RFI 130-180 MHz, Type-N Female
    SP1318-2203-11RFI Four-Port 3dB Hybrid Coupler. 130-180 MHz, 200W, Type-N Female
    SP1318-2204-11RFI Four-Port 4dB Hybrid Coupler. 130-180 MHz, 200W, Type-N Female
    SP1318-2206-11RFI Four-Port 6dB Hybrid Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-2210-11RFI Four-Port 10dB Hybrid Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-2215-11RFI Four-Port 15dB Hybrid Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-2304-11RFI Three-Port 4.8dB Directional Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-2306-11RFI Three-Port 6dB Directional Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-2310-11RFI Three-Port 10dB Directional Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-2315-11RFI Three-Port 15dB Directional Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-2320-11RFI Three-Port 20dB Directional Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-2330-11RFI Three-Port 30dB Directional Coupler. 130-180 MHz, 100W, Type-N Female
    SP1318-5102-11RFI 2-way Wilkinson Splitter/Combiner, 130-180 MHz, Type-N Female
    SP1318-5103-11RFI 3-way Wilkinson Splitter/Combiner, 130-180 MHz, Type-N Female
    SP1318-5104-11RFI 4-way Wilkinson Splitter/Combiner, 130-180 MHz, Type-N Female

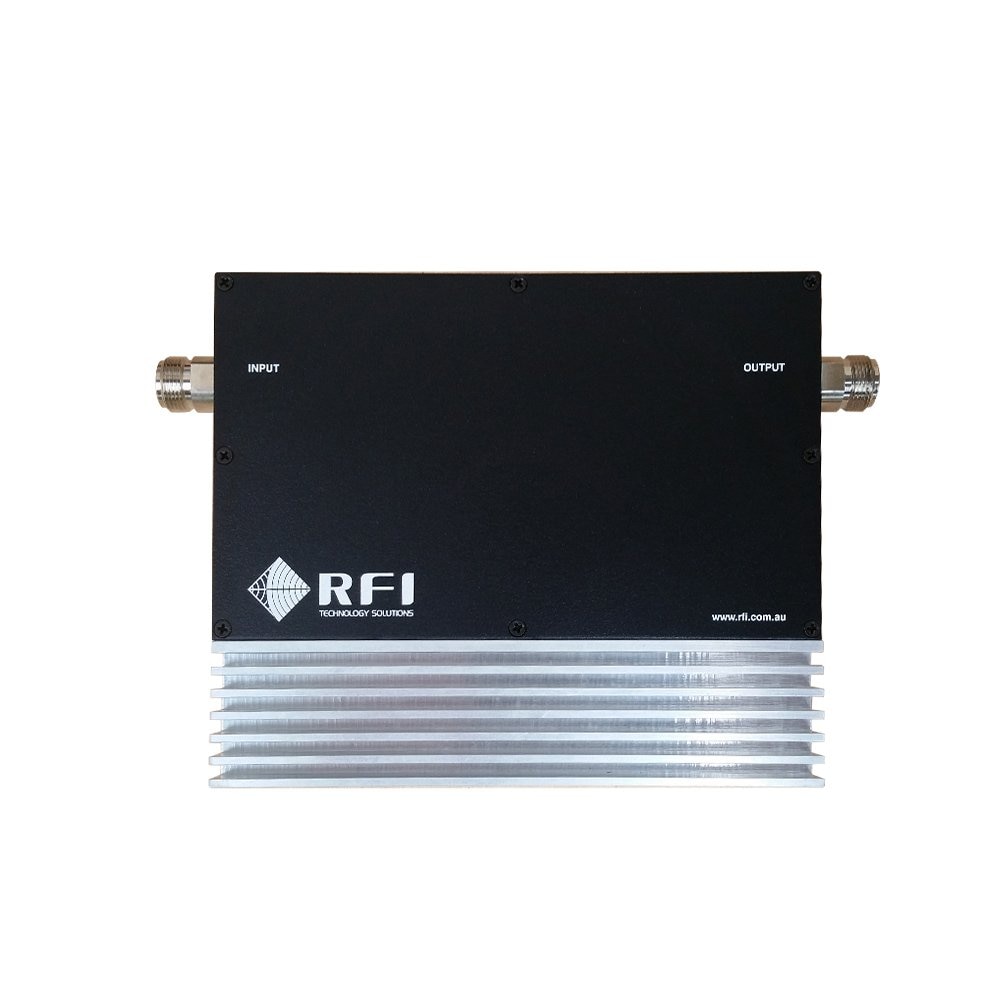

  • SP1414-3215-BIVHF

    RFI Dual Isolator 139-148MHz

    FREQUENCY RANGE
    139 -148
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP1416-3215-BIVHF

    RFI Dual Isolator 148-162MHz

    FREQUENCY RANGE
    148 - 162
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP1516-3215-BIVHF

    RFI Dual Isolator 156-168MHz

    FREQUENCY RANGE
    156 - 168
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP1617-3215-BIVHF

    RFI Dual Isolator 161-175MHz

    FREQUENCY RANGE
    161 - 175
    COMPONENT TYPE
    Ferrite Circulators and Isolators

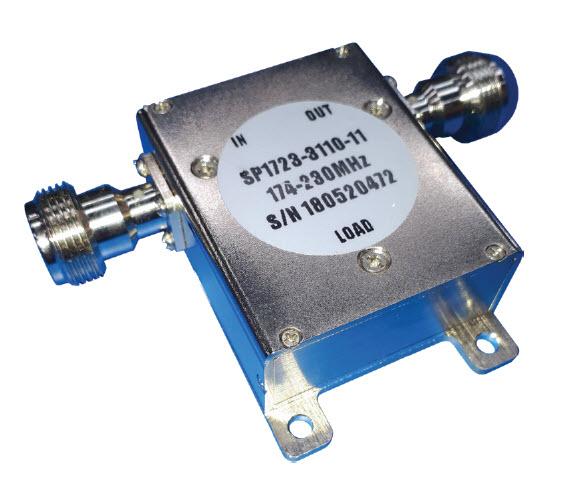

  • SP1723-3110-11VHF

    RFI Single VHF/DAB/DAB+ Isolator (Broadband) 174-230MHz

    FREQUENCY RANGE
    174 - 230
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Ferrite Circulators and Isolators
    OPERATING TEMPERATURE
    -40 to +75C / -40 to +158F
    DIMENSIONS
    41x65x20 / 1.6x2.56x0.78 (not including connectors) WxLxD

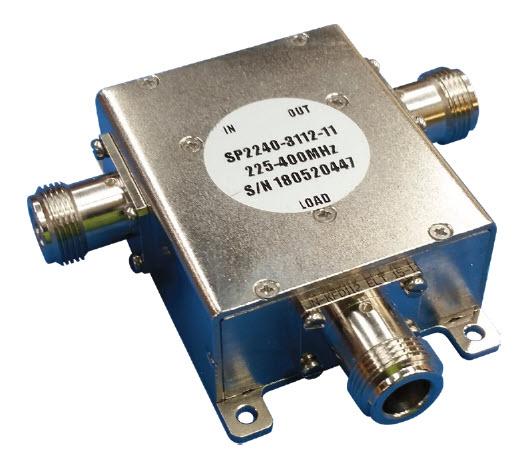

  • SP2240-3112-11VHF

    RFI Single UHF Military Band Circulator (Broadband) 225-400MHz

    FREQUENCY RANGE
    225 - 400
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Ferrite Circulators and Isolators
    OPERATING TEMPERATURE
    -40 to +75C / -40 to +158F
    DIMENSIONS
    53x77x26 / 2.1x3.03x1.02 (not including connectors) WxLxD
  • SP3827UHF36 VARIANTS

    RFI MHz, Female

    FREQUENCY RANGE
    380 - 2700
    Order codes for SP3827 — RFI MHz, Female
    SP3827-2203-11RFI Four-Port 3dB Hybrid Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2203-DINRFI Four-Port 3dB Hybrid Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-2305-4.3RFI Low PIM Three-Port 5dB Directional Coupler. 380-2700 MHz, 200W, 4.3-10 Female
    SP3827-2305-11RFI Three-Port 5dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2305-DINRFI Three-Port 5dB Directional Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-2306-4.3RFI Low PIM Three-Port 6dB Directional Coupler. 380-2700 MHz, 200W, 4.3-10 Female
    SP3827-2306-11RFI Three-Port 6dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2306-DINRFI Three-Port 6dB Directional Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-2307-11RFI Three-Port 7dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2308-4.3RFI Low PIM Three-Port 8dB Directional Coupler. 380-2700 MHz, 200W, 4.3-10 Female
    SP3827-2308-11RFI Three-Port 8dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2308-DINRFI Three-Port 8dB Directional Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-2310-4.3RFI Low PIM Three-Port 10dB Directional Coupler. 380-2700 MHz, 200W, 4.3-10 Female
    SP3827-2310-11RFI Three-Port 10dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2310-DINRFI Three-Port 10dB Directional Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-2312-4.3RFI Low PIM Three-Port 12dB Directional Coupler. 380-2700 MHz, 200W, 4.3-10 Female
    SP3827-2312-11RFI Three-Port 12dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2312-DINRFI Three-Port 12dB Directional Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-2315-4.3RFI Low PIM Three-Port 15dB Directional Coupler. 380-2700 MHz, 200W, 4.3-10 Female
    SP3827-2315-11RFI Three-Port 15dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2315-DINRFI Three-Port 15dB Directional Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-2320-4.3RFI Low PIM Three-Port 20dB Directional Coupler. 380-2700 MHz, 200W, 4.3-10 Female
    SP3827-2320-11RFI Three-Port 20dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2320-DINRFI Three-Port 20dB Directional Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-2330-4.3RFI Low PIM Three-Port 30dB Directional Coupler. 380-2700 MHz, 200W, 4.3-10 Female
    SP3827-2330-11RFI Three-Port 30dB Directional Coupler. 380-2700 MHz, 200W, Type-N Female
    SP3827-2330-DINRFI Three-Port 30dB Directional Coupler. 380-2700 MHz, 200W, 7-16 DIN Female
    SP3827-5102-4.3RFI 2-way Low PIM Reactive Power Divider. 380–2700 MHz, 300W, 4.3-10 Female
    SP3827-5102-11RFI 2-way Reactive Power Divider. 380–2700 MHz, 200W, Type-N Female
    SP3827-5102-DINRFI 2-way Reactive Power Divider. 380–2700 MHz, 500W, 7-16 DIN Female
    SP3827-5103-4.3RFI 3-way Low PIM Reactive Power Divider. 380–2700 MHz, 300W, 4.3-10 Female
    SP3827-5103-11RFI 3-way Reactive Power Divider. 380–2700 MHz, 200W, Type-N Female
    SP3827-5103-DINRFI 3-way Reactive Power Divider. 380–2700 MHz, 500W, 7-16 DIN Female
    SP3827-5104-4.3RFI 4-way Low PIM Reactive Power Divider. 380–2700 MHz, 300W, 4.3-10 Female
    SP3827-5104-11RFI 4-way Reactive Power Divider. 380–2700 MHz, 200W, Type-N Female
    SP3827-5104-DINRFI 4-way Reactive Power Divider. 380–2700 MHz, 500W, 7-16 DIN Female
  • SP3840-3215-BIUHF

    RFI Dual Isolator 380-400MHz

    FREQUENCY RANGE
    380 - 400
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP3855UHF8 VARIANTS

    RFI Four-Port Hybrid Coupler. 380-520 MHz, 200W, Type-N Female

    FREQUENCY RANGE
    380 - 550
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Hybrid Coupler
    Order codes for SP3855 — RFI Four-Port Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
    SP3855-2203-11RFI Four-Port 3dB Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
    SP3855-2204-11RFI Four-Port 4dB Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
    SP3855-2206-11RFI Four-Port 6dB Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
    SP3855-2207-11RFI Four-Port 7dB Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
    SP3855-2210-11RFI Four-Port 10dB Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
    SP3855-2215-11RFI Four-Port 15dB Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
    SP3855-2220-11RFI Four-Port 20dB Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
    SP3855-2230-11RFI Four-Port 30dB Hybrid Coupler. 380-520 MHz, 200W, Type-N Female
  • SP4043-3215-BIUHF

    RFI Dual Isolator 400-430MHz

    FREQUENCY RANGE
    400 - 430
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP4054UHF3 VARIANTS

    RFI Wilkinson Splitter/Combiner, 400-540 MHz, Type-N Female

    FREQUENCY RANGE
    400 - 540
    CONNECTOR
    N(F)
    COMPONENT TYPE
    Splitter/Combiner
    Order codes for SP4054 — RFI Wilkinson Splitter/Combiner, 400-540 MHz, Type-N Female
    SP4054-5302-11RFI 2-way Wilkinson Splitter/Combiner, 400-540 MHz, Type-N Female
    SP4054-5303-11RFI 3-way Wilkinson Splitter/Combiner, 400-540 MHz, Type-N Female
    SP4054-5304-11RFI 4-way Wilkinson Splitter/Combiner, 400-540 MHz, Type-N Female
  • SP4345-3215-BIUHF

    RFI Dual Isolator 430-450MHz

    FREQUENCY RANGE
    430 - 450
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP4547-3215-BIUHF

    RFI Dual Isolator 450-470MHz

    FREQUENCY RANGE
    450 - 470
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP4750-3215-BIUHF

    RFI Dual Isolator 470-500MHz

    FREQUENCY RANGE
    470 - 500
    COMPONENT TYPE
    Ferrite Circulators and Isolators
  • SP5052-3215-BIUHF

    RFI Dual Isolator 500-520MHz

    FREQUENCY RANGE
    500 - 520
    COMPONENT TYPE
    Ferrite Circulators and Isolators

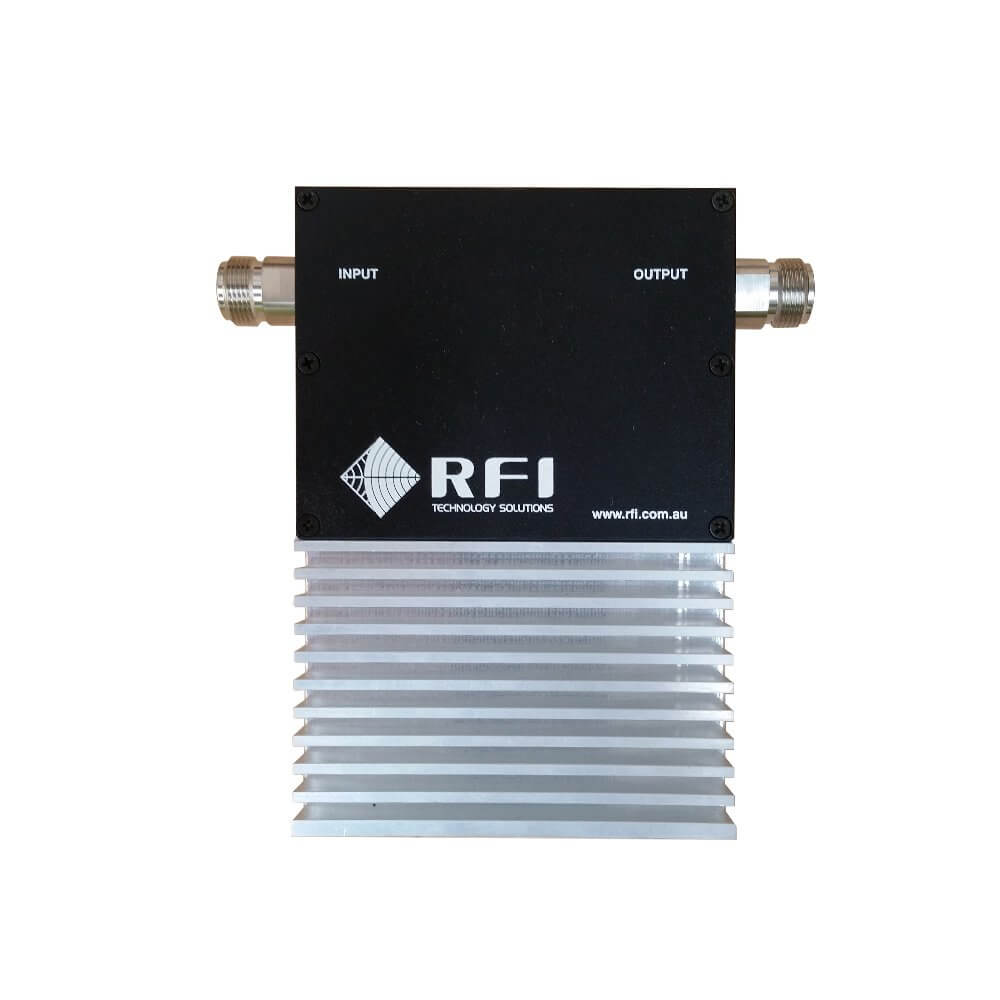

  • SP8087-3215-BI700/800

    RFI Dual Isolator - 800-870MHz

    FREQUENCY RANGE
    800 - 870
    COMPONENT TYPE
    Ferrite Circulators and Isolators
