RFI TECHNOLOGY SOLUTIONSPMR / LMR700/800

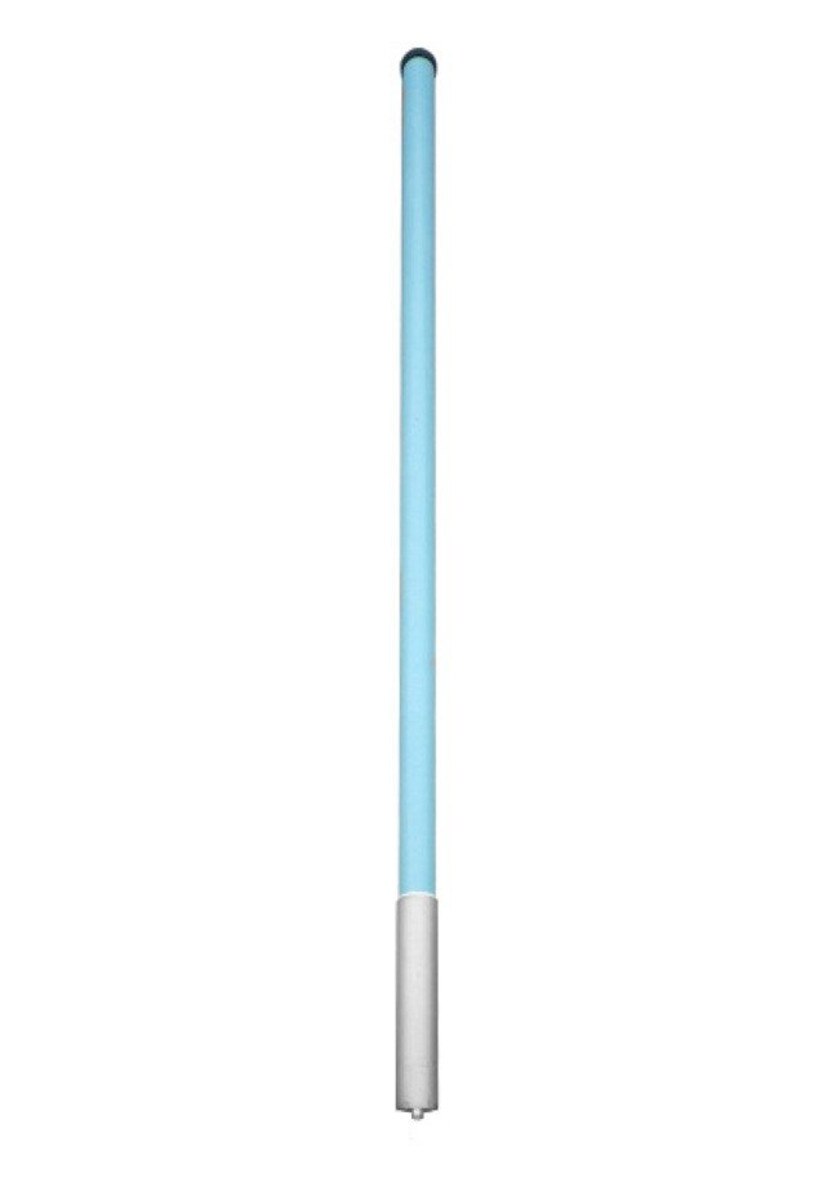

CC807-12-T4-P
800MHz Corporate Collinear 746-870MHz - 11.5dBd, 4deg DT, 4.3-10
These industry leading, full featured corporate collinear arrays allow site operators to combine, with complete integrity, a large number of communications services into a single, low profile antenna solution.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 746-870
- VSWR
- <1.5:1
- POWER (W)
- 500
- PEAK POWER (KW)
- 25
- PIM 3RD ORDER (DBC)
- -150
- TERMINATION
- 4.3-10 fixed female
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 4°
- MOUNTING
- 750 x 89 mm
- CONSTRUCTION
- Composite fiberglass sky blue radome, aluminum mounting tube
- TUNED BANDWIDTH
- Full band
- RADOME DIAMETER (MM)
- 76
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Collinears
- APPLICATION
- Base Station Antenna
