CD28-41-73

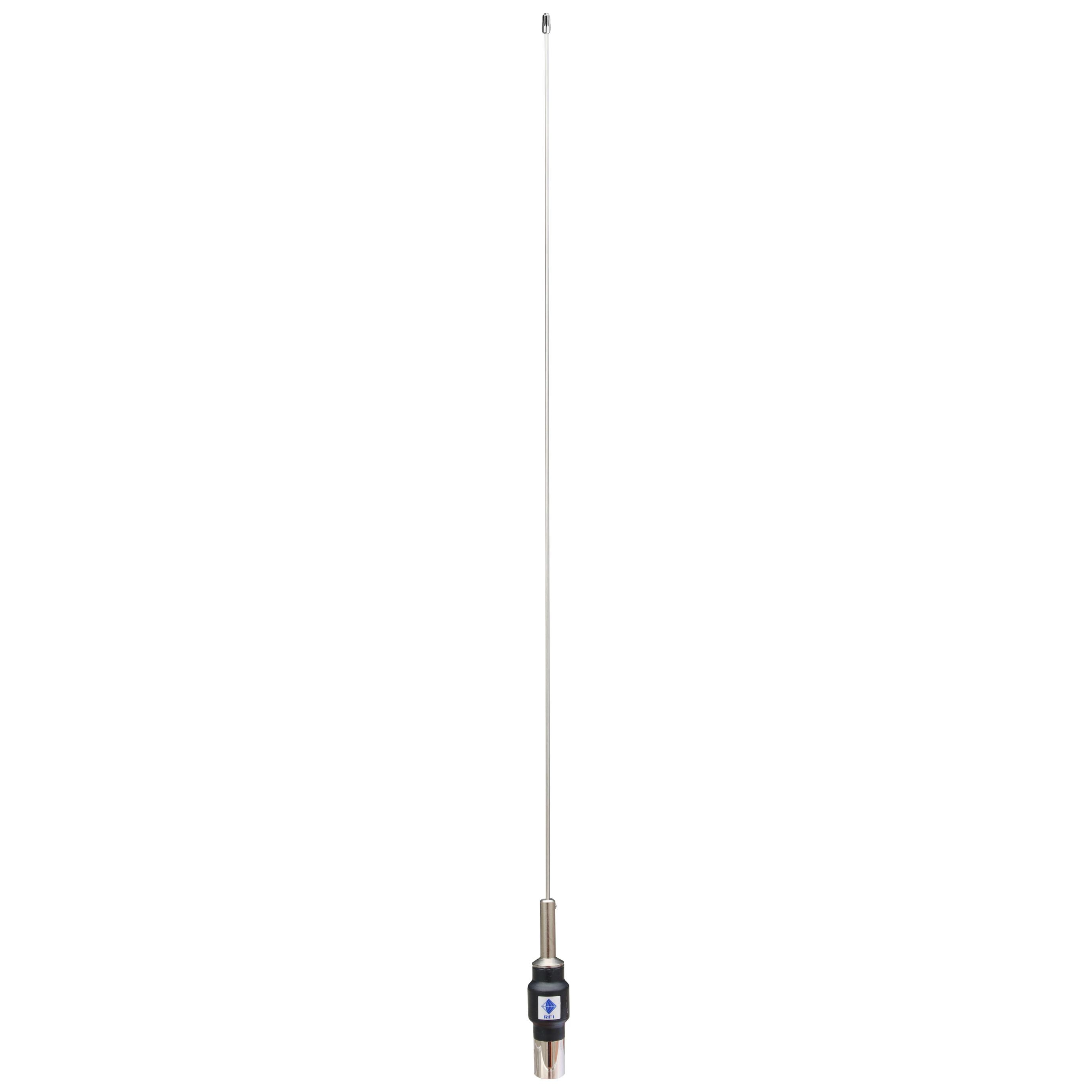

RFI VHF 3dB Mopole Antenna (148-174 MHz); Stud Mount 5m No Connector
The CD28 series are ground independent Mopole™ antennas ideal in "alternative" mounting positions such as gutter, mirror or trunk mounts.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 148-174
- GAIN (DBI)
- 3dB over a 1/4 wave whip
- VSWR
- 5 MHz @ 1.5:1 / 10 MHz @ 2.0:1
- POWER (W)
- 50
- POLARISATION
- Vertical
- TUNED BANDWIDTH
- 5 MHz @ 1.5:1 / 10 MHz @ 2.0:1
- WHIP MATERIAL
- 17-7 PH tapered stainless steel
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Ground Independent, Stud Mounted, Vehicle
- APPLICATION
- Vehicle Antenna
- WHIP LENGTH (MM)
- 1340
- TUNING
- Field tune to minimum VSWR using supplied chart
