RFI TECHNOLOGY SOLUTIONSPMR / LMRUHF
CD51-68-73

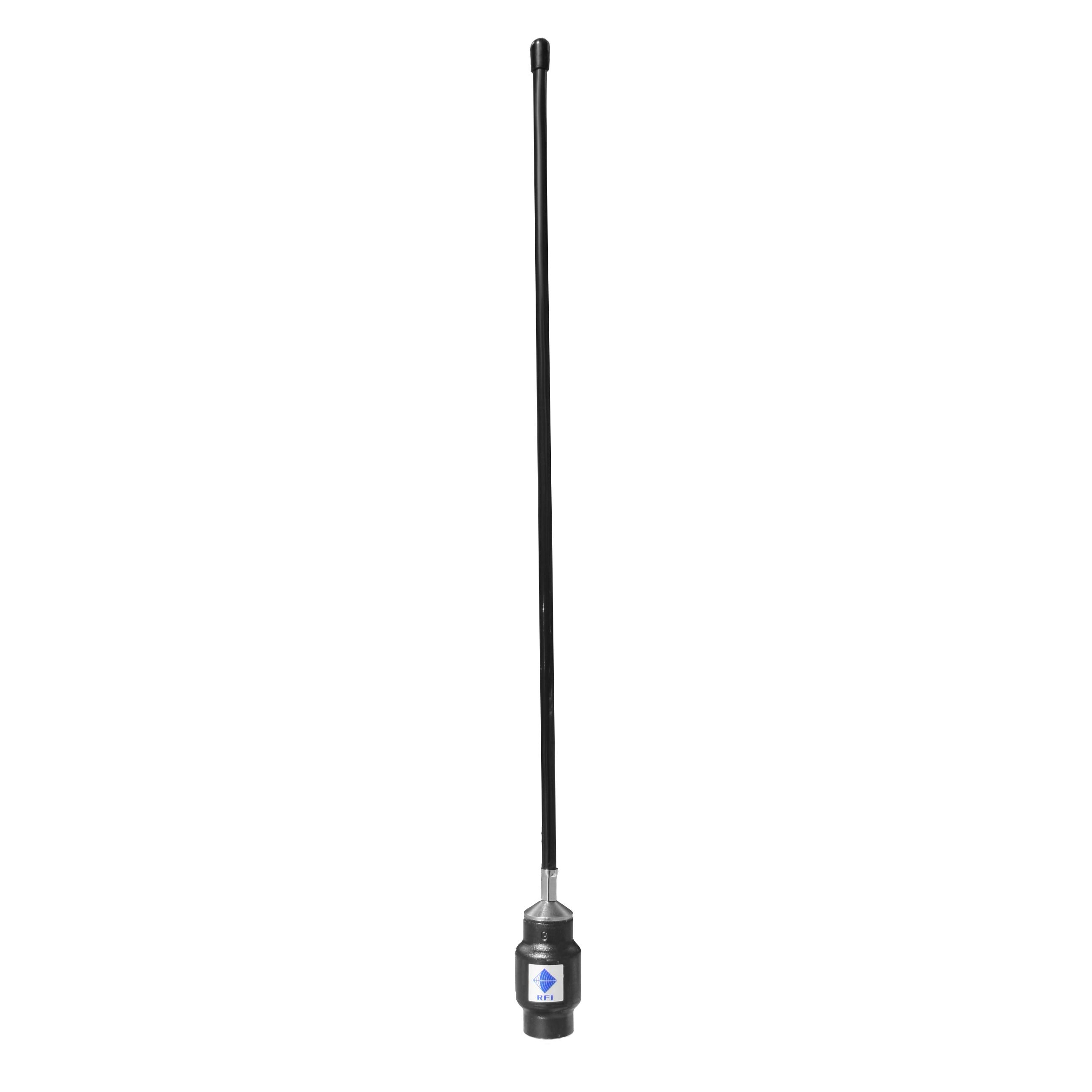

RFI UHF 4dB Mopole Antenna (450-520 MHz); Stud Mount 5m No Connector
The CD50/CD51 Series UHF ground independent Mopole antennas are versatile and popular antennas, providing excellent performance in virtually any mounting position.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 450-520
- BAND
- 450 - 520MHz
- GAIN (DBI)
- 4dB over a 1/4 wave
- VSWR
- 13 MHz @ <1.5:1
- POWER (W)
- 50
- MOUNTING
- Threaded Stud
- TUNED BANDWIDTH
- 13 MHz @ <1.5:1 VSWR
- WHIP MATERIAL
- Copper braid element in flexible nylon tubing
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Ground Independent, Stud Mounted, Vehicle
- APPLICATION
- Vehicle Antenna
- WHIP LENGTH (MM)
- 360
- TUNING
- Field tune to minimum VSWR using supplied tuning chart
