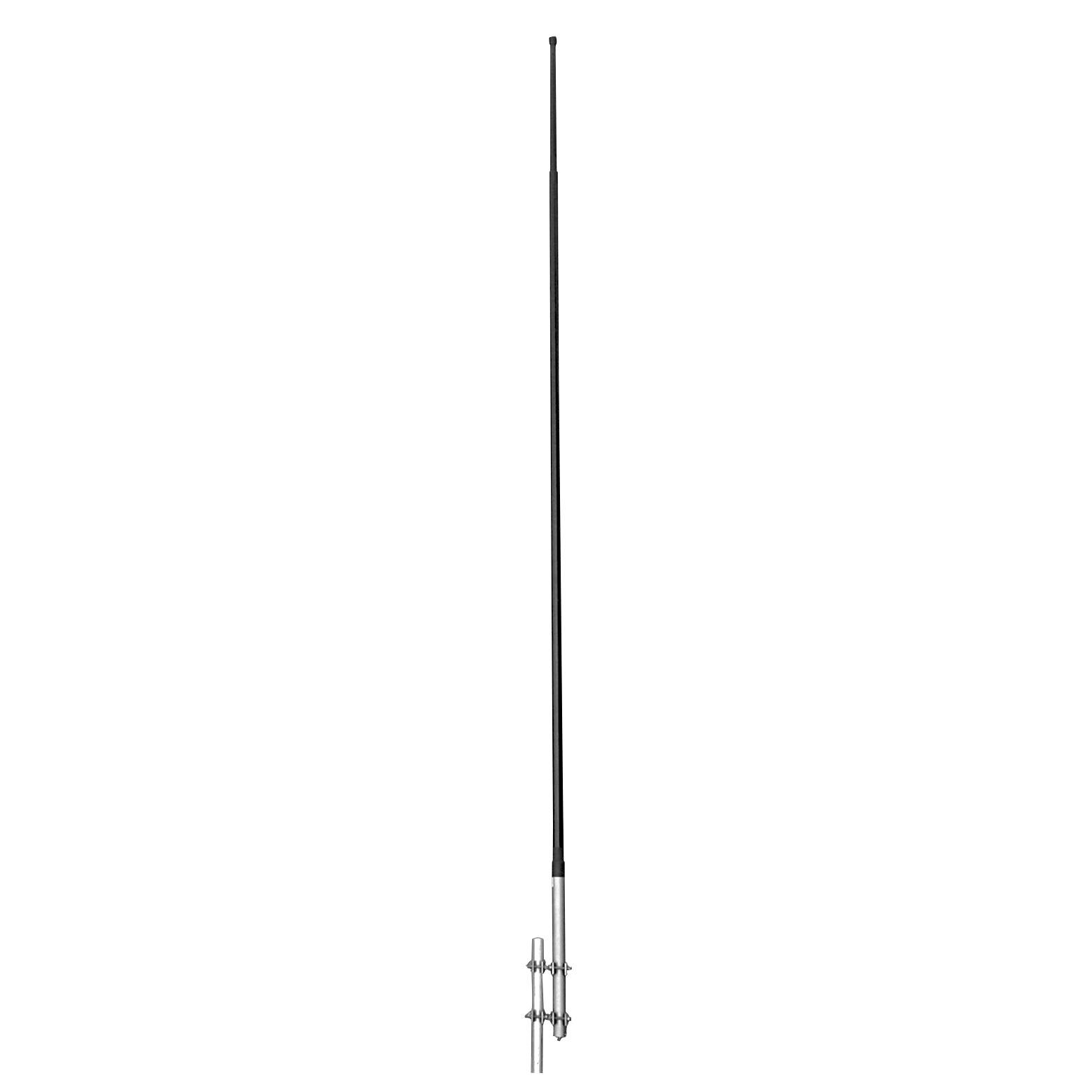

COL12
UHF Collinear 380-530MHz Custom Tuned - 6 dBd
A range of high gain omnidirectional collinear antennas, the COL8 and COL12 are electrically identical and differ only in their physical construction. An operating bandwidth of 10 MHz is provided within VSWR limits of less than 1.5:1, making them suitable for single and multi frequency applications. The antennas include internal DC grounding for lightning protection and the reduction of static noise.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 380 - 530
- VSWR
- <1.5:1
- POWER (W)
- 200
- TERMINATION
- N female bulkhead
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 14°
- MOUNTING
- 500mm x 60mm diam. alodined aluminium
- CONSTRUCTION
- Alodined aluminium elements with black ruggedised fibreglass radome
- TUNED BANDWIDTH
- 10MHz
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Collinears
- APPLICATION
- Base Station Antenna
