COL43-430-P

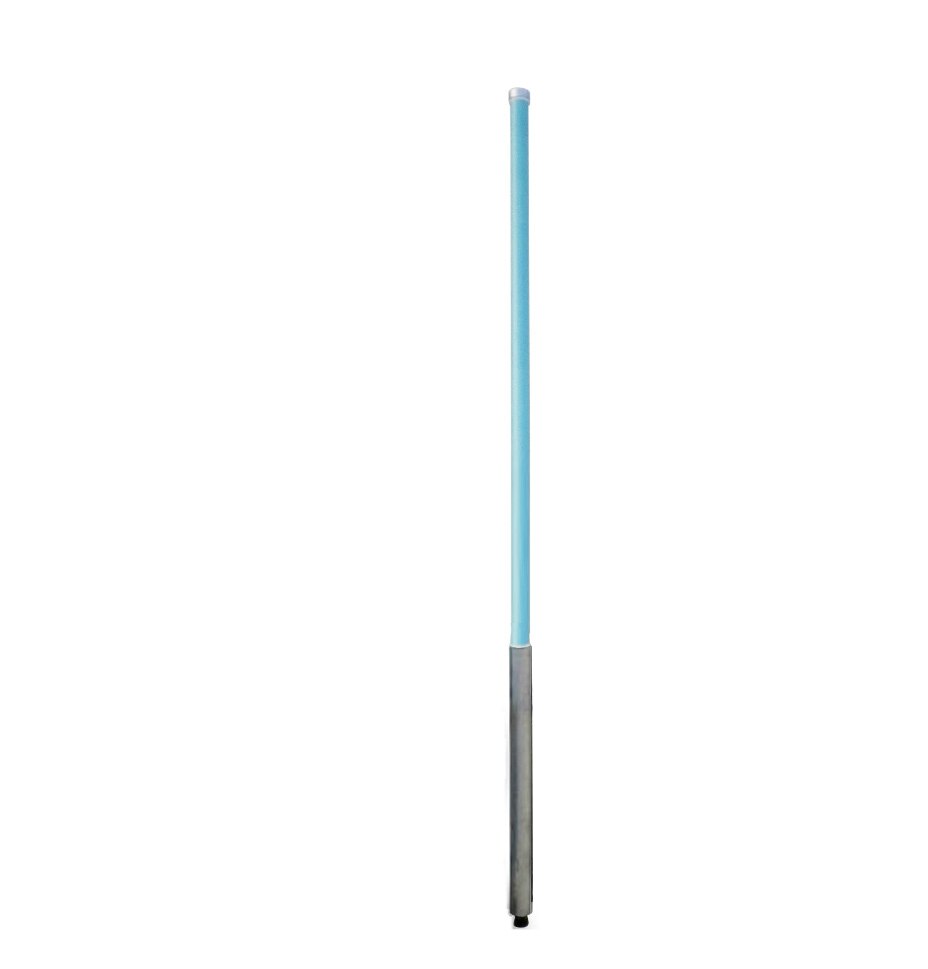

UHF Meander™ Collinear Antenna 410-430 MHz - 5dBd, 4.3-10
This range of Meander™ collinear antennas has been specifically designed for wireless applications requiring high performance, broad bandwidth and exceptional PIM and PIP specifications.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 410-430
- VSWR
- <1.5:1
- POWER (W)
- 250
- PEAK POWER (KW)
- 25
- PIM 3RD ORDER (DBC)
- -150
- TERMINATION
- 4.3-10
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 21°
- MOUNTING
- 500mm x 48.4mm diameter Ecofilm™ plated aluminium
- CONSTRUCTION
- Composite fibreglass sky blue radome, aluminum mounting tube
- TUNED BANDWIDTH
- Full band
- RADOME DIAMETER (MM)
- 38
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Collinears
- APPLICATION
- Base Station Antenna
