RFI TECHNOLOGY SOLUTIONSPMR / LMRVHF
COL51-174-P

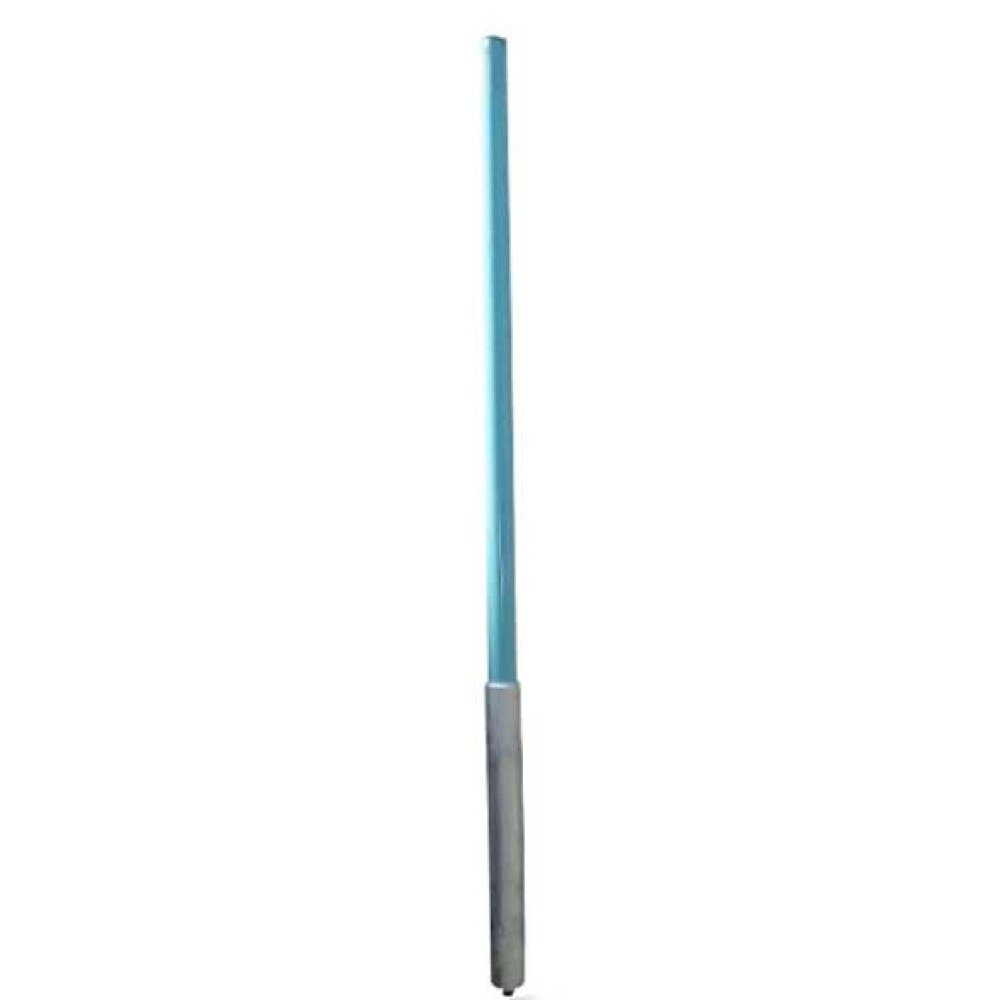

VHF Meander™ Collinear Antenna 162-174 MHz - Unity gain, 4.3-10
Features: ▪ Excellent bandwidth providing full band coverage ▪ Internally DC grounded for lighting protection and reduction of precipitation noise ▪ Low -150dBc PIM performance and excellent 25kW PIP rating ▪ Patented Meander PCB design for optimum RF stability and repeatability
SPECIFICATIONS
- FREQUENCY (MHZ)
- 162-174
- VSWR
- <1.5:1
- POWER (W)
- 400
- PEAK POWER (KW)
- 25
- PIM 3RD ORDER (DBC)
- -150
- TERMINATION
- 4.3-10
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 82°
- MOUNTING
- 750mm x 90mm diam. aluminum
- CONSTRUCTION
- Composite fiberglass sky blue radome, aluminum mounting tube
- TUNED BANDWIDTH
- Full band
- RADOME DIAMETER (MM)
- 76
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Collinears
- APPLICATION
- Base Station Antenna
