COL53-150-P

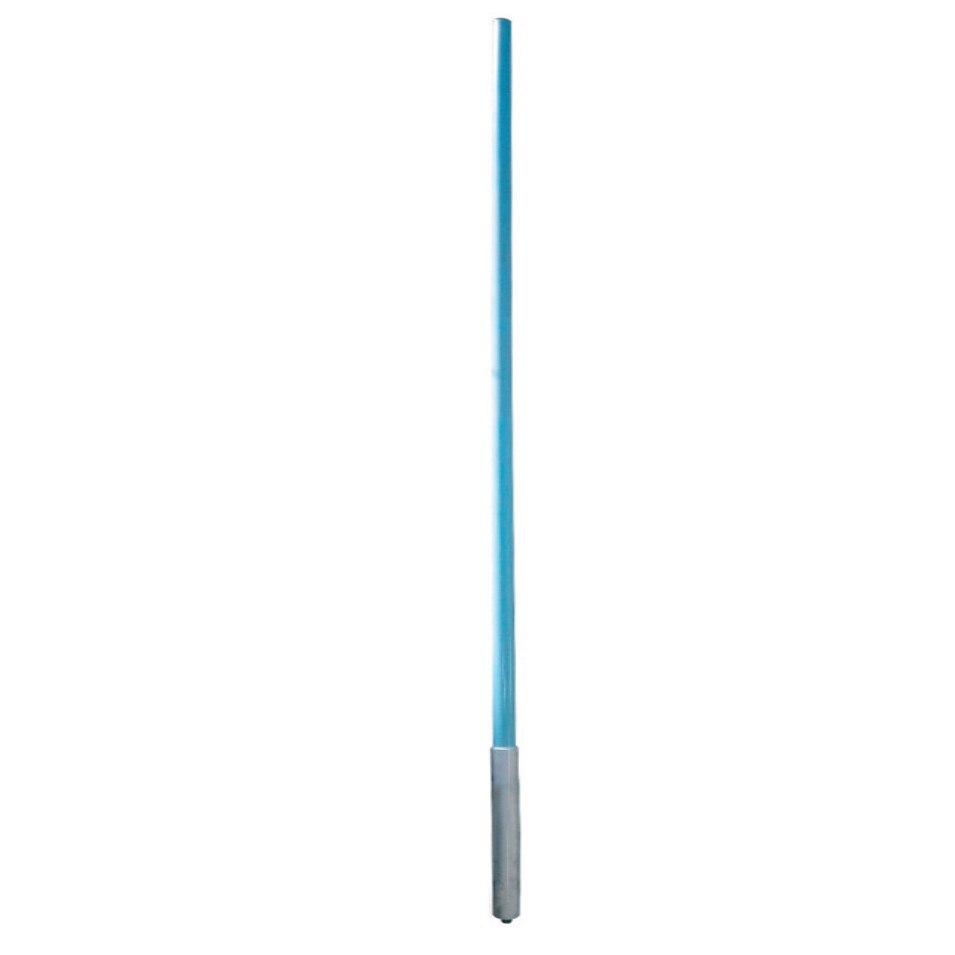

VHF Meander™ Collinear Antenna 140-150 MHz - 4dBd, 4.3-10
Excellent bandwidth providing full band coverage Internally DC grounded for lightning protection and the reduction of precipitation noise Patented Meander™ PCB design for optimum RF pattern stability Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum network performance.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 140-150
- VSWR
- <1.5:1
- POWER (W)
- 400
- PEAK POWER (KW)
- 25
- PIM 3RD ORDER (DBC)
- -150
- TERMINATION
- 4.3-10
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/- 0.5dB
- VERTICAL BEAMWIDTH
- 23.4°
- MOUNTING
- 750mm x 90mm diam. aluminum
- CONSTRUCTION
- Composite fiberglass sky blue radome, aluminum mounting tube
- TUNED BANDWIDTH
- Full band
- RADOME DIAMETER (MM)
- 76
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Collinears
- APPLICATION
- Base Station Antenna
