RFI TECHNOLOGY SOLUTIONSDUPLEXERSVHF

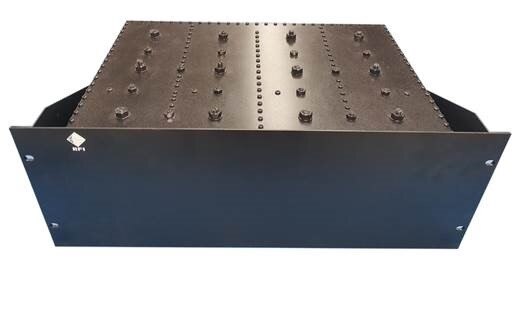

DP1517-0882-32
RFI Duplexer, Bandpass 151-172MHz, 2MHz Pass Bandwidth, *21MHz T/R*, 200W, 4RU; N(f)
The especially high minimum Tx to Rx frequency separation of these models make them specifically suited for the 21MHz frequency splits in VHF Hi-band which are commonly used in mining applications.
SPECIFICATIONS
- FREQUENCY RANGE
- 151 - 172
- CONNECTOR
- N(F)
- COMPONENT TYPE
- Duplexer
- OPERATING TEMPERATURE
- -30 to +60°C / -22 to +140°F
- INSERTION LOSS (DB)
- 1.5(max)
- DIMENSIONS
- 177.8x483x310mm
- PASS BANDWIDTH
- 2
