RFI TECHNOLOGY SOLUTIONSDUPLEXERSVHF

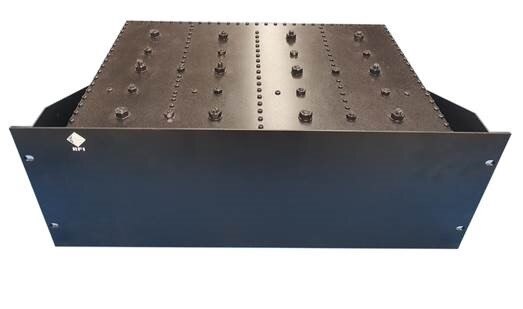

DP1616-0882-32
RFI Duplexer ,Bandpass 164-171MHz, 2MHz Pass Bandwidth, 3.5MHz T/R ,200W ,4RU; N(f)
These units are compact high performance full bandpass duplexers that are ideally suited to high power mobile or fixed applications. These duplexers feature excellent continuous operating ratings and small overall size, and are milled from a single solid alloy block for excellent mechanical and temperature stability. Other frequency ranges, power ratings, connector and mounting styles are also available.
SPECIFICATIONS
- FREQUENCY RANGE
- 164 - 171
- CONNECTOR
- N(F)
- COMPONENT TYPE
- Duplexer
- OPERATING TEMPERATURE
- -30 to +60°C / -22 to +140°F
- INSERTION LOSS (DB)
- 1.5(max)
- DIMENSIONS
- 177.8x483x310mm
- PASS BANDWIDTH
- 2
