RFI TECHNOLOGY SOLUTIONSDUPLEXERSUHF
DP4042-5166-NR

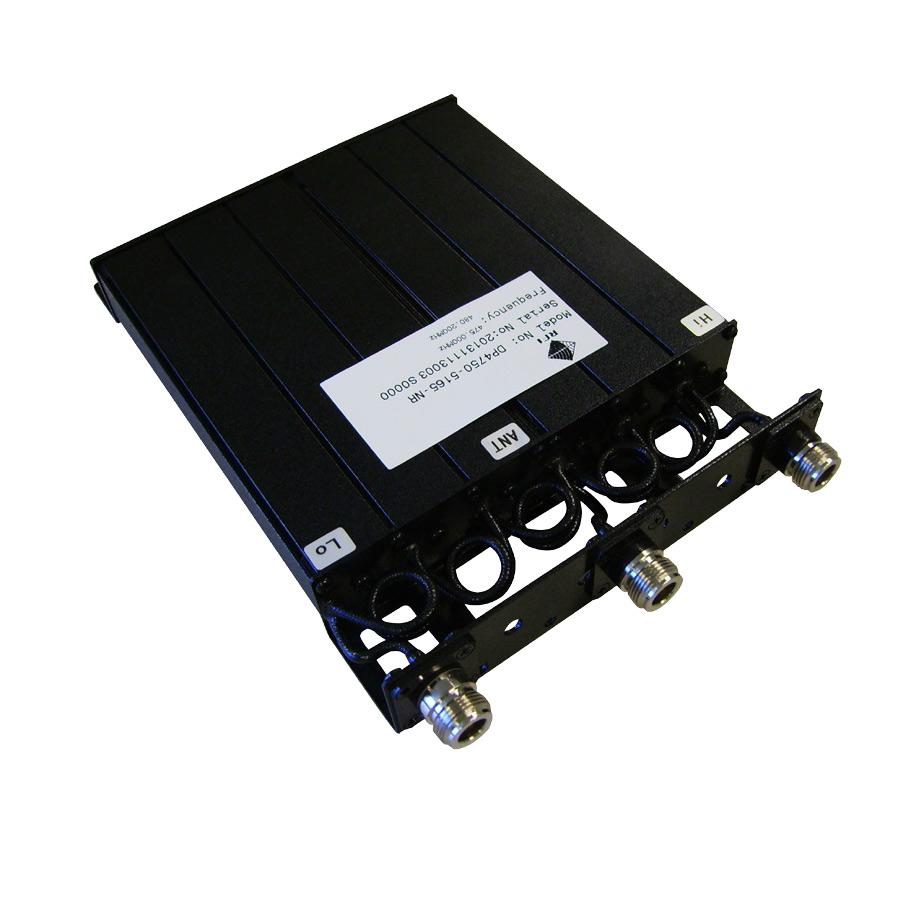

RFI Duplexer ,Mobile Notch 400-420MHz, 6MHz T/R ,50W; N(f)
Where space is restricted and temperatures can vary considerably, RFI’s range of rugged six resonator mobile notch duplexers are ideal for use as a single duplex channel duplexer. The good Lo to Hi port-to-port isolation reduces the risk of carrier desensitisation in the nominated Rx port. A range of different Tx to Rx splits in the common UHF subbands are available.
SPECIFICATIONS
- FREQUENCY RANGE
- 400 - 420
- CONNECTOR
- N(F)
- FINISH
- Painted Black
- MOUNTING
- Flat Surface Mounting
- OPERATING TEMPERATURE
- -30° C to +60° C / -22° F to 140° F
- DIMENSIONS
- W 155 (6.1") x H 32.5 (1.28")
