RFI TECHNOLOGY SOLUTIONSPMR / LMRVHF
EA40-41-P

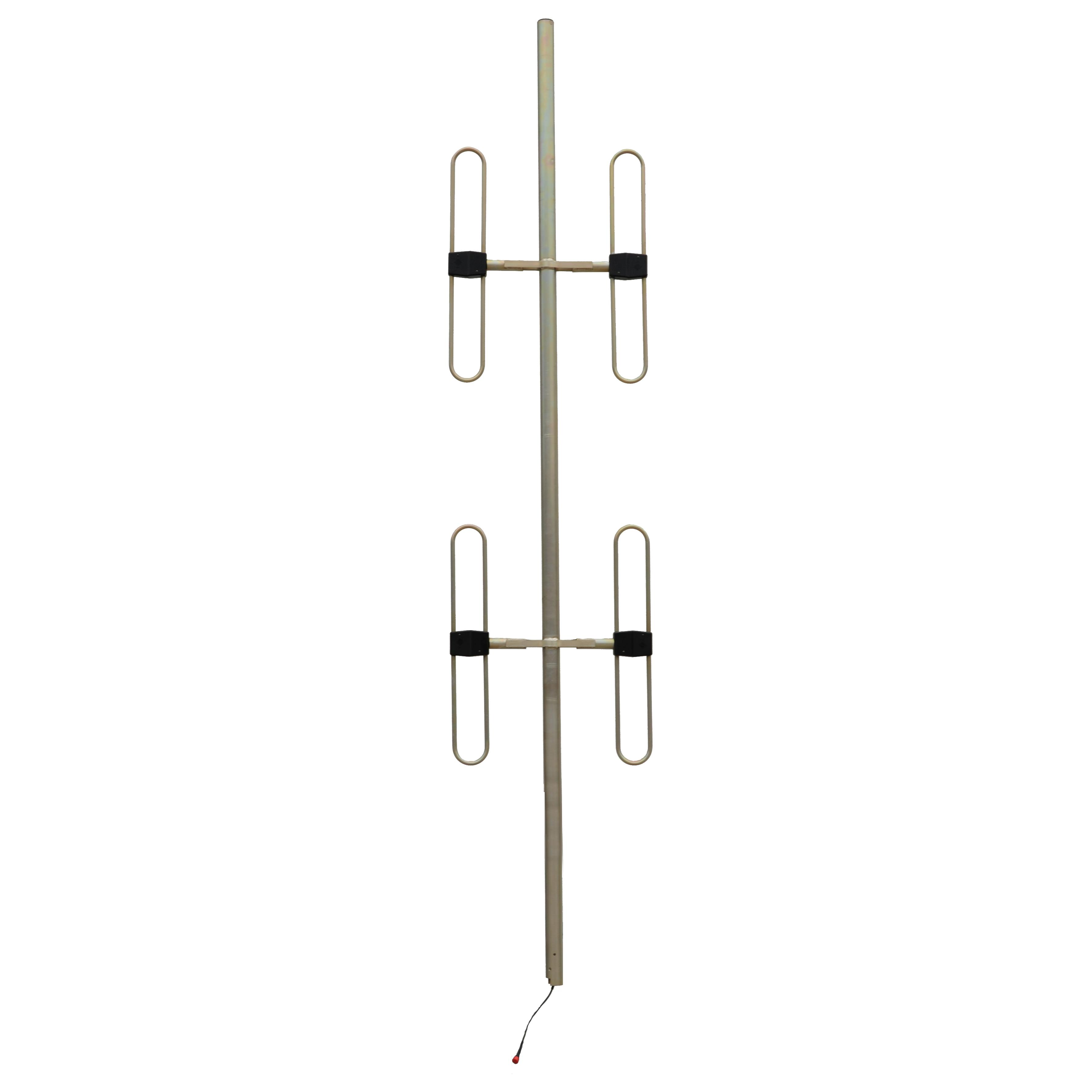

VHF Elliptical Dipole Array 136-174MHz - 5 dBd
These high performance VHF binary phased elliptical arrays are ideal for the bi-directional coverage requirement of paging and VHF high band mobile “corridor” applications. The main lobe of these arrays is strong and highly controlled with extensive side lobe suppression ensuring the integrity of the pattern.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 136 - 174
- VSWR
- <1.5:1
- POWER (W)
- 750
- PIM 3RD ORDER (DBC)
- <-150
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 104°
- VERTICAL BEAMWIDTH
- 35°
- MOUNTING
- 750mm x 63mm diam. aluminium
- CONSTRUCTION
- All welded aluminium with alodined finish.
- TUNED BANDWIDTH
- Full. No tuning required
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Exposed Dipole Array
- APPLICATION
- Base Station Antenna
