RFI TECHNOLOGY SOLUTIONSPMR / LMRUHF

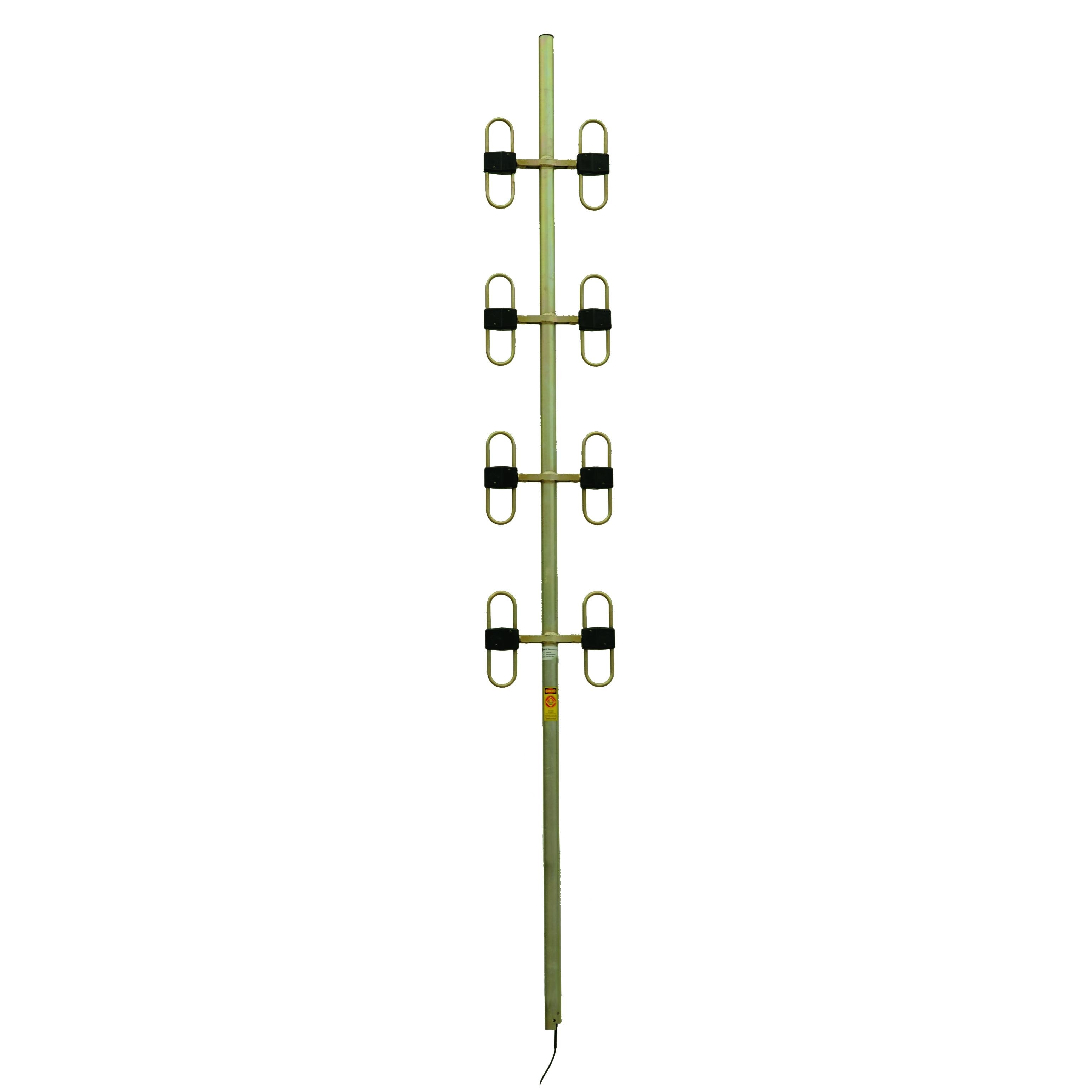

EA80-57-P
UHF Elliptical Dipole Array 330-420MHz - 9 dBd
The EA series arrays provide exceptionally high gain with an elliptical shaped radiation pattern, ideal for the bi-directional coverage requirements of some "corridor" applications.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 330 - 420
- VSWR
- <1.5:1
- POWER (W)
- 500
- PIM 3RD ORDER (DBC)
- <-150
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 74°
- VERTICAL BEAMWIDTH
- 17°
- MOUNTING
- 500mm x 48mm diam. aluminium
- CONSTRUCTION
- All welded aluminium with alodined finish
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Exposed Dipole Array
- APPLICATION
- Base Station Antenna
