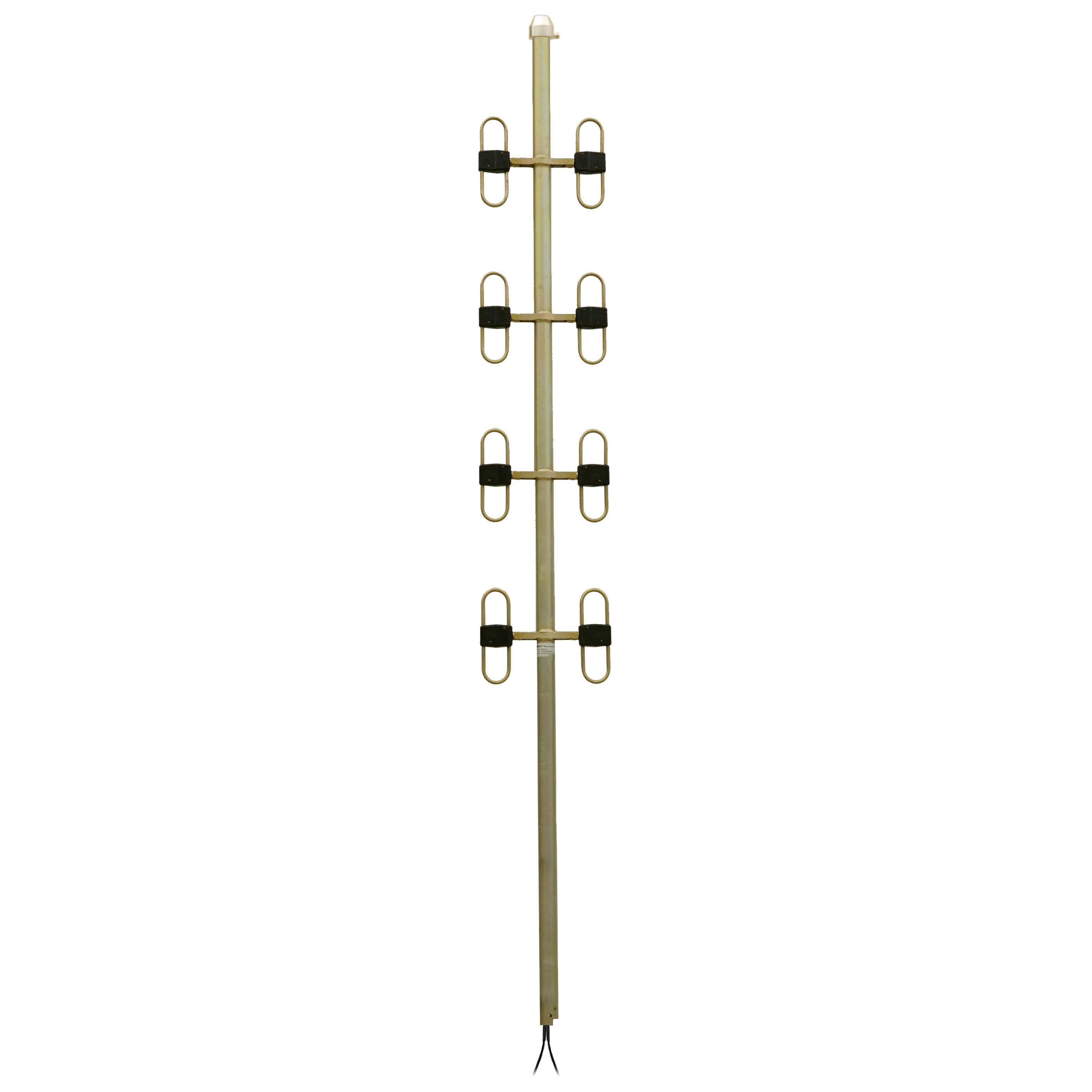

EA80-67L-P
Combination Array Elliptical Lower Section 400-520MHz
The RFI range of UHF dipole arrays provide expanded bandwidth, high power ratings and unequalled performance in gain, pattern and intermodulation performance. Ever increasing costs and site density requirements are reducing availability of antenna positions on prime sites. In order to reduce the overall number of antennas the RFI dipole array series provides system engineers and site owners with a flexible solution to reduce antenna numbers.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 400-520MHz
- VSWR
- <1.5:1
- POWER (W)
- 500
- PIM 3RD ORDER (DBC)
- <-150
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 74°
- VERTICAL BEAMWIDTH
- 17°
- MOUNTING
- 500 x 63.5mm dia.
- CONSTRUCTION
- All welded aluminium with alodined finish
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Exposed Dipole Array
- APPLICATION
- Base Station Antenna
