GP3

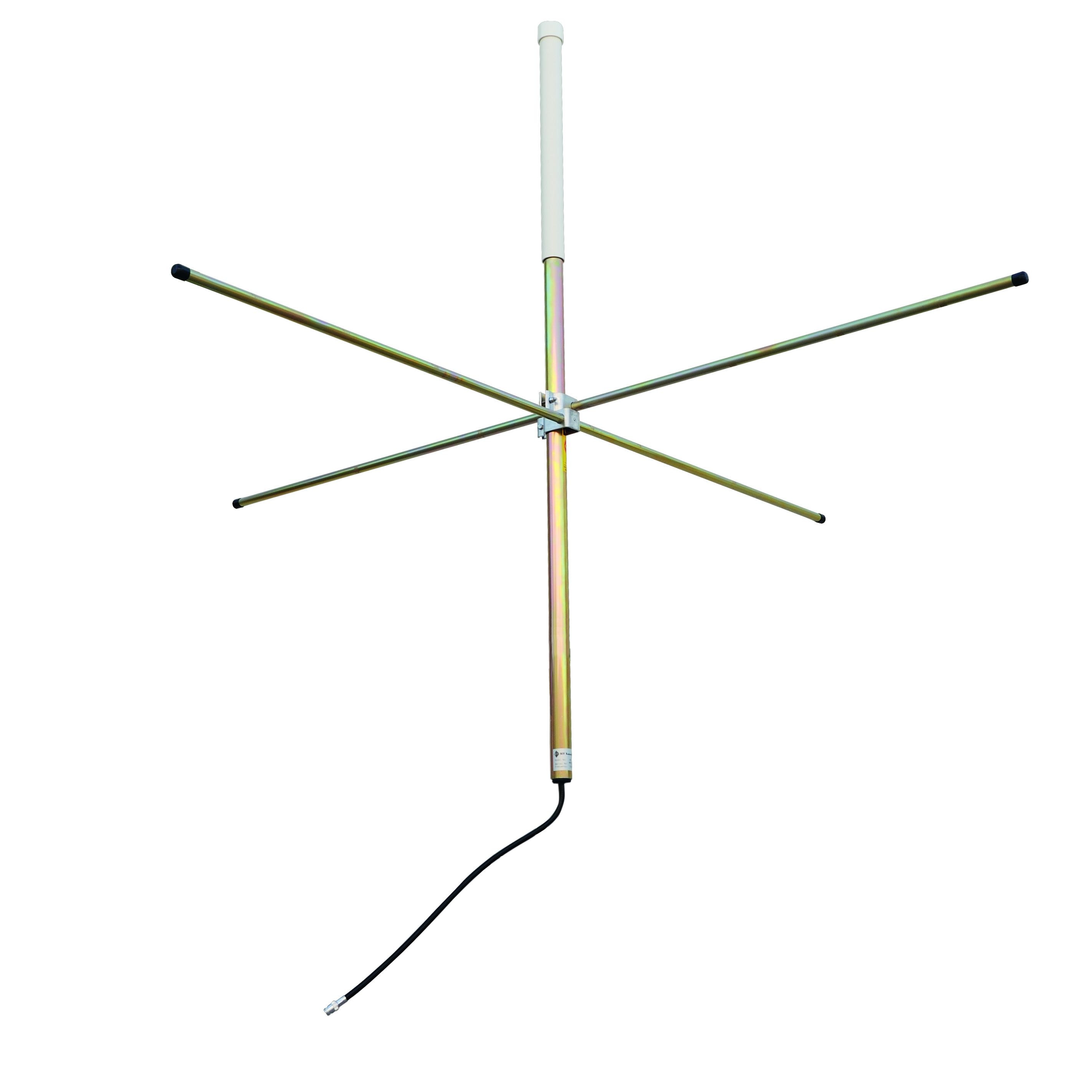

VHF Adjustable Ground Plane 118-136MHz
The GP Series is a range of omnidirectional unity gain adjustable ground plane antennas ideal for local area coverage when a high gain antenna is not required or justified. The broad vertical beamwidth offers excellent null fill for consistent signal coverage. GP Series antennas are easily tuned in the field by adjusting the position of the ground plane elements.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 118 - 136
- VSWR
- <1.5:1
- POWER (W)
- 200
- TERMINATION
- N female with 0.5m RG213 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Omni +/-0.5dB
- VERTICAL BEAMWIDTH
- 75°
- MOUNTING
- 500mm x 40mm diam. aluminium
- CONSTRUCTION
- Heavy duty aluminium radiating element encased in a PVC radome
- TUNED BANDWIDTH
- 10MHz
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Omni-Directional SISO
- APPLICATION
- Base Station Antenna
