OA20-41-P

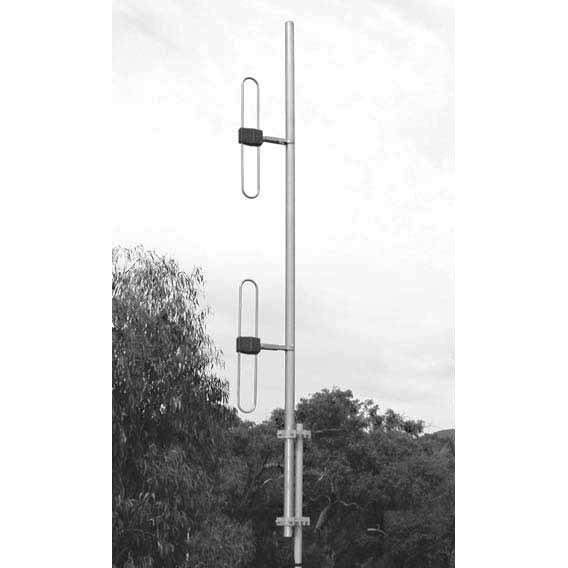

VHF Offset Dipole Array 136-174MHz - 5 dBd
These high performance VHF dipole offset arrays are ideal for use when a cardioid pattern is required. The arrays feature high gain, low noise performance and enhanced null fill coverage with typical cardioid coverage characteristics.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 136 - 174
- VSWR
- <1.5:1
- POWER (W)
- 750
- PIM 3RD ORDER (DBC)
- <-150
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 178°
- VERTICAL BEAMWIDTH
- 35°
- MOUNTING
- 750mm x 63mm diam. aluminium
- FRONT/BACK RATIO (DB)
- 7
- CONSTRUCTION
- All welded aluminium with alodined finish.
- TUNED BANDWIDTH
- Full. No tuning required
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Exposed Dipole Array
- APPLICATION
- Base Station Antenna
