RFI TECHNOLOGY SOLUTIONSPMR / LMRUHF

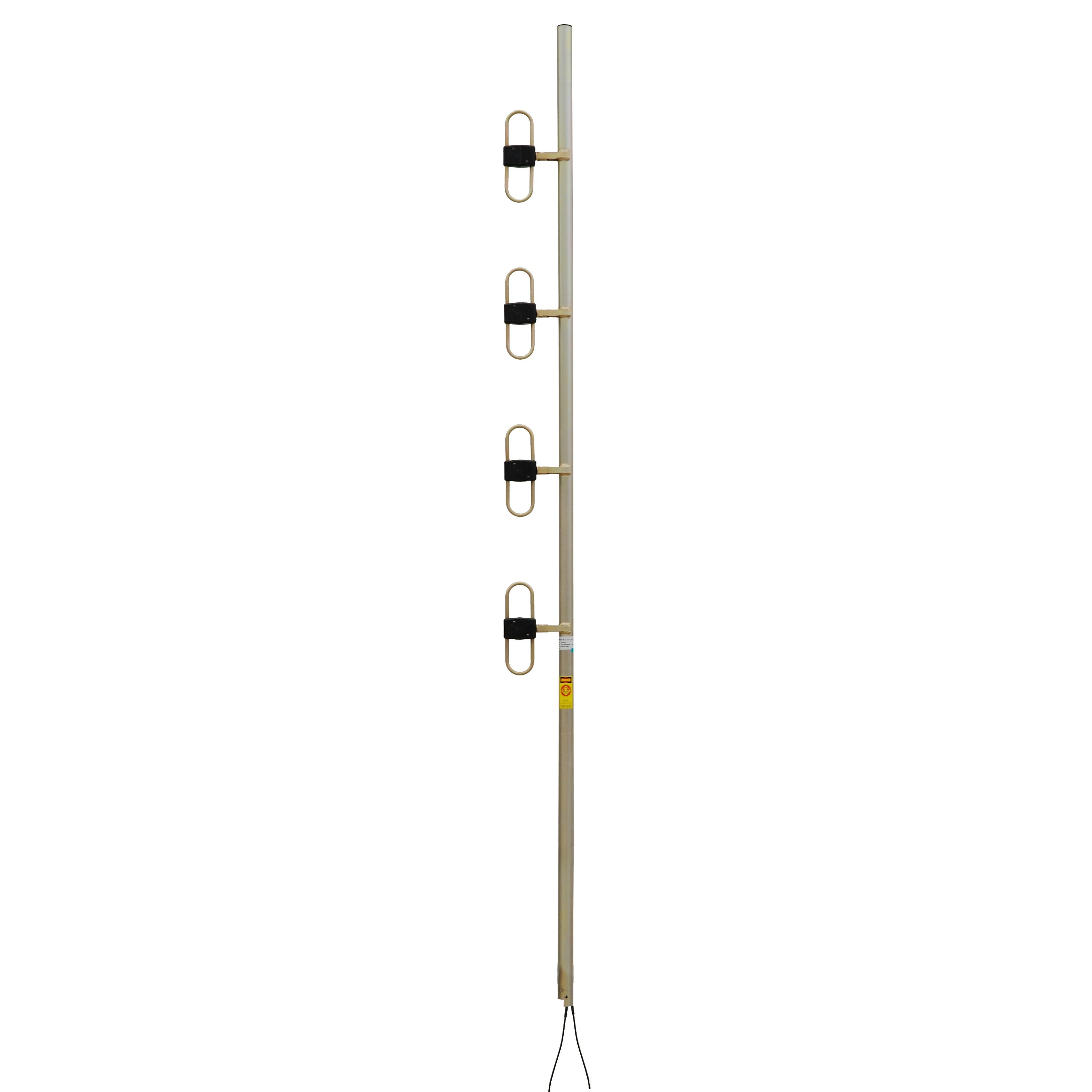

OA2020-57-P
OFFSET ARRAY, 330-420 MHZ WITH 4.3-10 CONN
Features: - Operate over entire 330-420MHz band - Inverted mounting version available - Hermetically sealed internal phasing harness - Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum performance - DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise
SPECIFICATIONS
- FREQUENCY (MHZ)
- 330-420
- VSWR
- <1.5:1
- POWER (W)
- 500
- PIM 3RD ORDER (DBC)
- <-150
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 180°
- VERTICAL BEAMWIDTH
- 35°
- MOUNTING
- 500mm x 48mm diam. aluminium
- CONSTRUCTION
- All welded aluminium with alodined finish
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Exposed Dipole Array
- APPLICATION
- Base Station Antenna
