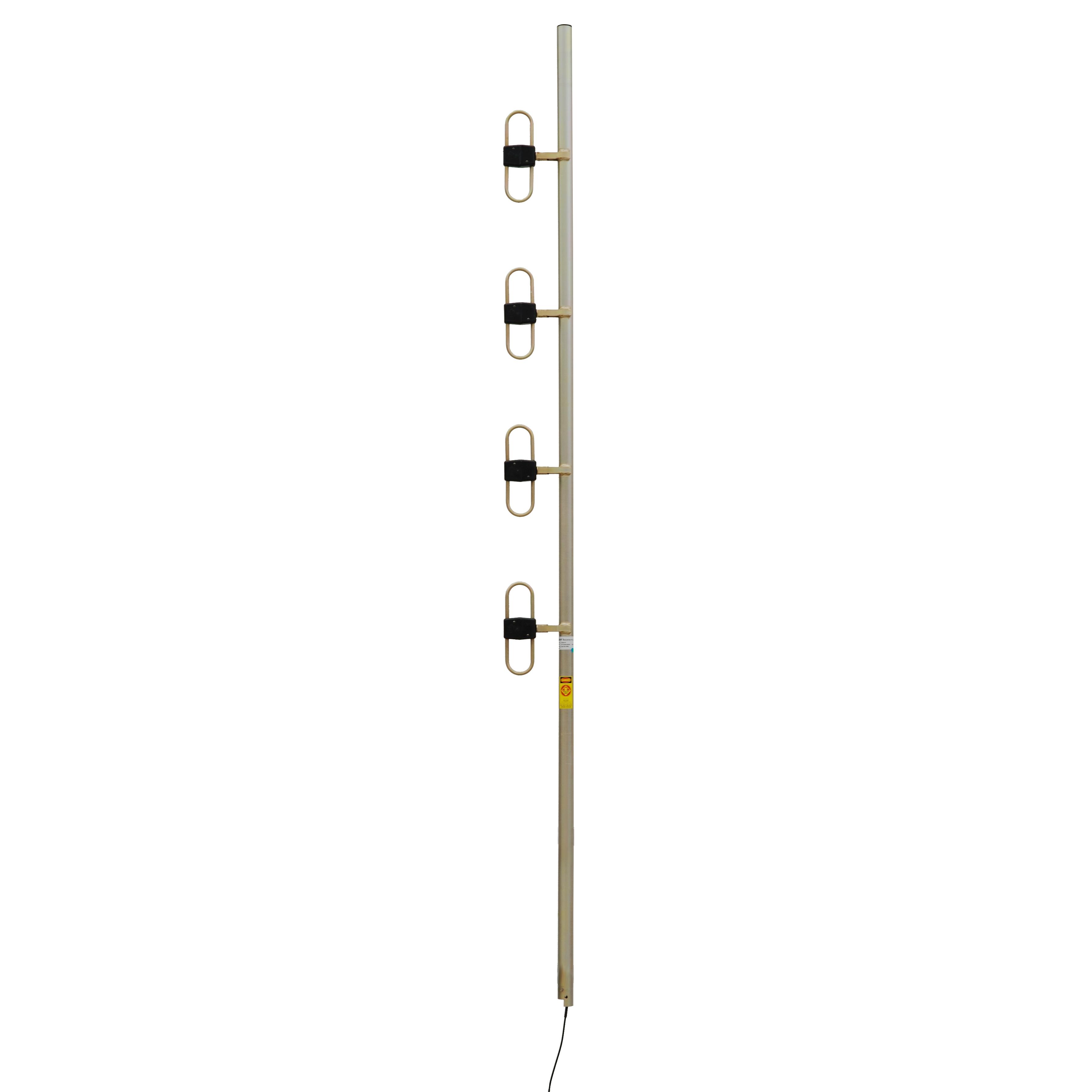

OA40-67-P
UHF Offset Dipole Array 400-520MHz - 9 dBd
Offset arrays are directional antennas for use when a base station is at one end of the coverage area. These new arrays feature improved gains, low noise performance and enhanced null fill coverage in an array with typical cardioid coverage characteristics.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 400 - 520
- VSWR
- <1.5:1
- POWER (W)
- 500
- PIM 3RD ORDER (DBC)
- <-150
- TERMINATION
- 4.3-10 female with 0.5m RG142 cable tail.
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 178°
- VERTICAL BEAMWIDTH
- 17°
- MOUNTING
- 500mm x 48mm diam. aluminium
- CONSTRUCTION
- All welded aluminium with alodined finish
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Exposed Dipole Array
- APPLICATION
- Base Station Antenna
