RDA6-62

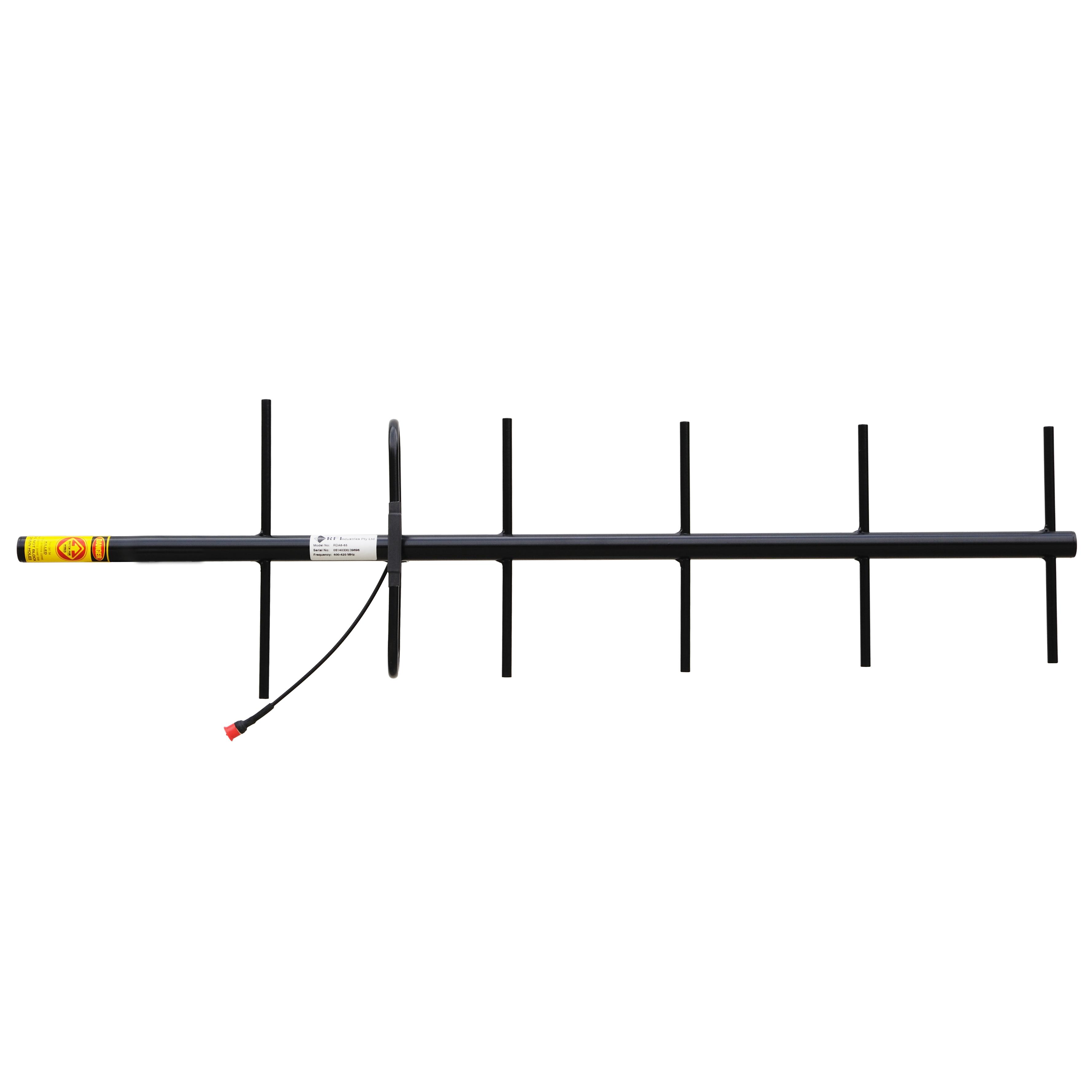

Ruggedised 6 Element Yagi 480-520MHz
The RDA Series are ruggedised high gain yagi antennas which will provide excellent point to point communication in extreme climatic environments. RDA Series antennas exhibit narrow beamwidths and high front to back ratios to help minimise any potential interference to and from other radio systems.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 480 - 520
- VSWR
- <1.5:1
- POWER (W)
- 250
- TERMINATION
- N female with short 9302 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 54°
- VERTICAL BEAMWIDTH
- 45°
- MOUNTING
- 100mm x 32mm diam. powder coated aluminium
- FRONT/BACK RATIO (DB)
- 20
- CONSTRUCTION
- All welded aluminium with black powder coated finish. See note (1)
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Yagis
- APPLICATION
- Base Station Antenna
