SMD10-28

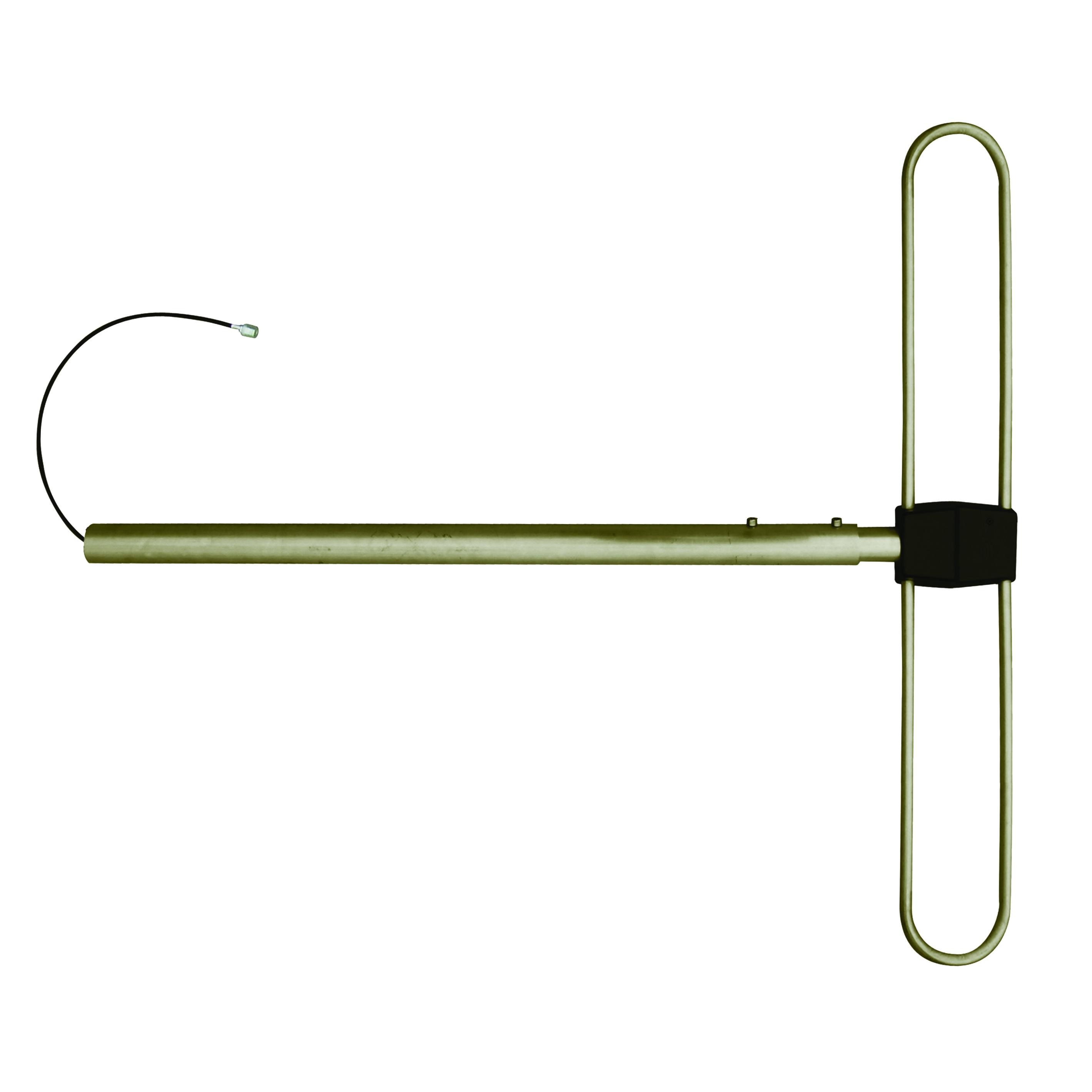

VHF Low PIM Side Mounted Dipole 70-85MHz
The SMD10-28 and SMD20 Series side mounted dipoles are Low PIM broad band antennas which, through different phasing and mounting arrangements can offer a variety of patterns (generally cardioid) tailored to specific coverage requirements. These antennas can be mounted in dual arrays for 3dB gain, or four-stack arrays for 6dB gain over a single dipole.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 70 - 85
- VSWR
- <1.5:1
- TERMINATION
- N female with 9142 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Typically 211° at ¼ l antenna - mast spacing
- VERTICAL BEAMWIDTH
- Typically 76° at ¼ l antenna - mast spacing
- MOUNTING
- 500mm x 48mm diam. aluminium
- CONSTRUCTION
- Welded aluminium with alodined finish
- TUNED BANDWIDTH
- Full. No tuning required
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Side Mounted Dipoles
- APPLICATION
- Base Station Antenna
