SMD12

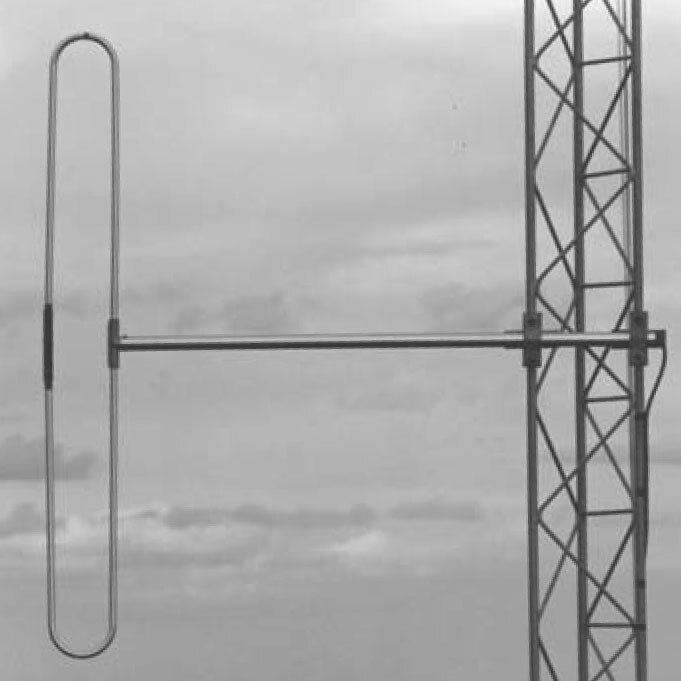

VHF Side Mounted Dipole 70-85MHz - 3.0kg
The SMD1 Series side mounted dipoles are broad band antennas which, through different phasing and mounting arrangements, can offer a variety of patterns (generally cardioid) tailored to specific coverage requirements. These antennas can be mounted in dual arrays for 3dB gain, or four-stack arrays for 6dB gain over a single dipole.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 70 - 85
- VSWR
- <1.5:1
- POWER (W)
- 300
- TERMINATION
- N female with RG213
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Typically 260° at ¼ l antenna - mast spacing
- VERTICAL BEAMWIDTH
- Typically 74° at ¼ l antenna - mast spacing
- MOUNTING
- 300mm x 40mm diam. aluminium
- CONSTRUCTION
- Heavy duty aluminium with black epoxy finish
- TUNED BANDWIDTH
- Entire band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Side Mounted Dipoles
- APPLICATION
- Base Station Antenna
