SMD2

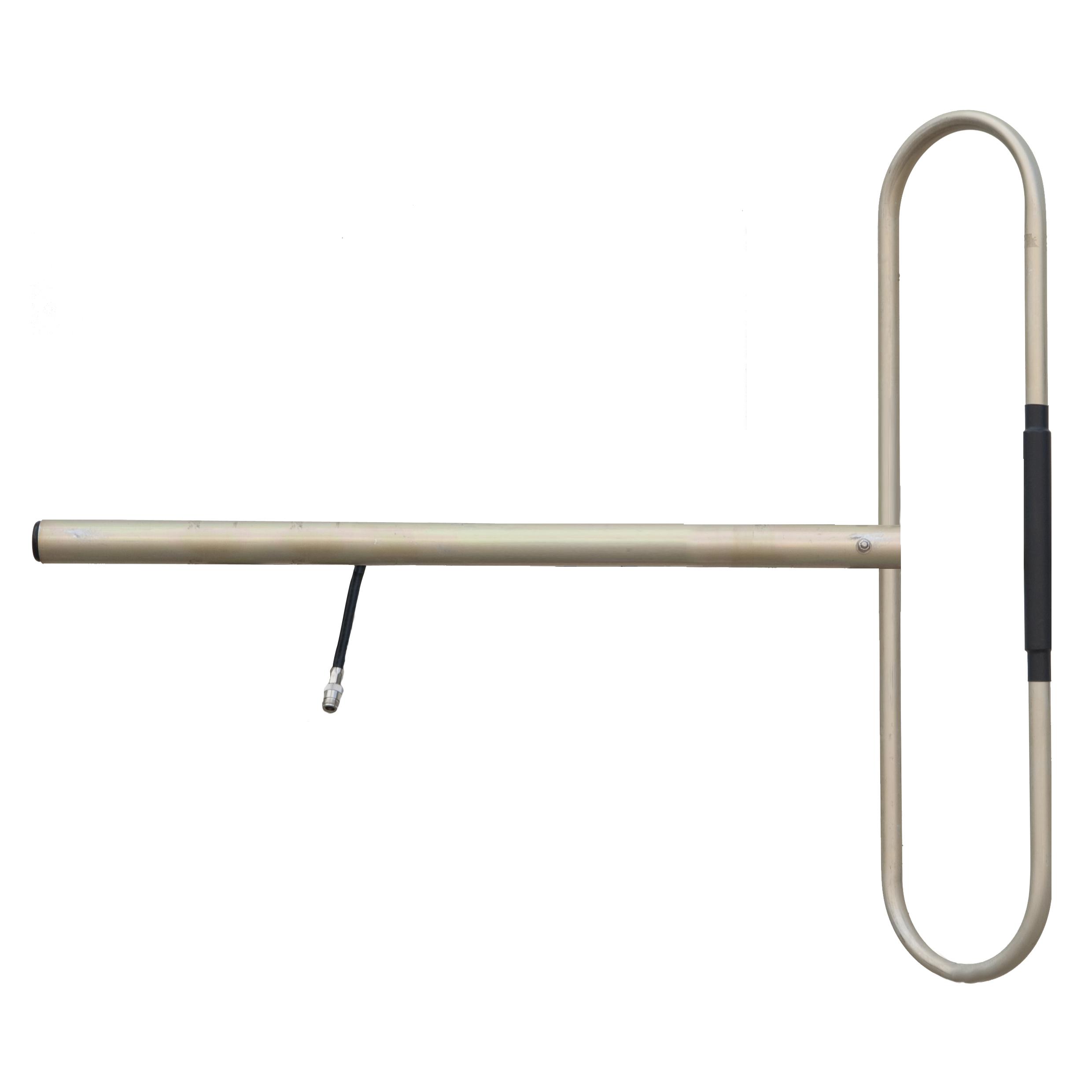

VHF Side Mounted Dipole 148-175MHz - 1.5Kg
The SMD2 Series side mounted dipoles are broad band antennas which, through different phasing and mounting arrangements can offer a variety of patterns (generally cardioid) tailored to specific coverage requirements. These antennas can be mounted in dual arrays for 3dB gain, or four-stack arrays for 6dB gain over a single dipole.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 148 - 175
- VSWR
- <1.5:1
- POWER (W)
- 250
- TERMINATION
- N female with RG213 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Typically 230° at ¼ l antenna - mast spacing
- VERTICAL BEAMWIDTH
- Typically 74° at ¼ l antenna - mast spacing
- MOUNTING
- 300mm x 40mm diam. aluminium
- CONSTRUCTION
- Thick walled aluminium with cast aluminium hub
- TUNED BANDWIDTH
- Full. No tuning required
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Side Mounted Dipoles
- APPLICATION
- Base Station Antenna
