SMD41-99-P

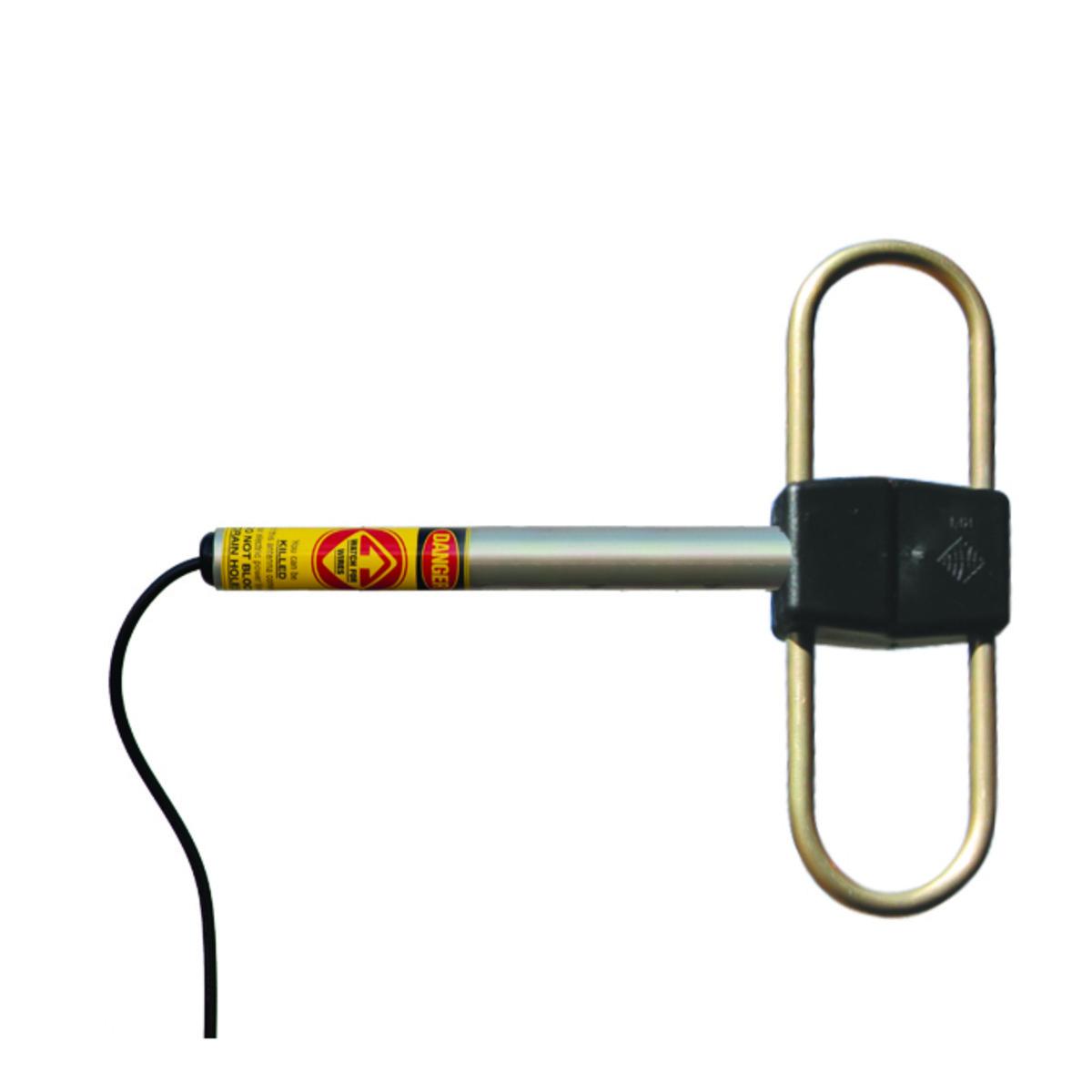

UHF Stainless Steel Side Mounted Dipole 360-600MHz Custom Tuned
The SMD4 series are a range of unity gain side mounted dipoles which can be used as a single antenna for short range applications or, if desired, phased together to provide high gain array coverage characteristics.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 360 - 600
- VSWR
- <1.5:1
- POWER (W)
- 500
- PIM 3RD ORDER (DBC)
- <-140
- TERMINATION
- N female with short 9142 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- Typically 220° at ¼ l antenna - mast spacing
- VERTICAL BEAMWIDTH
- Typically 70° at ¼ l antenna - mast spacing
- MOUNTING
- 100mm x 25mm diam. Alodined aluminium
- CONSTRUCTION
- Stainless steel
- TUNED BANDWIDTH
- 20.00%
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Side Mounted Dipoles
- APPLICATION
- Base Station Antenna
