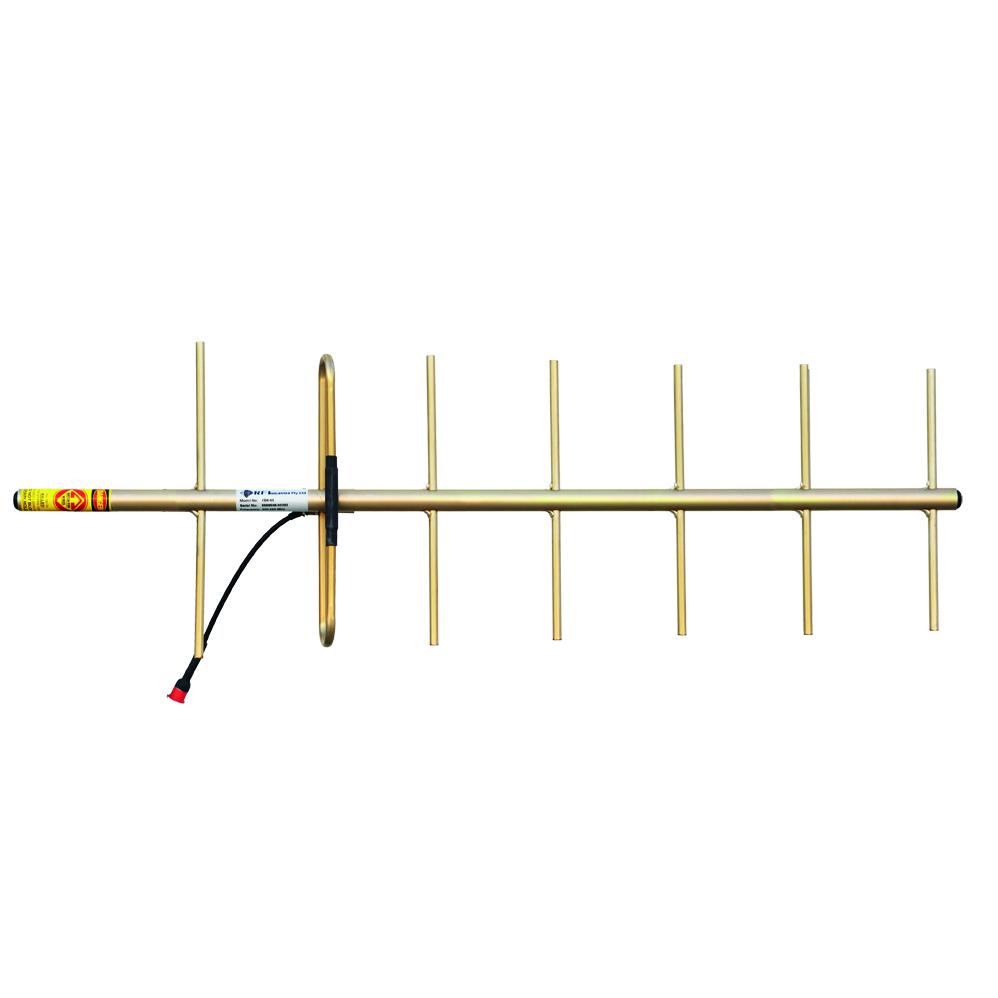

YB7-65
7 Element Yagi 400-420MHz
The YB Series are high gain yagi antennas which will provide excellent point to point communication in RF control, short or long haul link and other applications calling for highly directional antennas. YB Series antennas exhibit narrow beamwidths and high front to back ratios to help minimise potential interference to and from other systems. The YB7-65 has been designed to conform with ACMA RALI specifications for low spectrum density areas.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 400 - 420
- VSWR
- <1.5:1
- POWER (W)
- 100
- TERMINATION
- N female with 9008 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 52°
- VERTICAL BEAMWIDTH
- 45°
- MOUNTING
- 100mm x 25mm diam.
- FRONT/BACK RATIO (DB)
- 18
- CONSTRUCTION
- All welded aluminium with alodined finish
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Yagis
- APPLICATION
- Base Station Antenna
