YB815-99

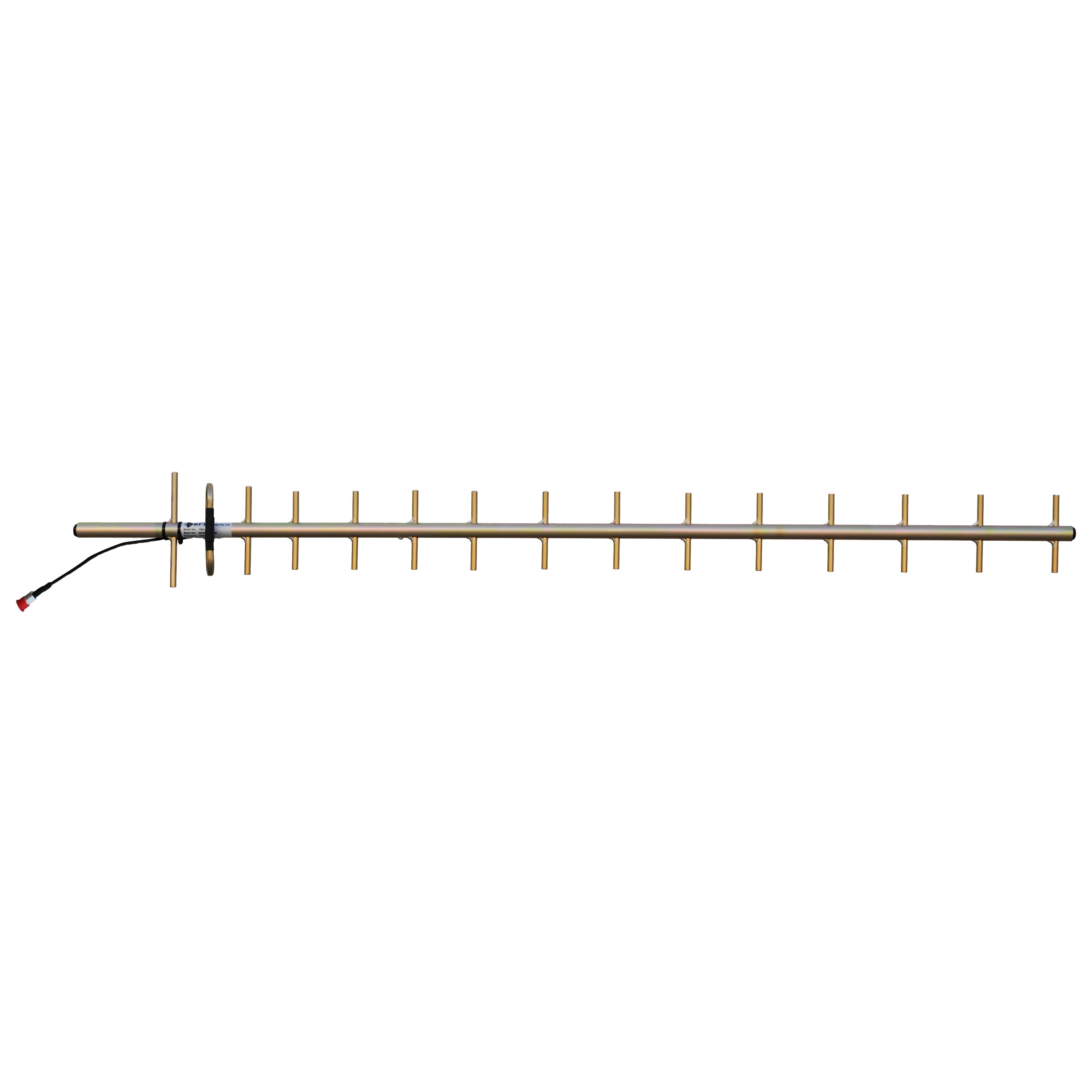

15 Element Yagi 540-1000MHz Custom Tuned
The YB800 Series are high gain yagi antennas which provide excellent point to point communications in RF control, short or long haul link, point to multipoint and other applications calling for highly directional antennas.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 540 - 1000
- VSWR
- <1.5:1
- POWER (W)
- 100
- TERMINATION
- N female with short 9302 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 30°
- VERTICAL BEAMWIDTH
- 30°
- MOUNTING
- 100mm x 25mm diam. aluminium
- FRONT/BACK RATIO (DB)
- 17
- CONSTRUCTION
- All welded aluminium with alodined finish
- TUNED BANDWIDTH
- 5.00%
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Yagis
- APPLICATION
- Base Station Antenna
