RFI TECHNOLOGY SOLUTIONSPMR / LMRUHF
YB9-99-PIM

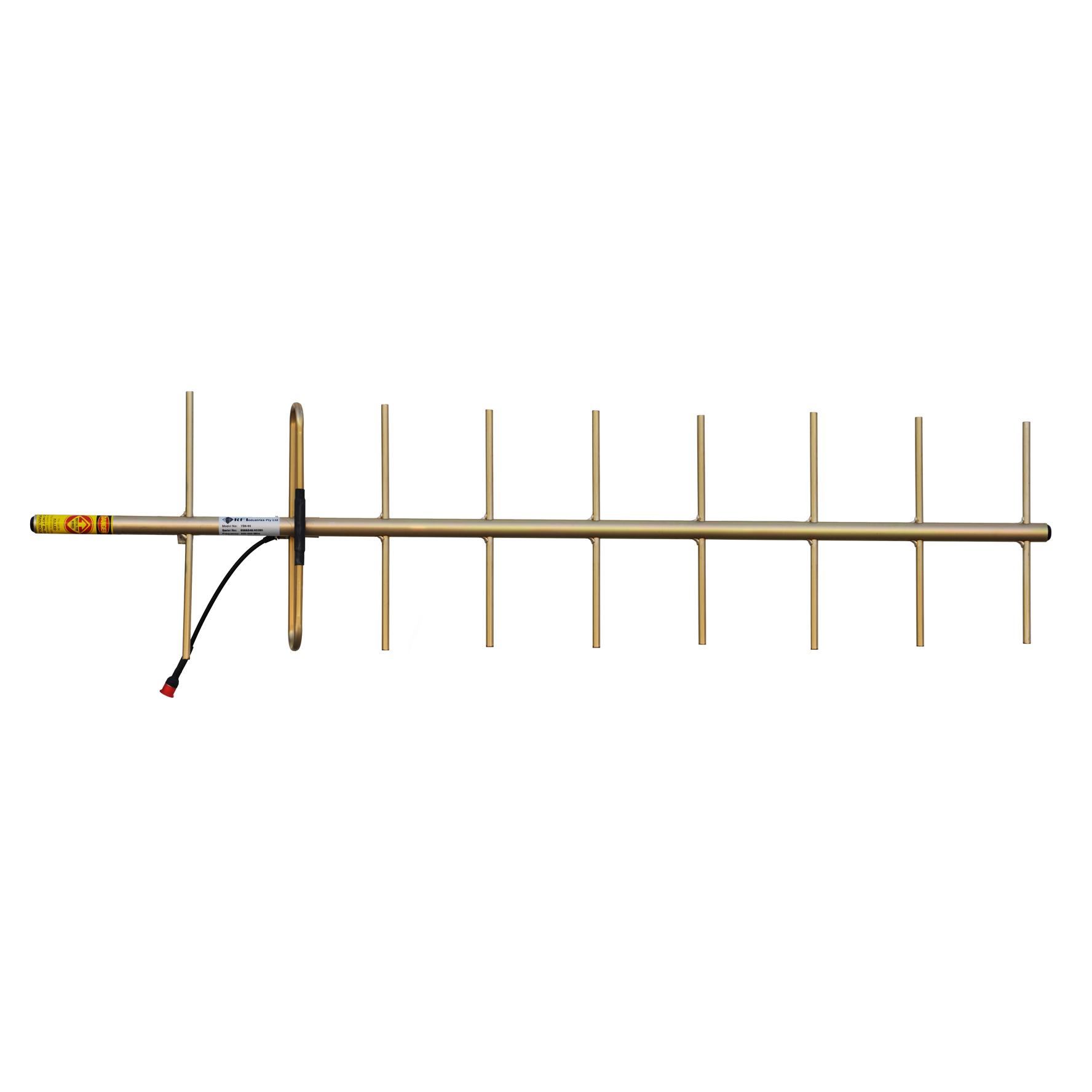

RFI 9 Element Yagi Antenna (400-600 MHz); Custom Tuned, PIM Rated
The YB Series are high gain yagi antennas which will provide excellent point to point communication in RF control, short or long haul link and other applications calling for highly directional antennas. YB Series antennas exhibit narrow beamwidths and high front to back ratios to help minimise potential interference to and from other systems.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 400 - 600
- VSWR
- <1.5:1
- POWER (W)
- 100
- PIM 3RD ORDER (DBC)
- -150
- TERMINATION
- N female with 9008 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 48°
- VERTICAL BEAMWIDTH
- 42°
- MOUNTING
- 100mm x 25mm diam.
- FRONT/BACK RATIO (DB)
- 18 (Typical)
- CONSTRUCTION
- All welded aluminium with alodined finish
- TUNED BANDWIDTH
- 5.00%
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Yagis
- APPLICATION
- Base Station Antenna
