RFI TECHNOLOGY SOLUTIONSPMR / LMR700/800
YBS803-82

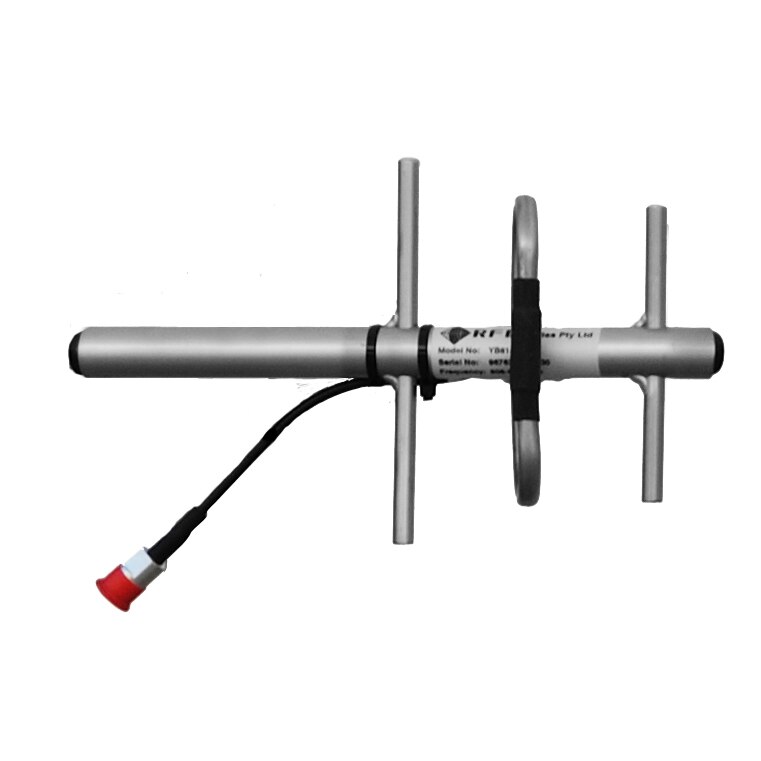

3 Element Stainless Steel Yagi 850-930MHz
The stainless steel YBS800 series yagis are high gain antennas specifically designed to cater for extreme and corrosive environments. They provide an excellent solution for point to point applications in RF control, short or long haul link, piont to multipoint and other applications requiring highly directional antennas.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 850 - 930
- VSWR
- <1.5:1
- POWER (W)
- 100
- TERMINATION
- N female with short 9302 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 100°
- VERTICAL BEAMWIDTH
- 64°
- MOUNTING
- 100mm of 25mm diam. stainless steel
- FRONT/BACK RATIO (DB)
- 14
- CONSTRUCTION
- All welded stainless steel with polished finish
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Yagis
- APPLICATION
- Base Station Antenna
