RFI TECHNOLOGY SOLUTIONSPMR / LMRUHF
YBSS16-71

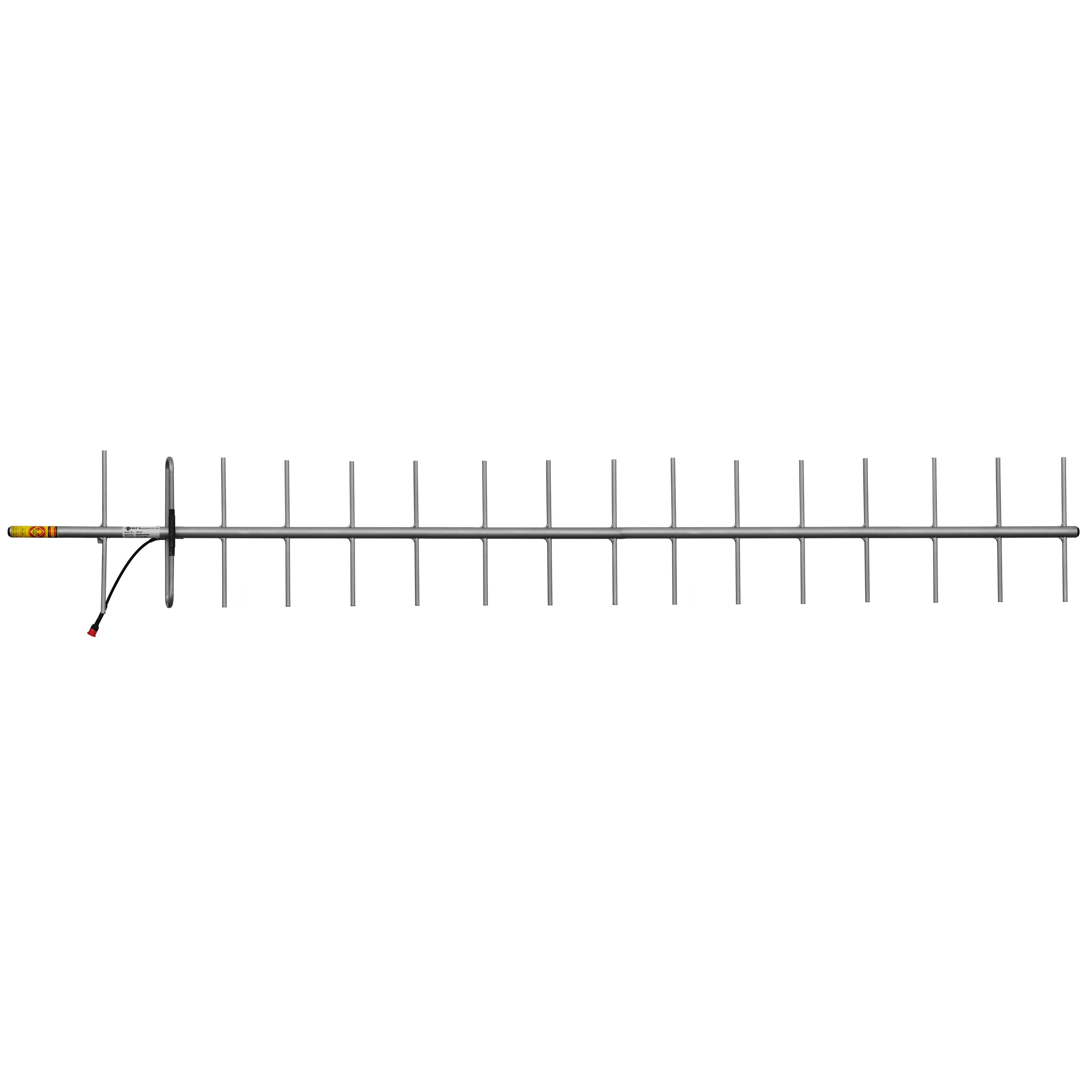

16 Element Stainless Steel Yagi 470-490MHz
The YBSS Series is a range of high gain stainless steel yagi antennas which provide excellent point to point communications in highly corrosive environments. YBSS Series antennas exhibit narrow beamwidths and high front to back ratios to help minimise potential interference to and from other radio systems.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 470 - 490
- VSWR
- <1.5:1
- POWER (W)
- 100
- TERMINATION
- N female with short 9008 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 36°
- VERTICAL BEAMWIDTH
- 34°
- MOUNTING
- 100mm x 25mm diam. stainless steel
- FRONT/BACK RATIO (DB)
- 18 (Typical)
- CONSTRUCTION
- All welded stainless steel construction with polished finish
- TUNED BANDWIDTH
- Full band
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Yagis
- APPLICATION
- Base Station Antenna
