YH06

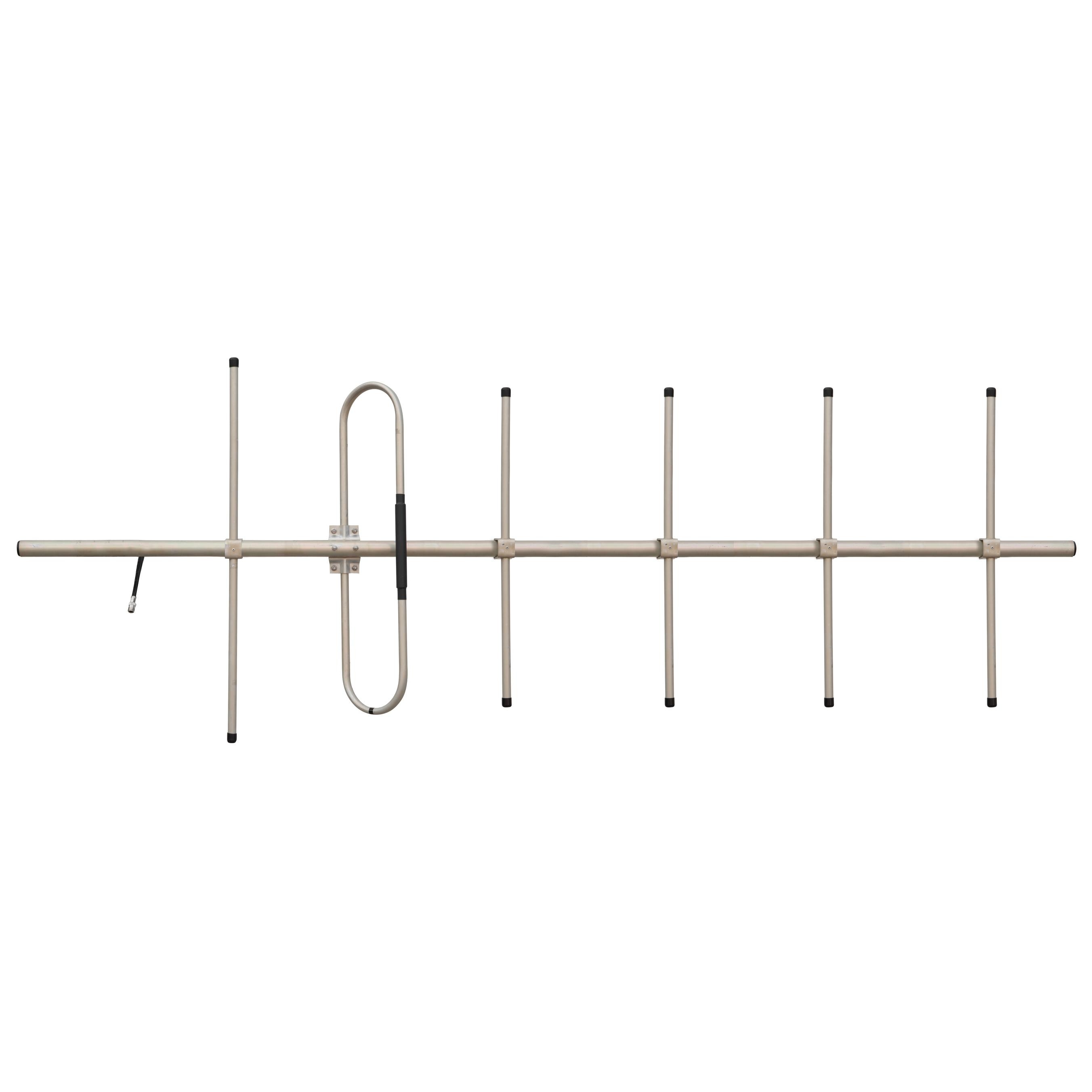

6 Element Yagi 100-250MHz Custom Tuned
The YL and YH Series yagi antennas are ideal in applications requiring directional gain. These yagis, with predictable beamwidths and consistently high front to back ratios are ideal for long or short haul links and other applications demanding specific radiation pattern control.
SPECIFICATIONS
- FREQUENCY (MHZ)
- 100 - 250
- VSWR
- <1.5:1
- POWER (W)
- 250
- TERMINATION
- N female with RG213 cable tail
- POLARISATION
- Vertical
- HORIZONTAL BEAMWIDTH
- 50°
- VERTICAL BEAMWIDTH
- 52°
- MOUNTING
- 400mm x 40mm diam. aluminium
- FRONT/BACK RATIO (DB)
- Typically 15
- CONSTRUCTION
- Thick walled aluminium boom and elements with alodined finish
- TUNED BANDWIDTH
- 8MHz
- CONFIGURATION
- SISO
- ANTENNA TYPE
- Yagis
- APPLICATION
- Base Station Antenna
